OMT 500 Low Speed High Torque motor, Geometric Displacement 523.6 cm3

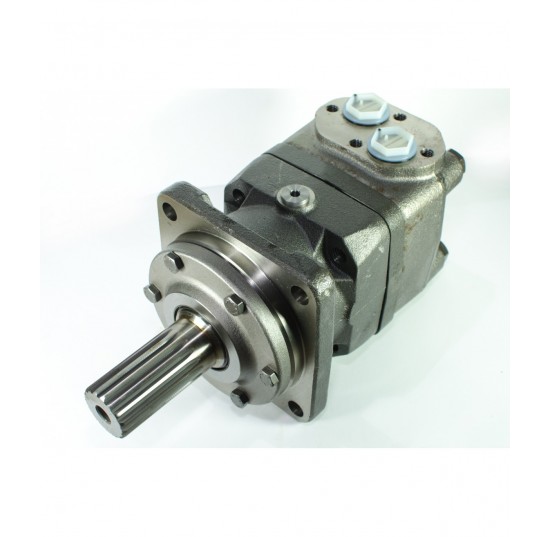

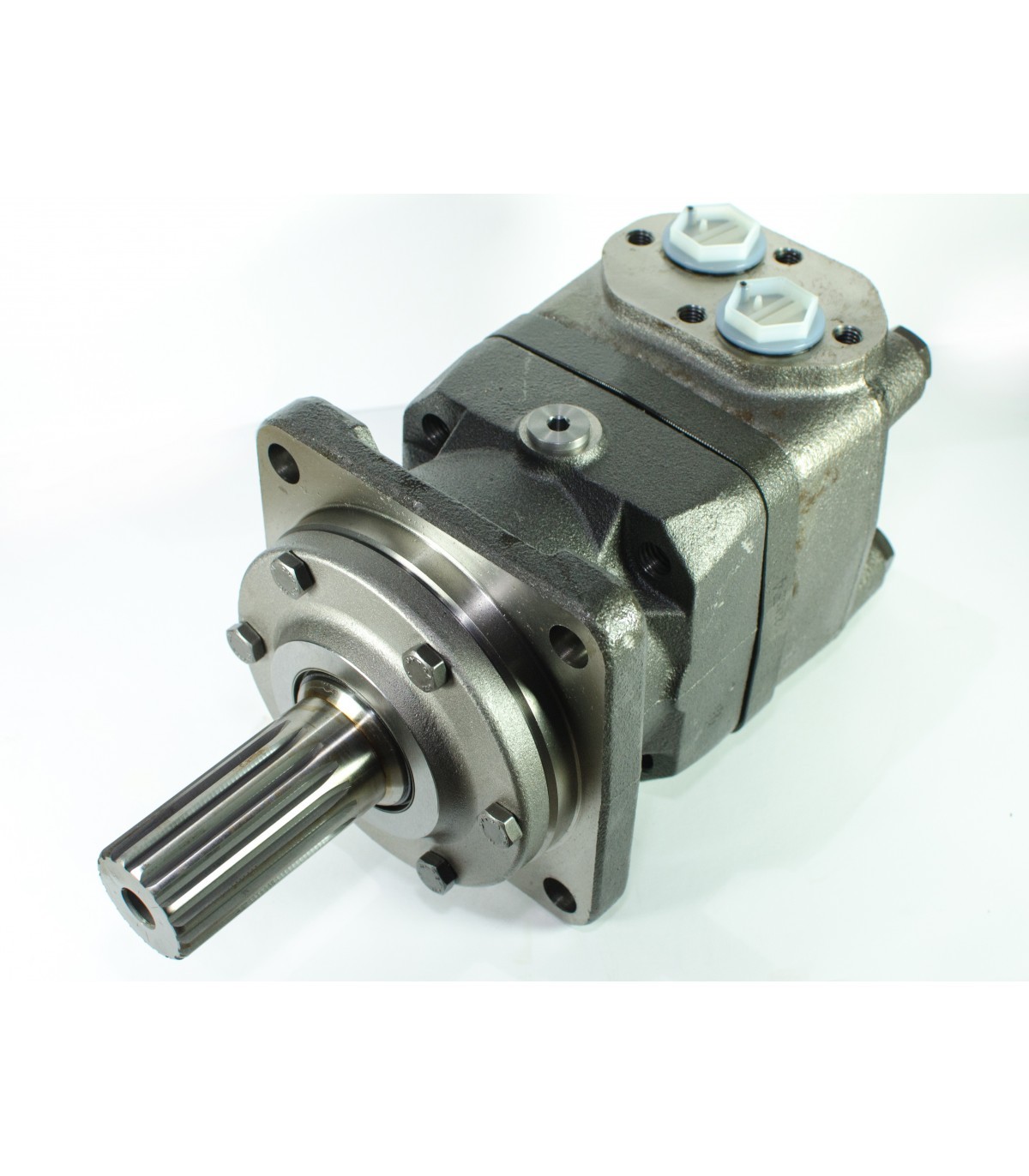

Orbital Motor OMT315 - 151B3009
Product Code:
151B3009
OMT 315 Low Speed High Torque motor, Geometric Displacement 326.3 cm3
Manufacturer:
SGD$1,362.80
(tax excl.)
OMS, OMT, and OMV are suitable for continuous operation under rough operating conditions: e.g. high pressure, thin oil, or frequent reversals. The tapered roller bearÂings on the output shaft make the motors suitable for absorbing static and dynamic radial loads. Besides the separately driven and hydraulically balanced disc valve, hydraulic and mechanical losses are reduced to a minimum. This gives the motors high efficiency - even at high pressures, and good starting characteristics.
If the application requires very smooth running at low speeds the choice of OMS, OMT, OMV or TMT is recommended
Splined 17T output shaft 1-1/2" with 3/4 BSPÂ port
Splined Shaft ANS B92.1 - 1970 standard
Accessories (not included):
1. Seal Kit 151B0113
151B3009
Data sheet
- Unit weight
- 22.0kg
- Packing size
- 44 x 24 x 17 cm
- Maximum Continuous Output Speed
- 380 rpm
- Maximum Intermittent Output Speed
- 460 rpm
- Maximum Continuous Output Torque
- 950Nm
- Maximum Intermittent Output Torque
- 1140Nm
