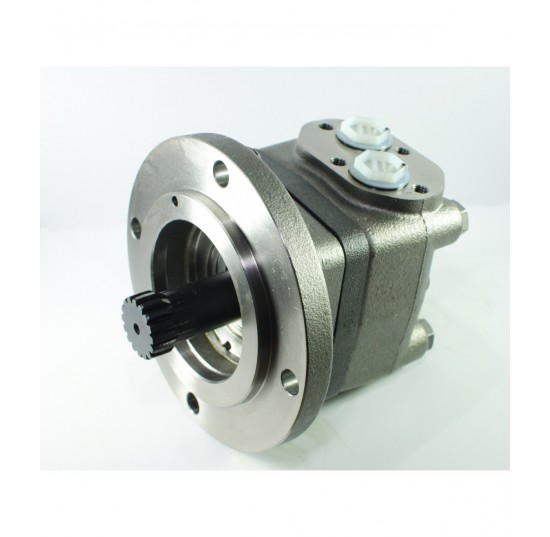

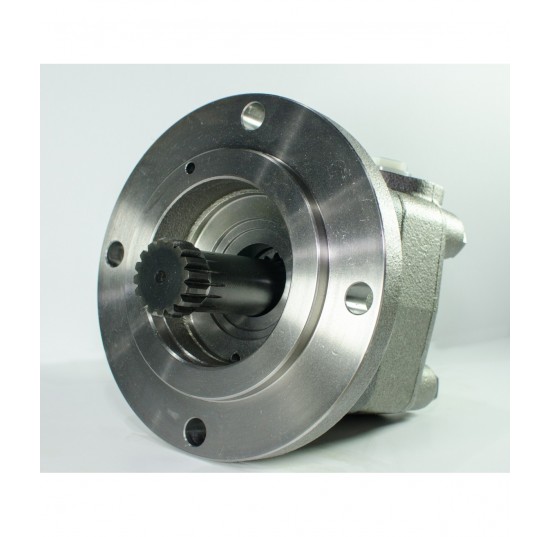

Orbital Motor OMTS160 - 151B3036

151B3036

OMTS 160 Low Speed High Torque motor, Geometric Displacement 161.1 cm3

SGD$ 786.18

Qty

OMS, OMT, and OMV are suitable for continuous operation under rough operating conditions: e.g. high pressure, thin oil, or frequent reversals. The tapered roller bear­ings on the output shaft make the motors suitable for absorbing static and dynamic radial loads. Besides the separately driven and hydraulically balanced disc valve, hydraulic and mechanical losses are reduced to a minimum. This gives the motors high efficiency - even at high pressures, and good starting characteristics.

If the application requires very smooth running at low speeds the choice of OMS, OMT, OMV or TMT is recommended
No output shaft with 3/4 BSP port

Accessories (Included): 151B1040
1. Seal Kit 151B0114 (not included)

Unit weight 15.5kg
Packing size 44 x 24 x 17 cm
Maximum Continuous Output Speed 625 rpm
Maximum Intermittent Output Speed 780 rpm
Maximum Continuous Output Torque 470Nm
Maximum Intermittent Output Torque 560Nm
