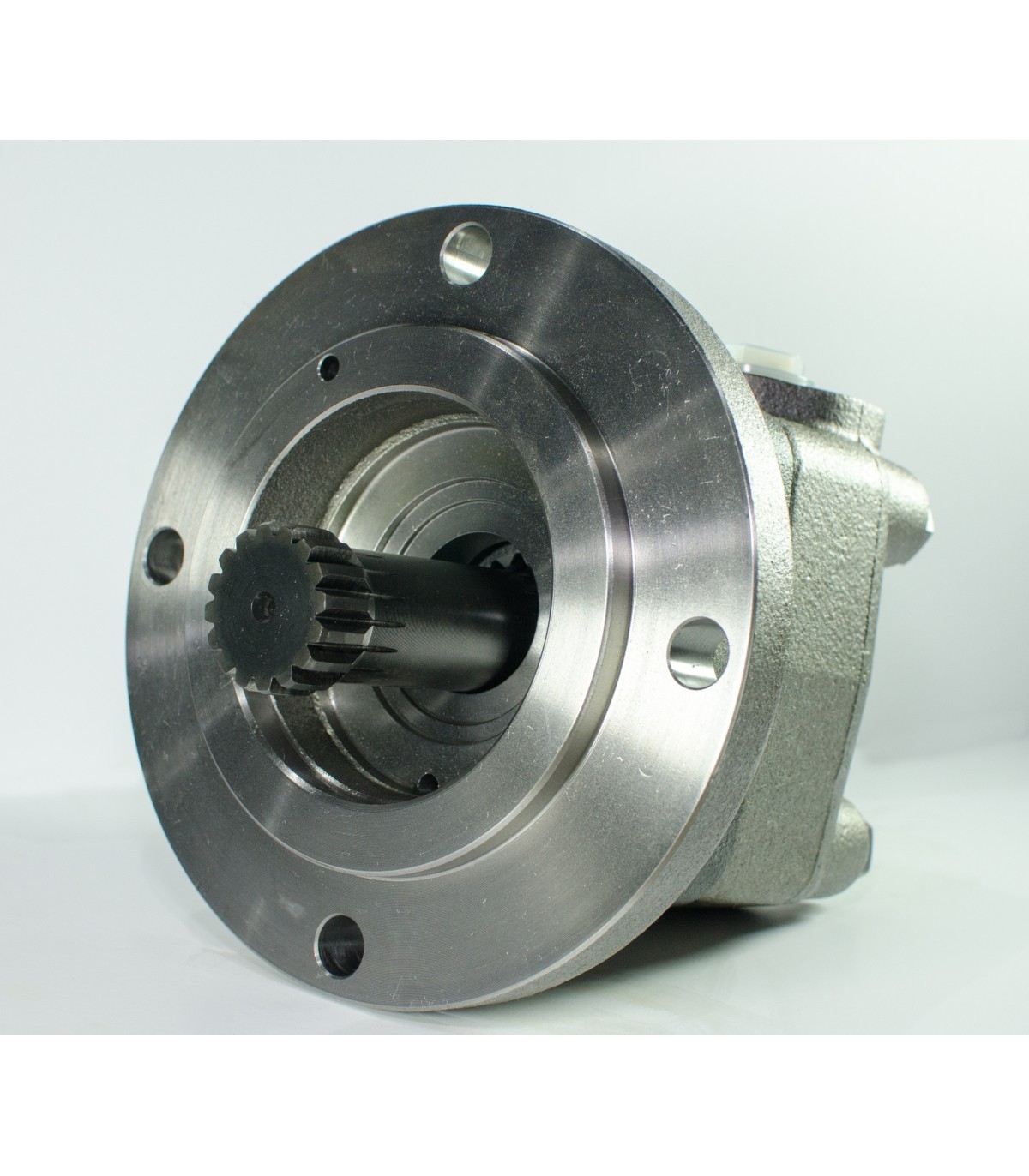

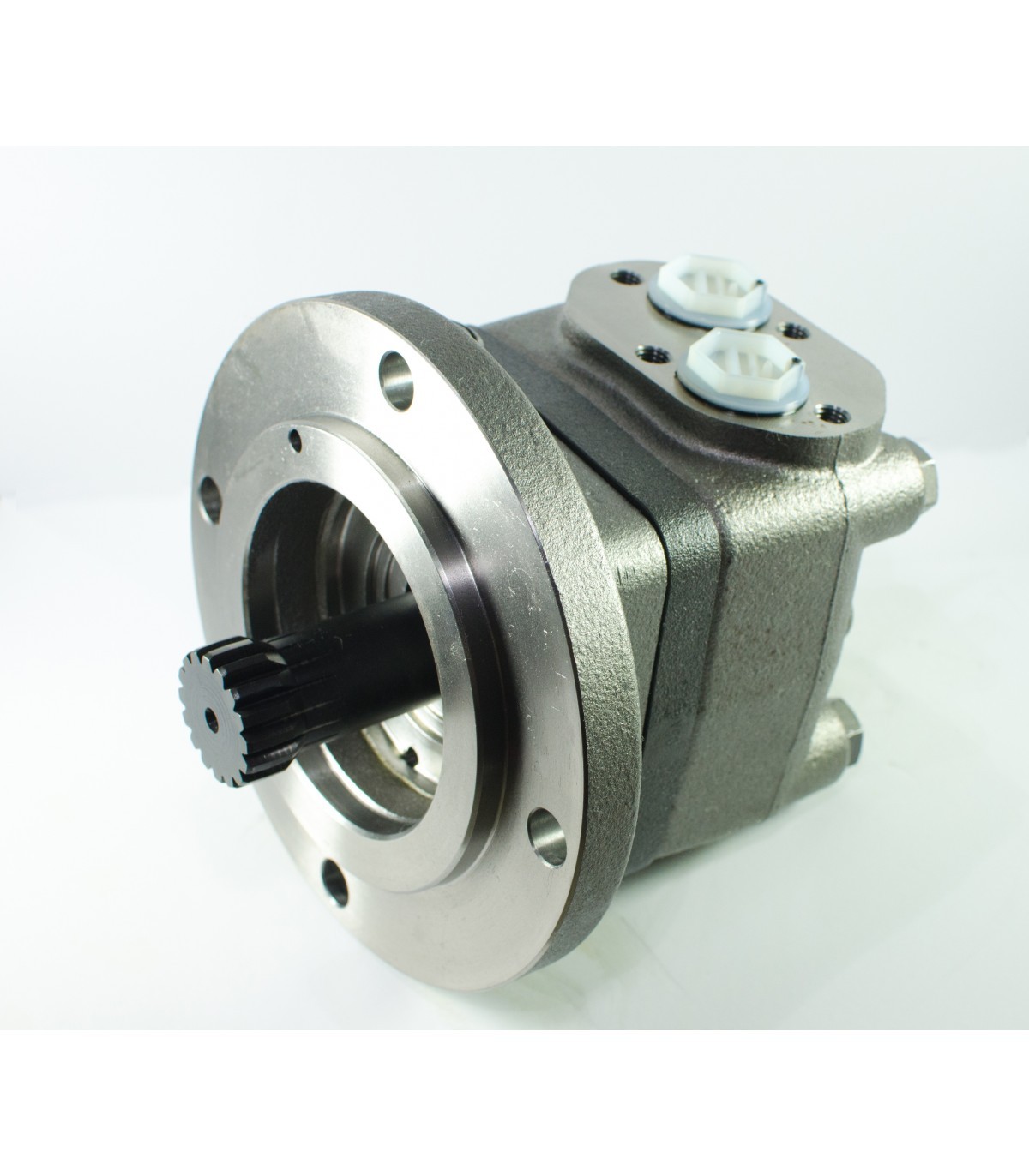

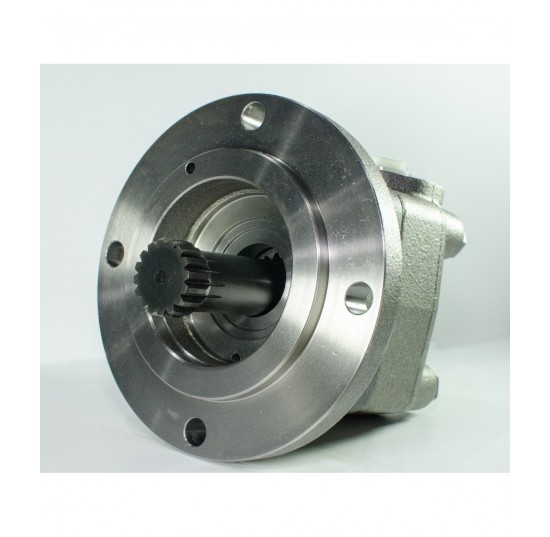

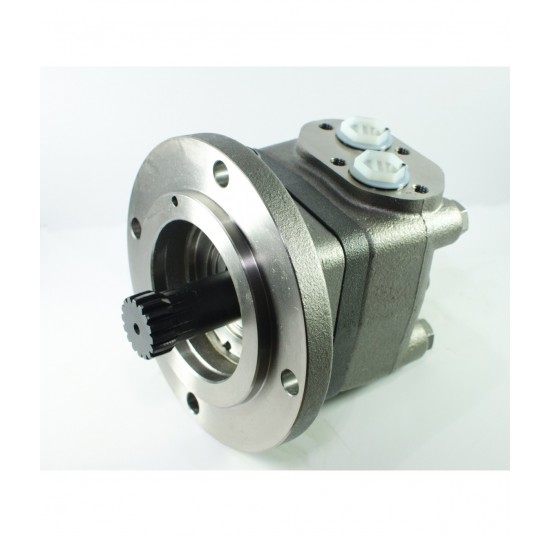

Orbital Motor OMTS315 - 151B3039

151B3039

OMTS 315 Low Speed High Torque motor, Geometric Displacement 326.3 cm3

SGD$ 1,017.70

Qty

OMS, OMT, and OMV are suitable for continuous operation under rough operating conditions: e.g. high pressure, thin oil, or frequent reversals. The tapered roller bear­ings on the output shaft make the motors suitable for absorbing static and dynamic radial loads. Besides the separately driven and hydraulically balanced disc valve, hydraulic and mechanical losses are reduced to a minimum. This gives the motors high efficiency - even at high pressures, and good starting characteristics.

If the application requires very smooth running at low speeds the choice of OMS, OMT, OMV or TMT is recommended
No output shaft with 3/4 BSP port

Accessories (Included): 151B1040
1. Seal Kit 151B0114 (Not included)

Unit weight 17.0kg
Packing size 44 x 24 x 17 cm
Maximum Continuous Output Speed 380 rpm
Maximum Intermittent Output Speed 460 rpm
Maximum Continuous Output Torque 950Nm
Maximum Intermittent Output Torque 1140Nm
