OMT 500 Low Speed High Torque motor, Geometric Displacement 523.6 cm3

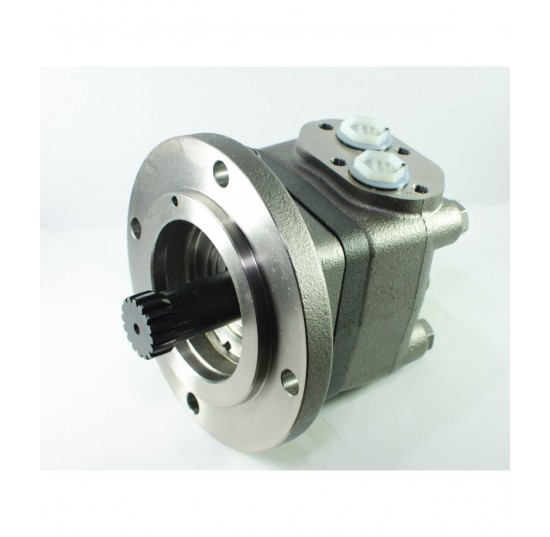

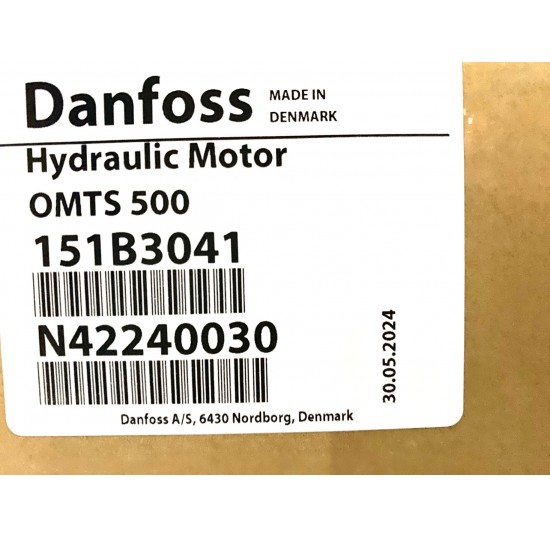

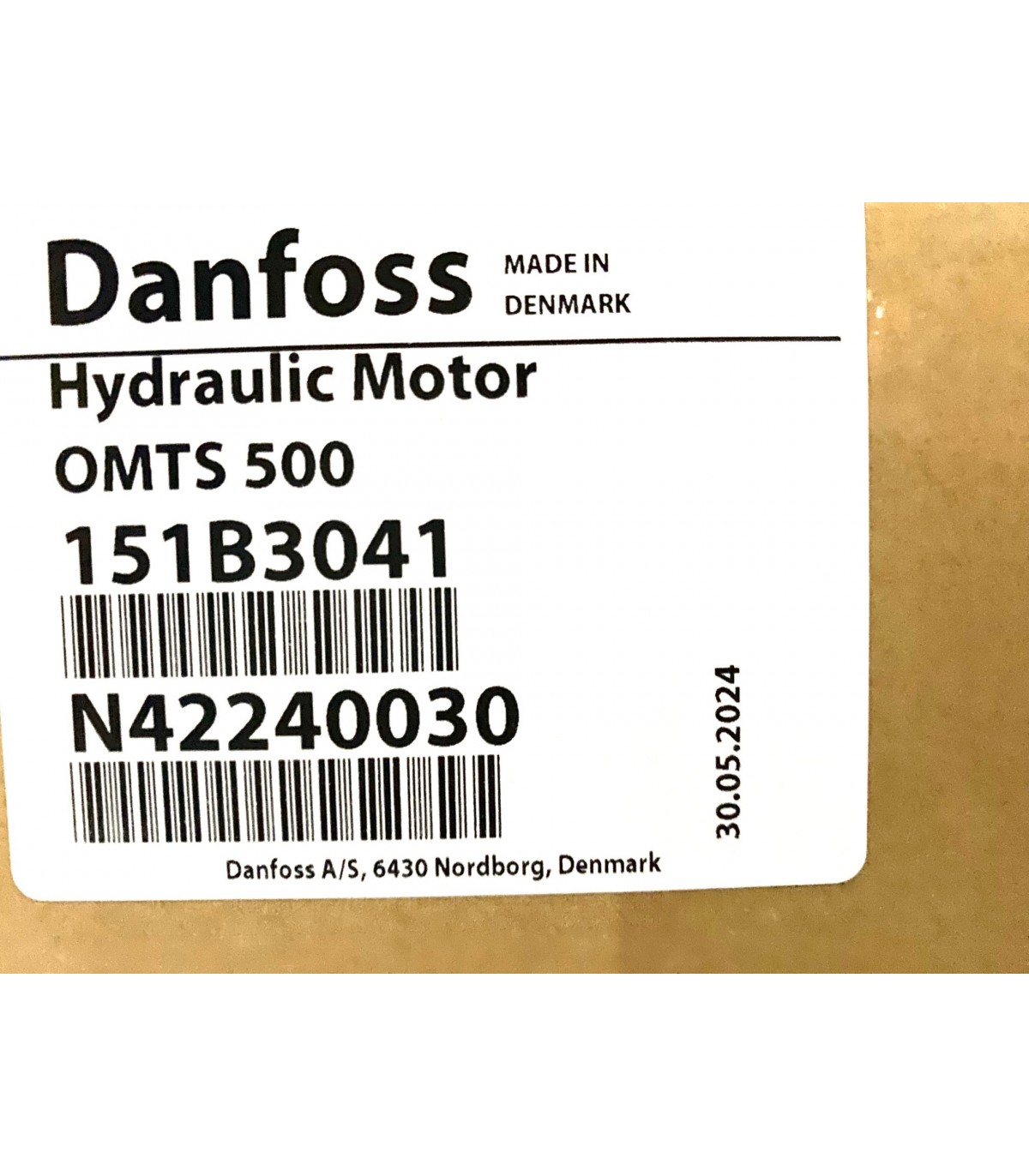

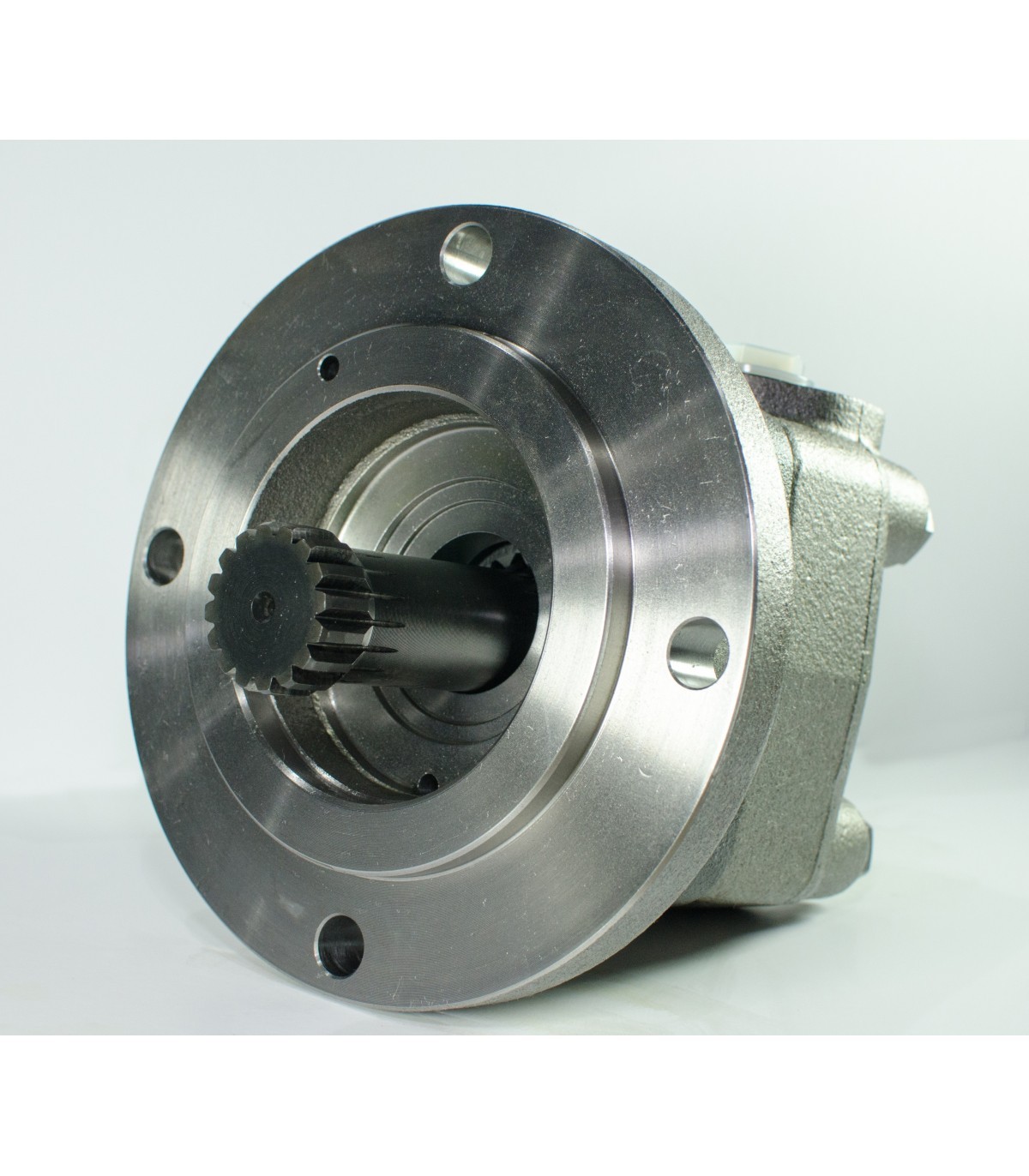

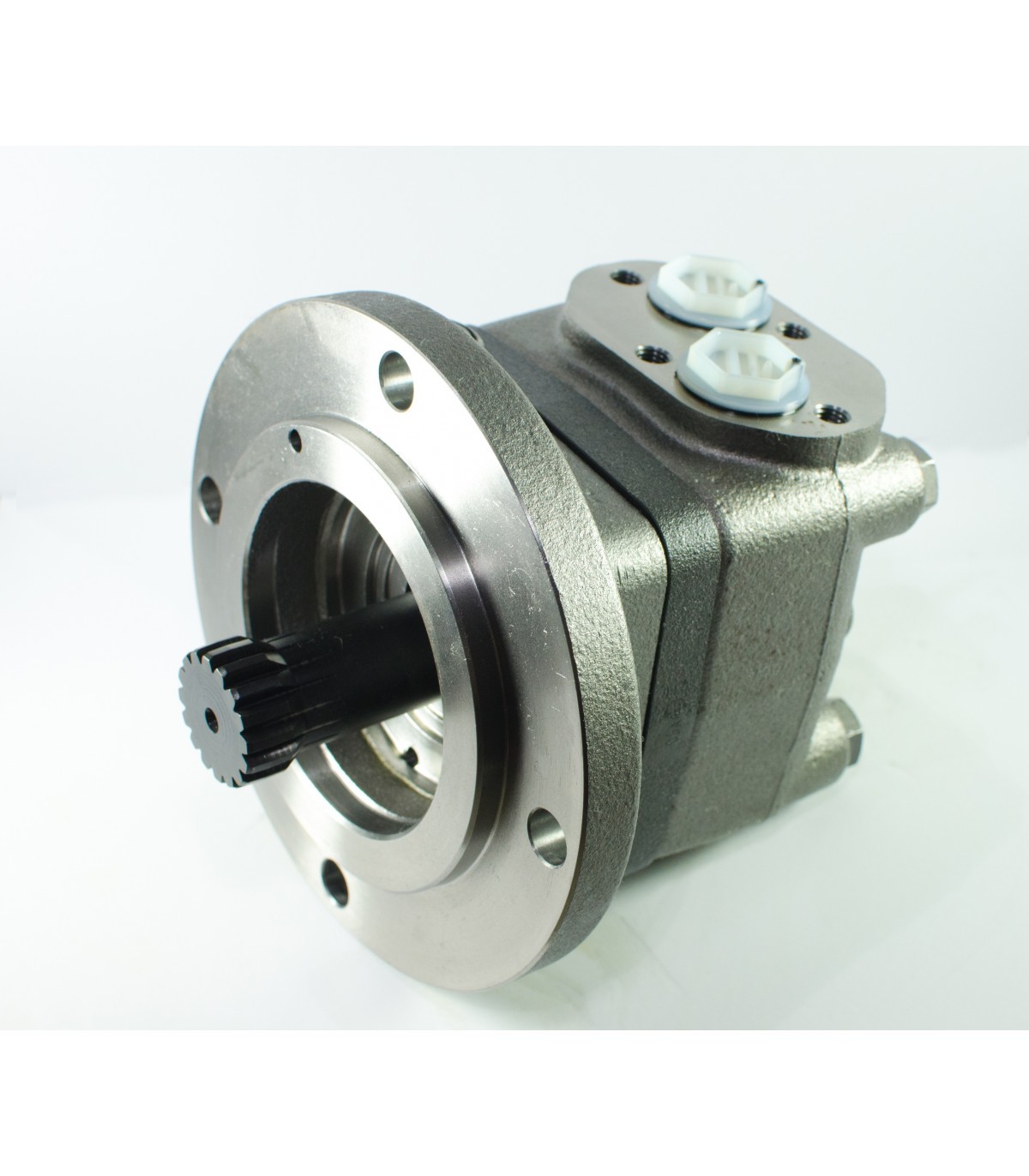

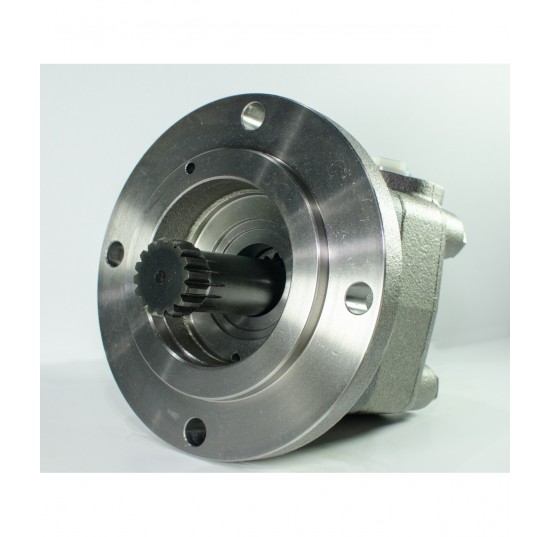

Orbital Motor OMTS500 - 151B3041
Product Code:
151B3041
OMTS 500 Low Speed High Torque motor, Geometric Displacement 523.6 cm3
Manufacturer:
SGD$1,386.39
(tax excl.)
OMS, OMT, and OMV are suitable for continuous operation under rough operating conditions: e.g. high pressure, thin oil, or frequent reversals. The tapered roller bearÂings on the output shaft make the motors suitable for absorbing static and dynamic radial loads. Besides the separately driven and hydraulically balanced disc valve, hydraulic and mechanical losses are reduced to a minimum. This gives the motors high efficiency - even at high pressures, and good starting characteristics.
If the application requires very smooth running at low speeds the choice of OMS, OMT, OMV or TMT is recommended
No output shaft with 3/4 BSP port
Accessories (Included): 151B1040
1. Seal Kit 151B0114Â (Not included)
151B3041
Data sheet
- Unit weight
- 19.0kg
- Packing size
- 44 x 24 x 17 cm
- Maximum Continuous Output Speed
- 240 rpm
- Maximum Intermittent Output Speed
- 285 rpm
- Maximum Continuous Output Torque
- 1220Nm
- Maximum Intermittent Output Torque
- 1370Nm
