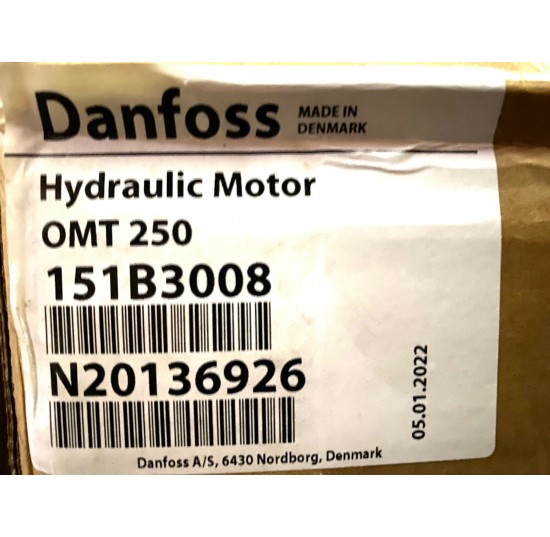

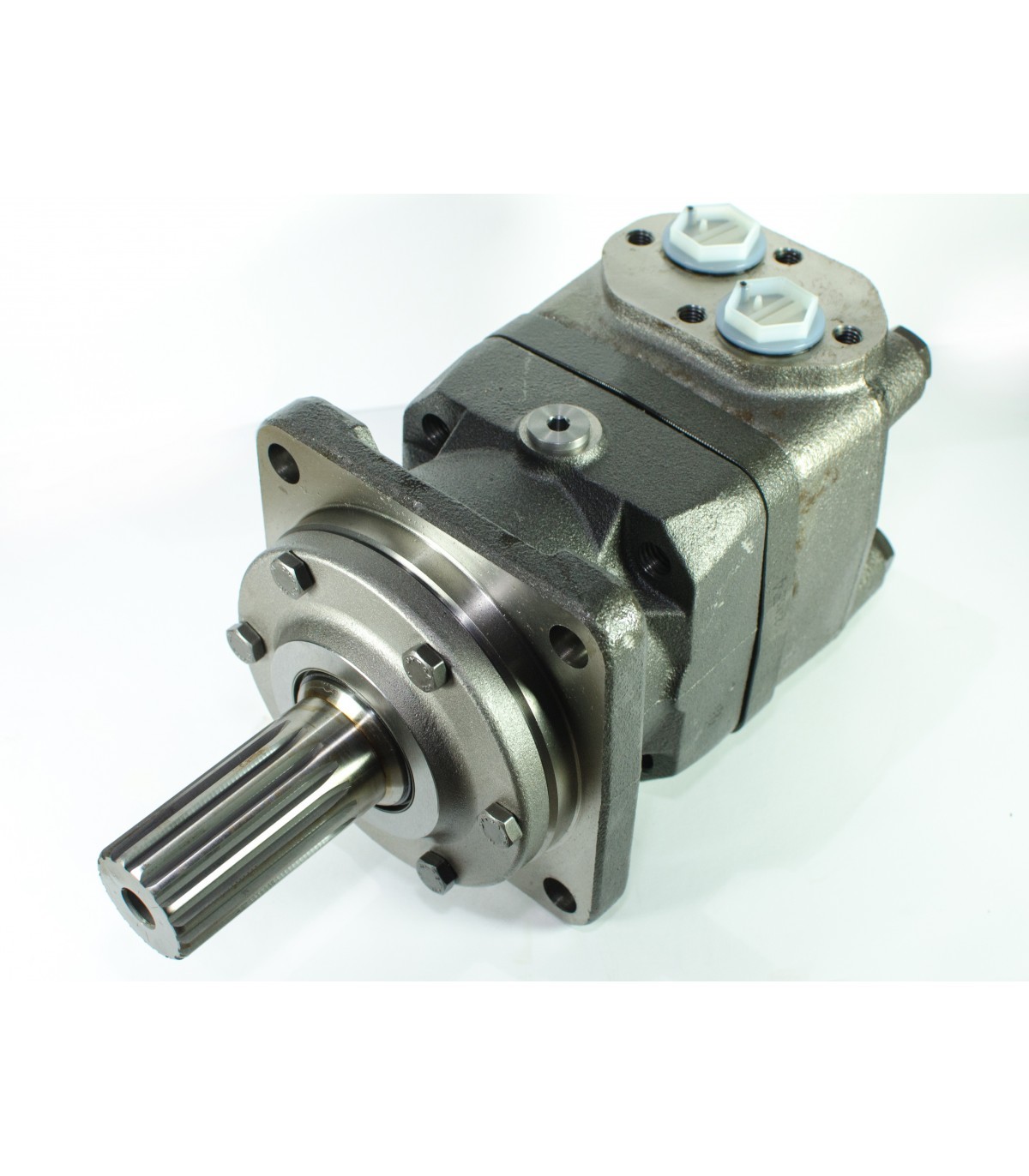

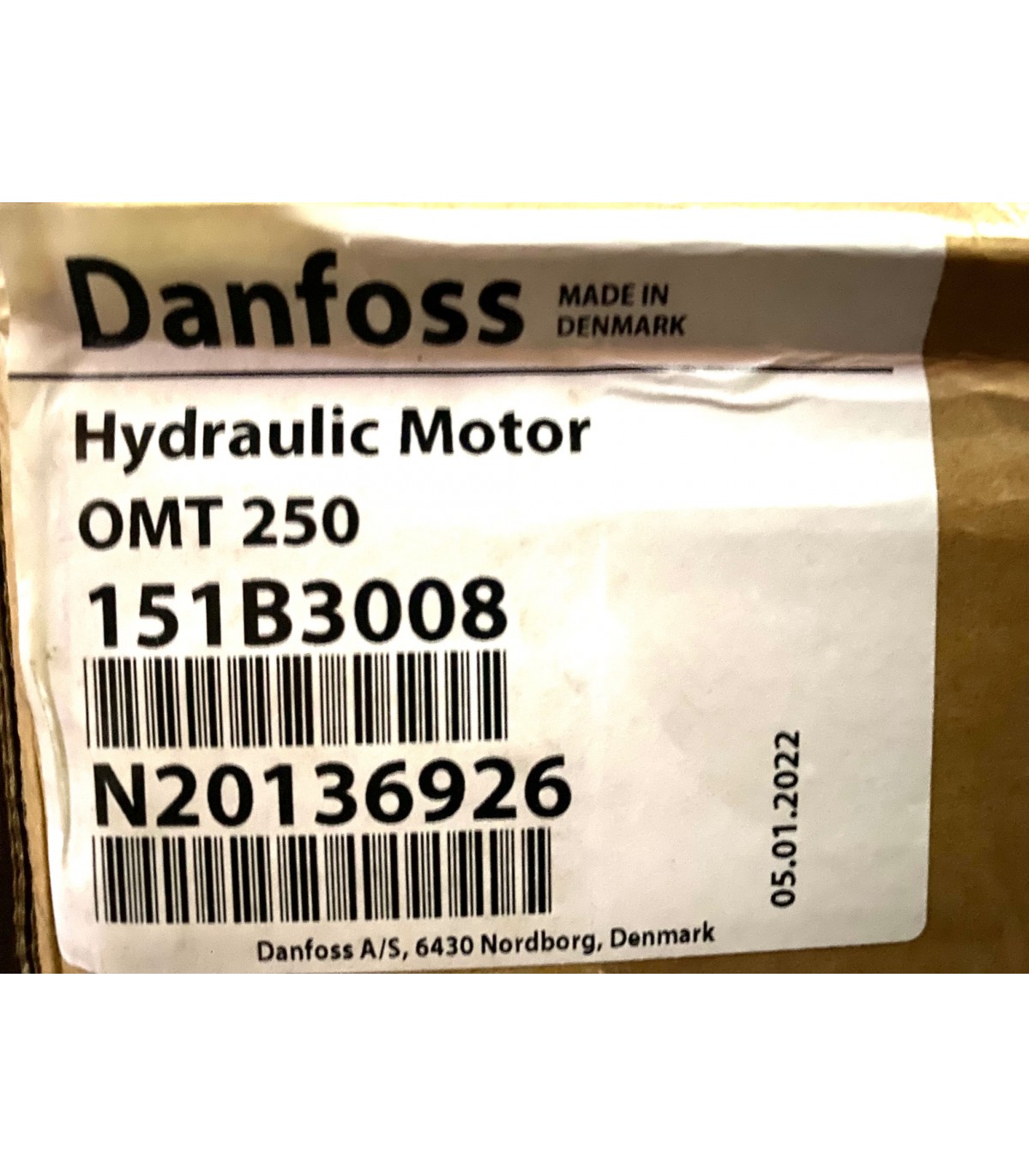

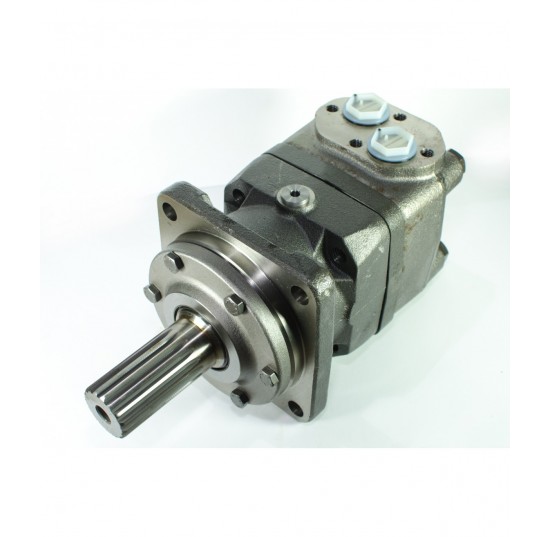

Orbital Motor OMT250 - 151B3008


OMT 250 Low Speed High Torque motor, Geometric Displacement 251.8 cm3

SGD$ 1,132.64


OMS, OMT, and OMV are suitable for continuous operation under rough operating conditions: e.g. high pressure, thin oil, or frequent reversals. The tapered roller bear­ings on the output shaft make the motors suitable for absorbing static and dynamic radial loads. Besides the separately driven and hydraulically balanced disc valve, hydraulic and mechanical losses are reduced to a minimum. This gives the motors high efficiency - even at high pressures, and good starting characteristics.

If the application requires very smooth running at low speeds the choice of OMS, OMT, OMV or TMT is recommended

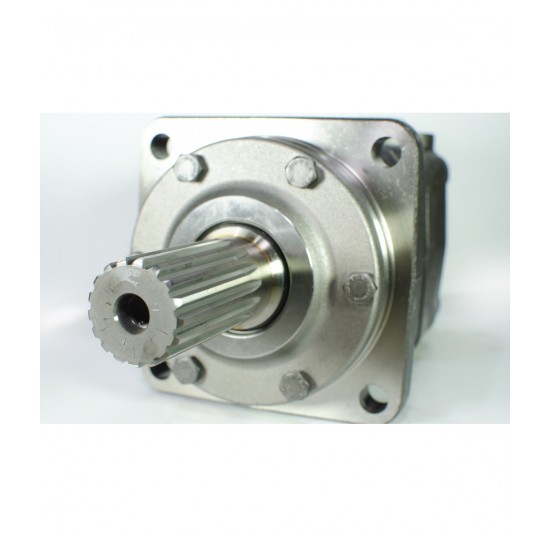

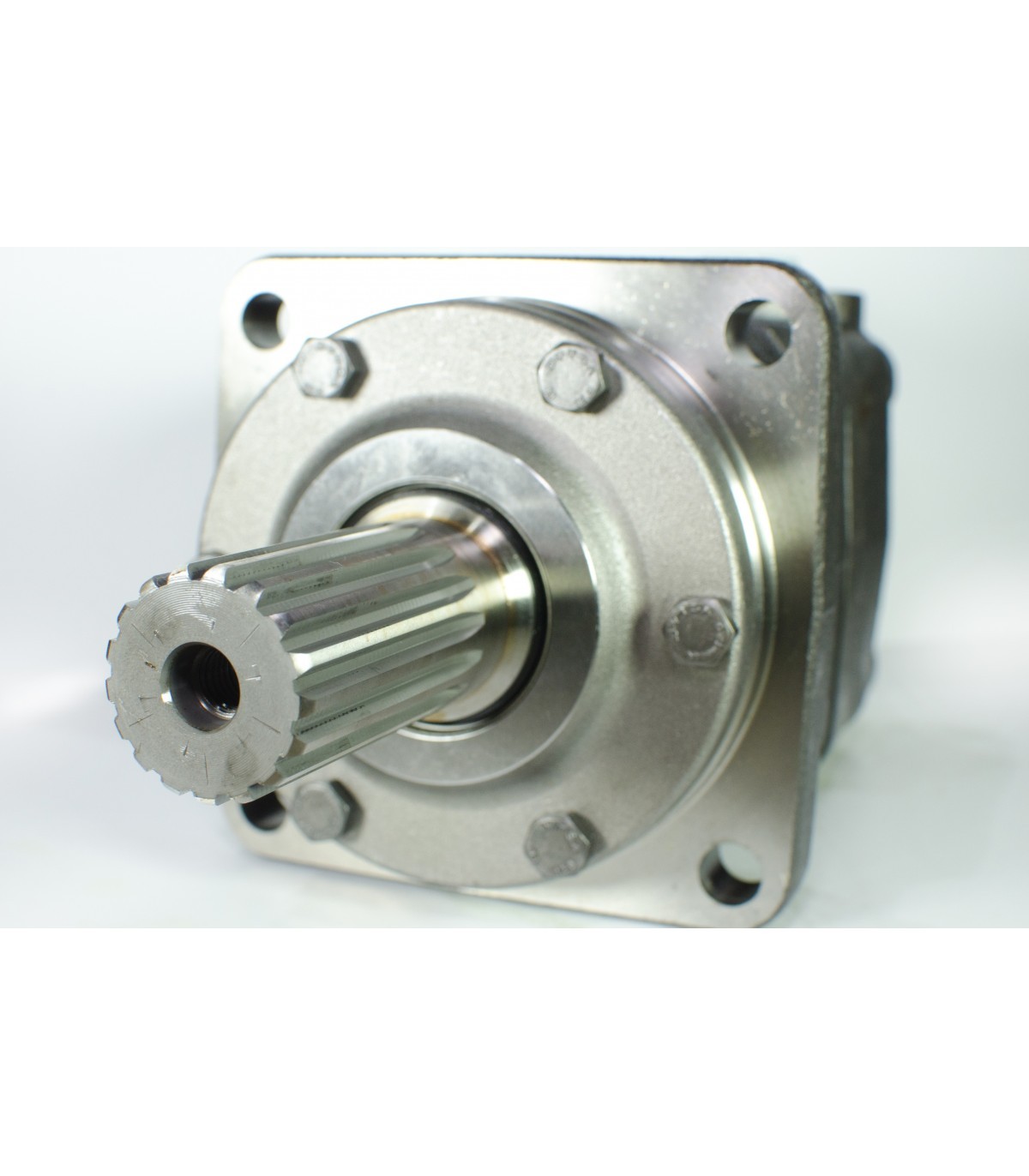

Splined 17T output shaft 1-1/2" with 3/4 BSP port
Splined Shaft ANS B92.1 - 1970 standard

Accessories (not included):
1. Seal Kit 151B0113

Unit weight 21.0kg
Packing size 44 x 24 x 17 cm
Maximum Continuous Output Speed 500 rpm
Maximum Intermittent Output Speed 600 rpm
Maximum Continuous Output Torque 730Nm
Maximum Intermittent Output Torque 880Nm
