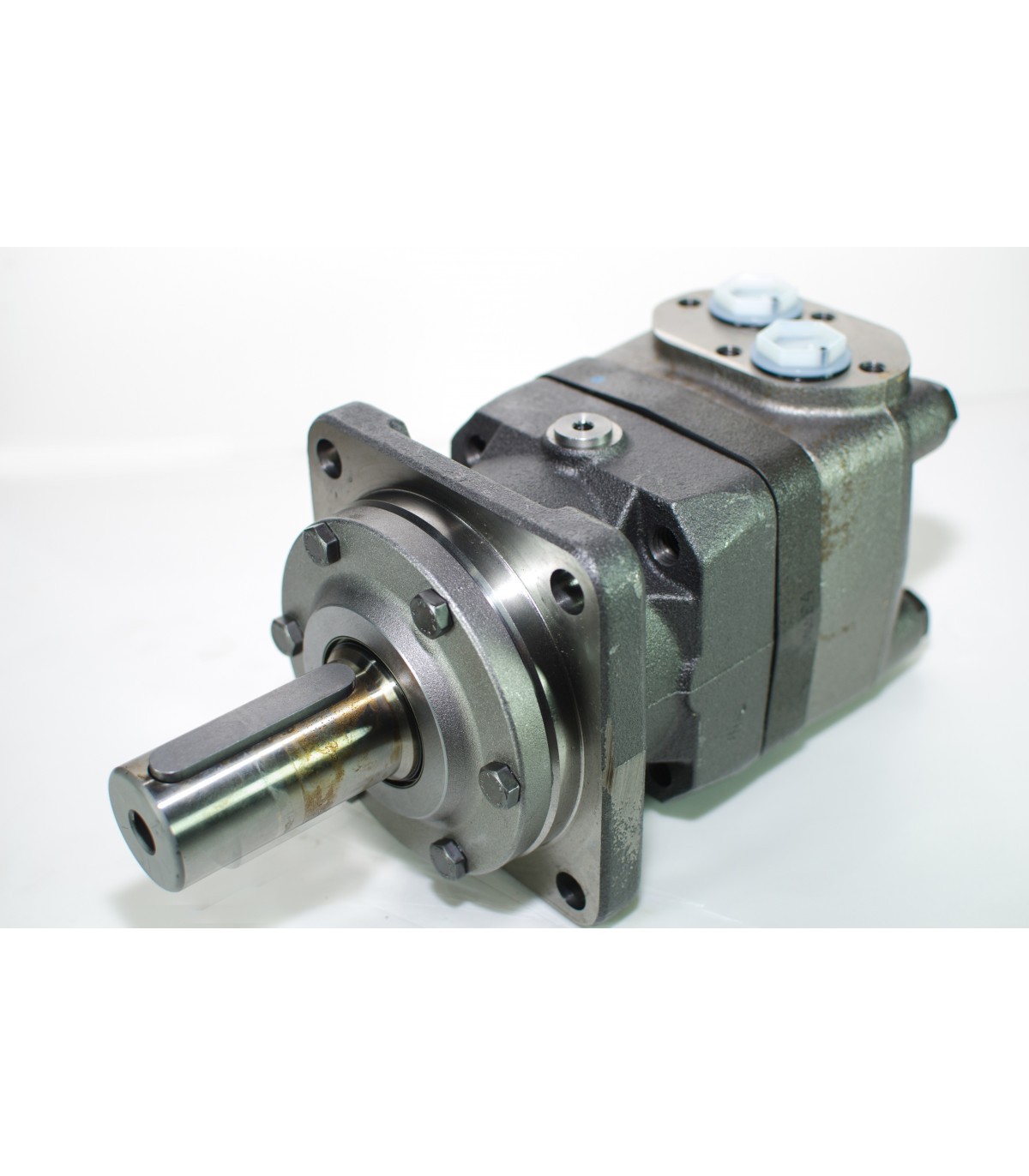

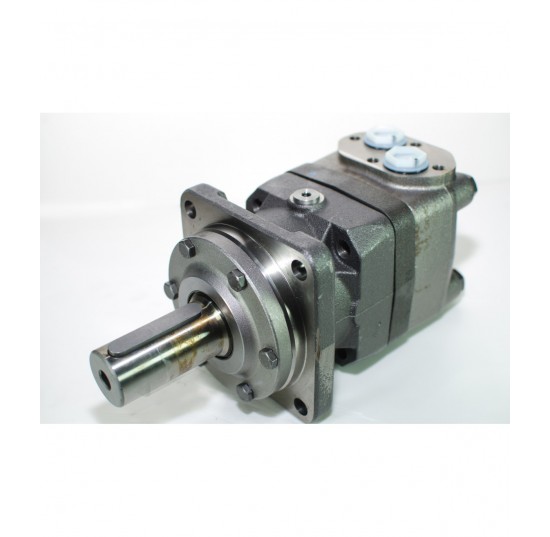

Orbital Motor OMT160 - 151B3000


OMT 160 Low Speed High Torque motor, Geometric Displacement 161.1 cm3

SGD$ 987.72


OMS, OMT, and OMV are suitable for continuous operation under rough operating conditions: e.g. high pressure, thin oil, or frequent reversals. The tapered roller bear­ings on the output shaft make the motors suitable for absorbing static and dynamic radial loads. Besides the separately driven and hydraulically balanced disc valve, hydraulic and mechanical losses are reduced to a minimum. This gives the motors high efficiency - even at high pressures, and good starting characteristics.

If the application requires very smooth running at low speeds the choice of OMS, OMT, OMV or TMT is recommended

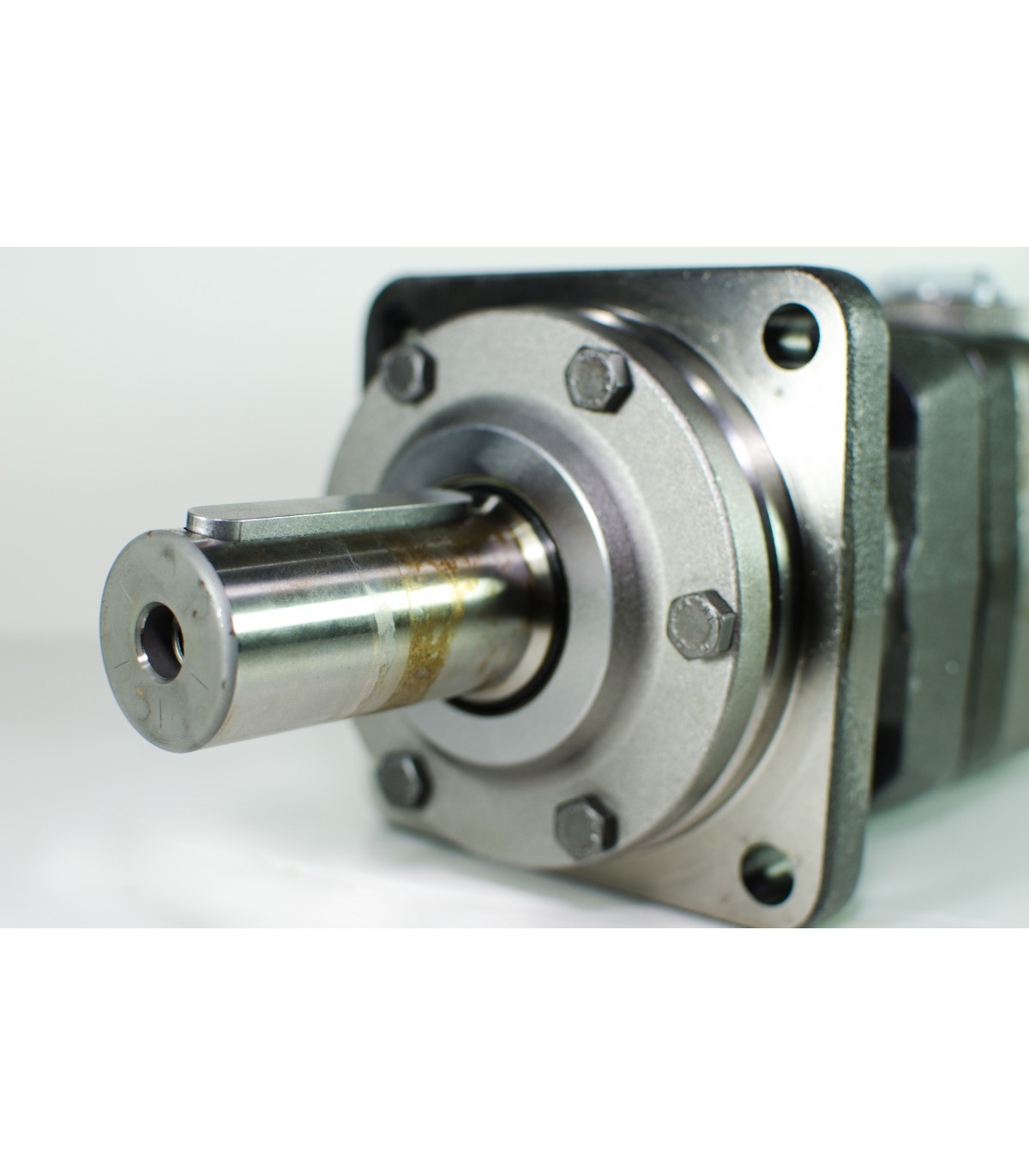

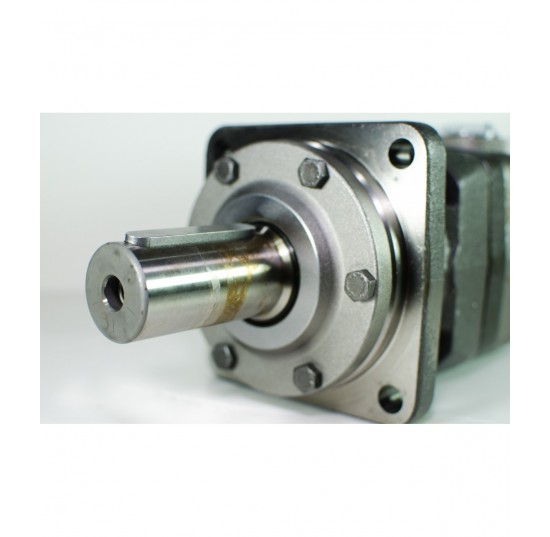

Cylindrical output shaft 40mm with 3/4 BSP port
Parallel key A12 x 8 x 70mm (DIN 6885) 682L8014

Accessories (not included):
1. Seal Kit 151B0113

Unit weight 20.0kg
Packing size 44 x 24 x 17 cm
Maximum Continuous Output Speed 625 rpm
Maximum Intermittent Output Speed 780 rpm
Maximum Continuous Output Torque 470Nm
Maximum Intermittent Output Torque 560Nm
