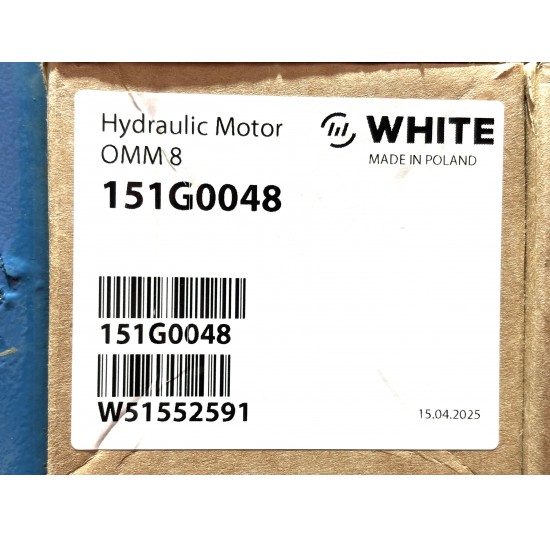

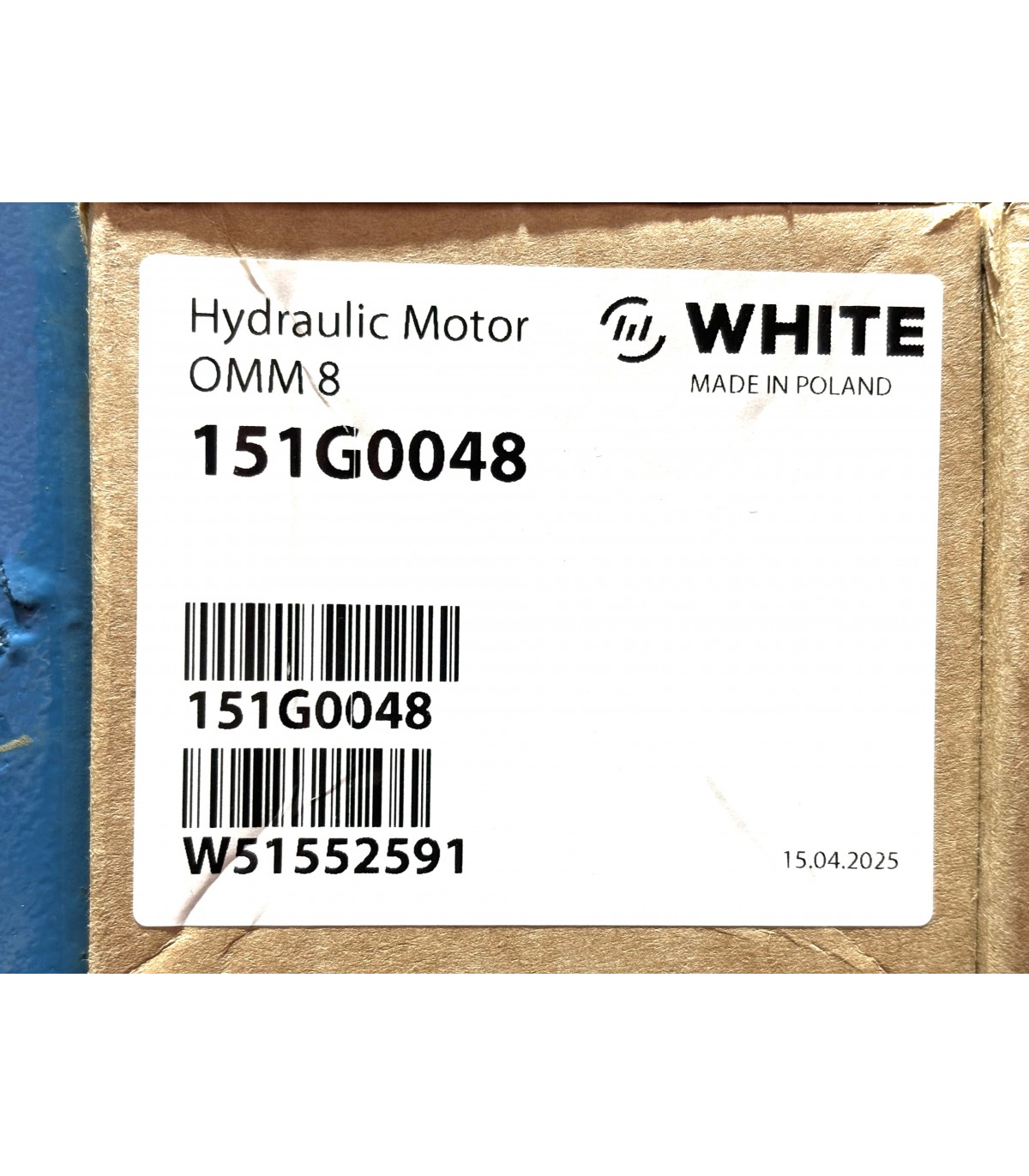

Orbital Motor OMM8 - 151G0048

151G0048

  • OMM 8 Low Speed High Torque motor, Geometric Displacement 8.2 cm³
  • Manufacturer : Danfoss

SGD$ 274.90

Qty

Specifications
Suitable for applications where high speed is required more than the torque, like sweepers or underwater hull cleaning
Cylindrical output shaft 5/8" with 9/16-18UNF end ports
Parallel key 3/16 x 3/16 x 3/4" B.S.46 682L8031

Accessories (not included):
1. Mounting Flange 151G0211
2. Seal Kit 151G0202

Unit weight 1.9kg
Packing size 10 x 10 x 20 cm
Maximum Continuous Output Speed 1950 rpm
Maximum Intermittent Output Speed 2450 rpm
Maximum Continuous Output Torque 11Nm
Maximum Intermittent Output Torque 15Nm
