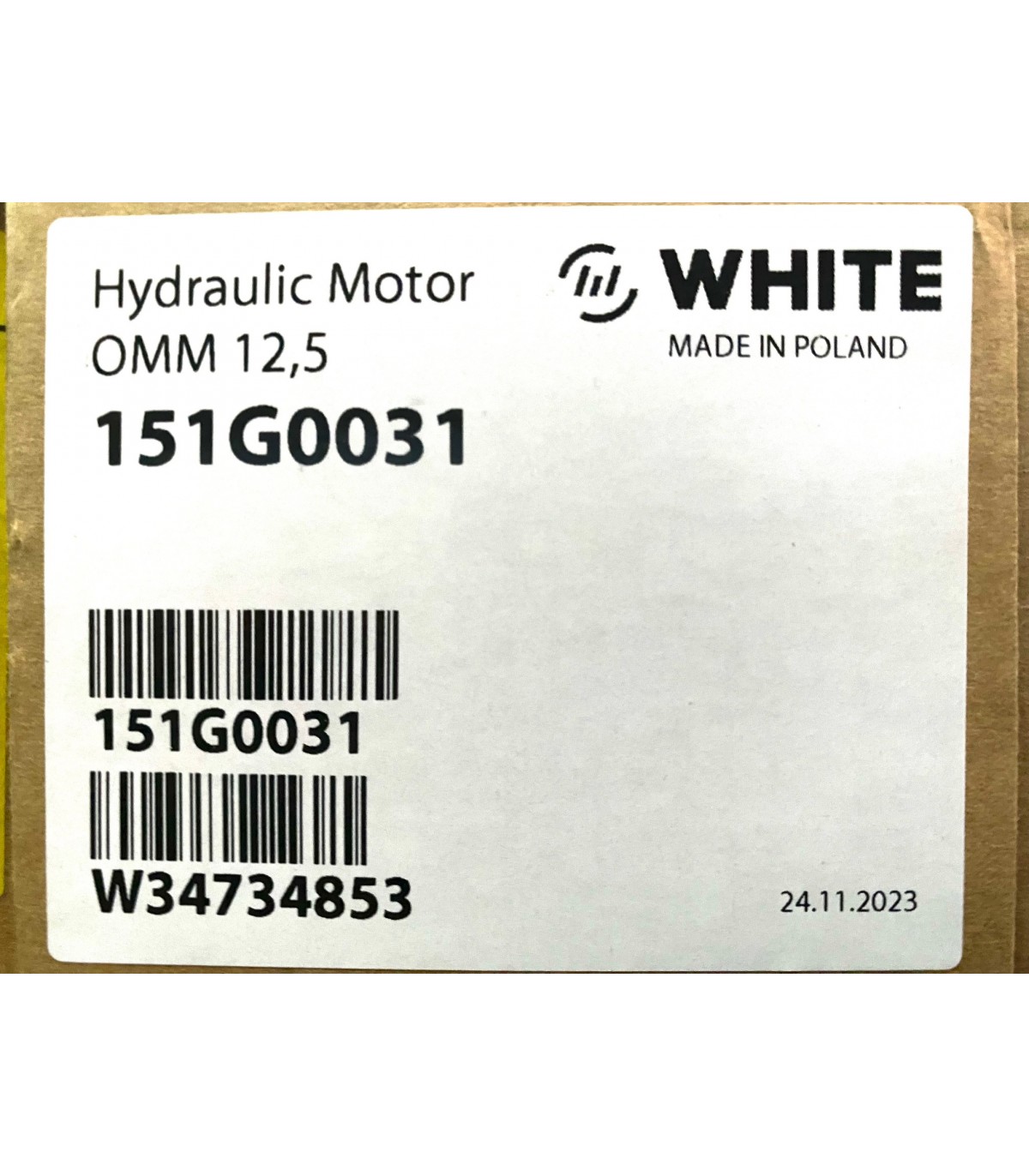

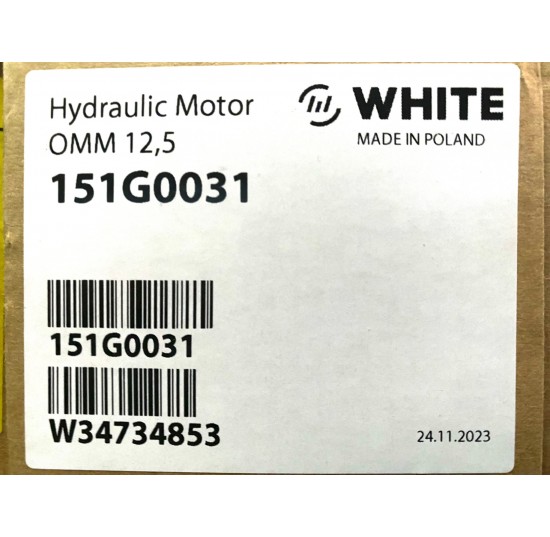

Orbital Motor OMM12.5 - 151G0031

151G0031

  • OMM 12.5 Low Speed High Torque motor, Geometric Displacement 12.9 cm³
  • Manufacturer : Danfoss

SGD$ 279.52

Qty

Specifications
Suitable for applications where high speed is required more than the torque, like sweepers or underwater hull cleaning
Cylindrical output shaft 5/8" with 9/16-18UNF end ports
Parallel key 3/16 x 3/16 x 3/4" B.S.46 682L8031

Accessories (not included):
1. Mounting Flange 151G0211
2. Seal Kit 151G0202

Unit weight 2.0kg
Packing size 10 x 10 x 20 cm
Maximum Continuous Output Speed 1550 rpm
Maximum Intermittent Output Speed 1940 rpm
Maximum Continuous Output Torque 16Nm
Maximum Intermittent Output Torque 23Nm
