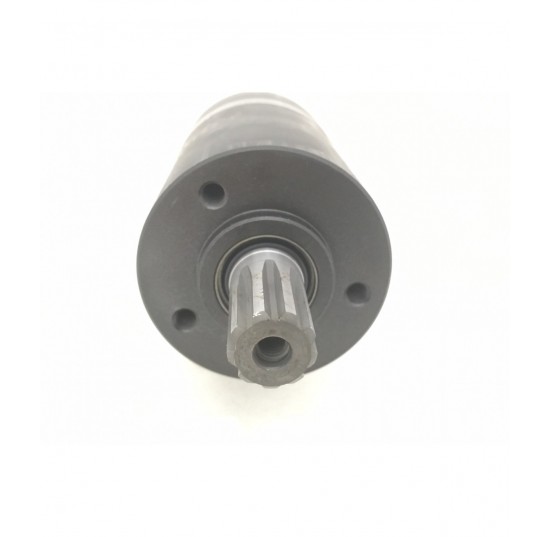

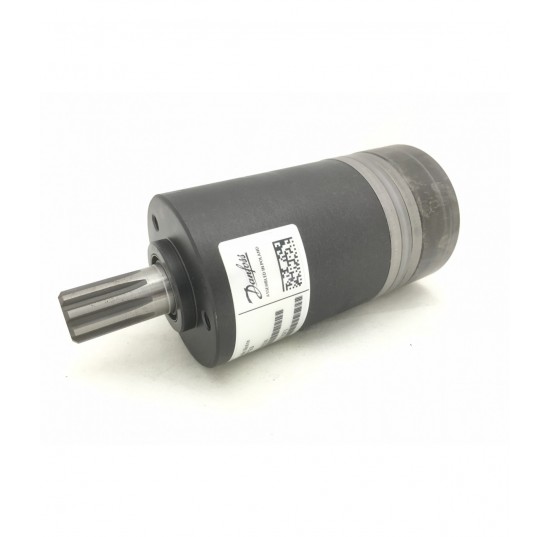

Orbital Motor OMM12.5 - 151G0024

151G0024

  • OMM 12.5 Low Speed High Torque motor, Geometric Displacement 12.9 cm³

SGD$ 288.76

Qty

Specifications
Suitable for applications where high speed is required more than the torque, like sweepers or underwater hull cleaning

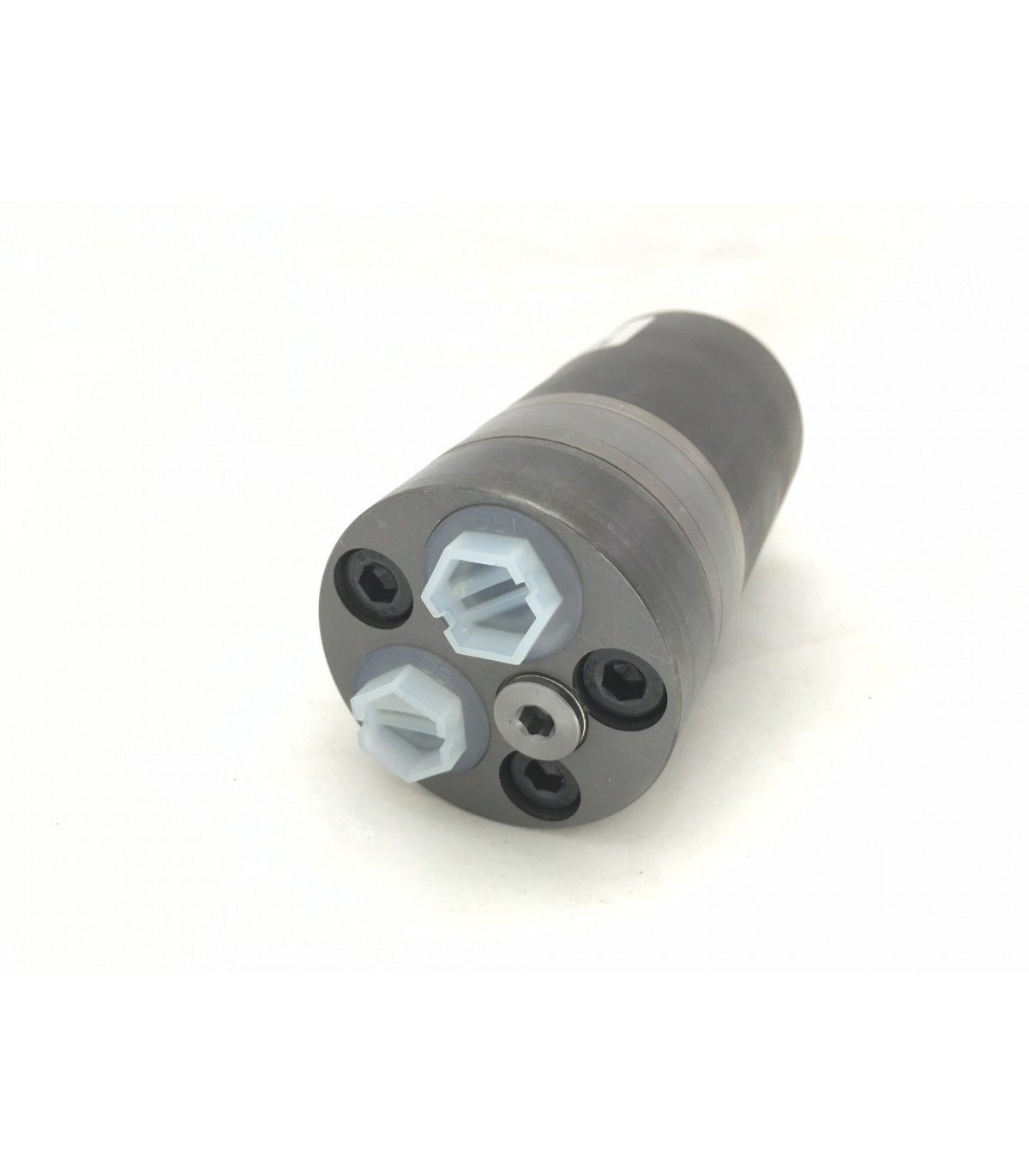

Splined 9T output shaft with 3/8 BSP end ports
Splined shaft B17 x 14, Din 5482

Accessories (not included):
1. Mounting Flange 151G0211
2. Seal Kit 151G0202

Unit weight 2.0kg
Packing size 10 x 10 x 20 cm
Maximum Continuous Output Speed 1550 rpm
Maximum Intermittent Output Speed 16Nm
Maximum Continuous Output Torque 1940 rpm
Maximum Intermittent Output Torque 23Nm
