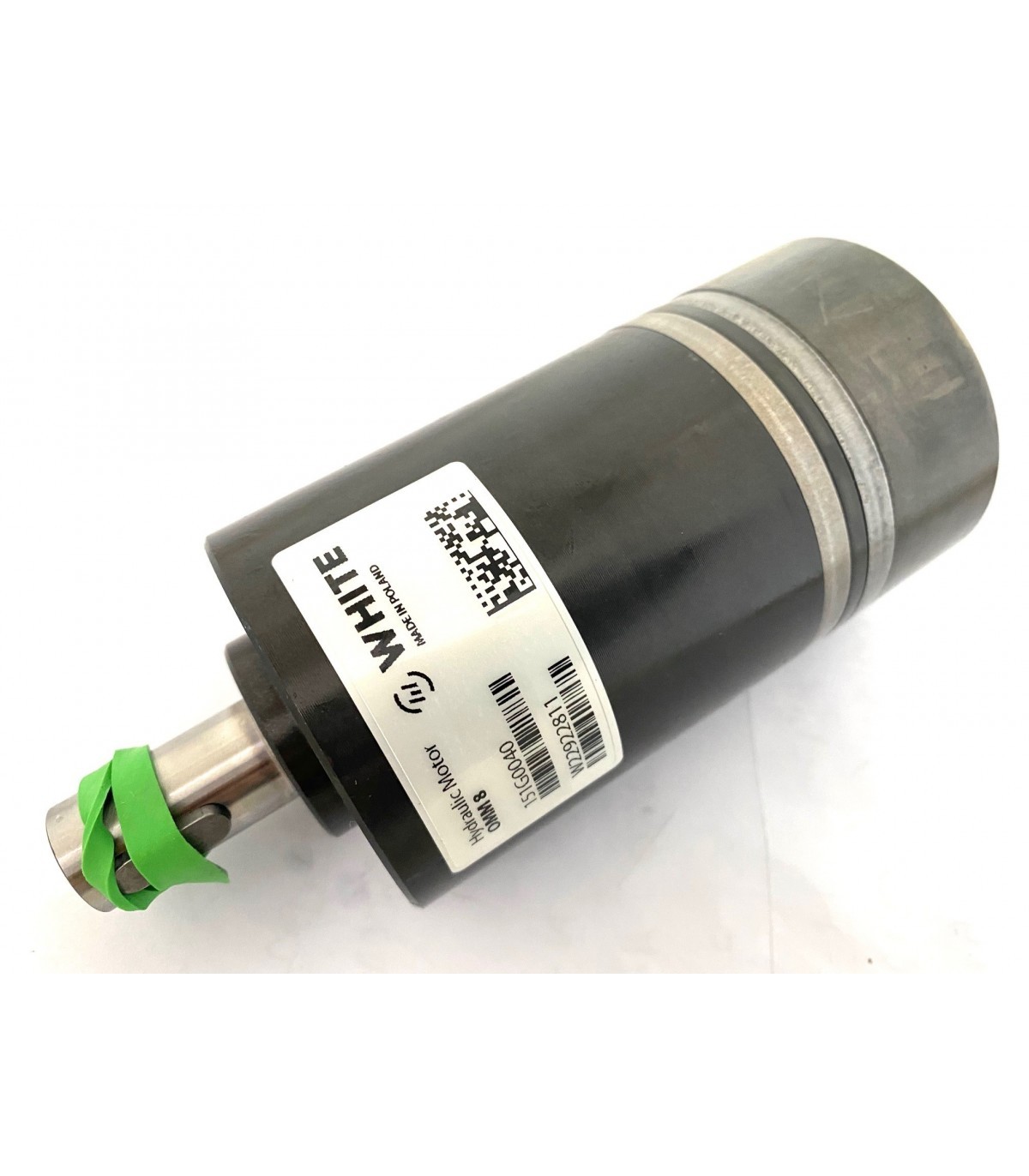

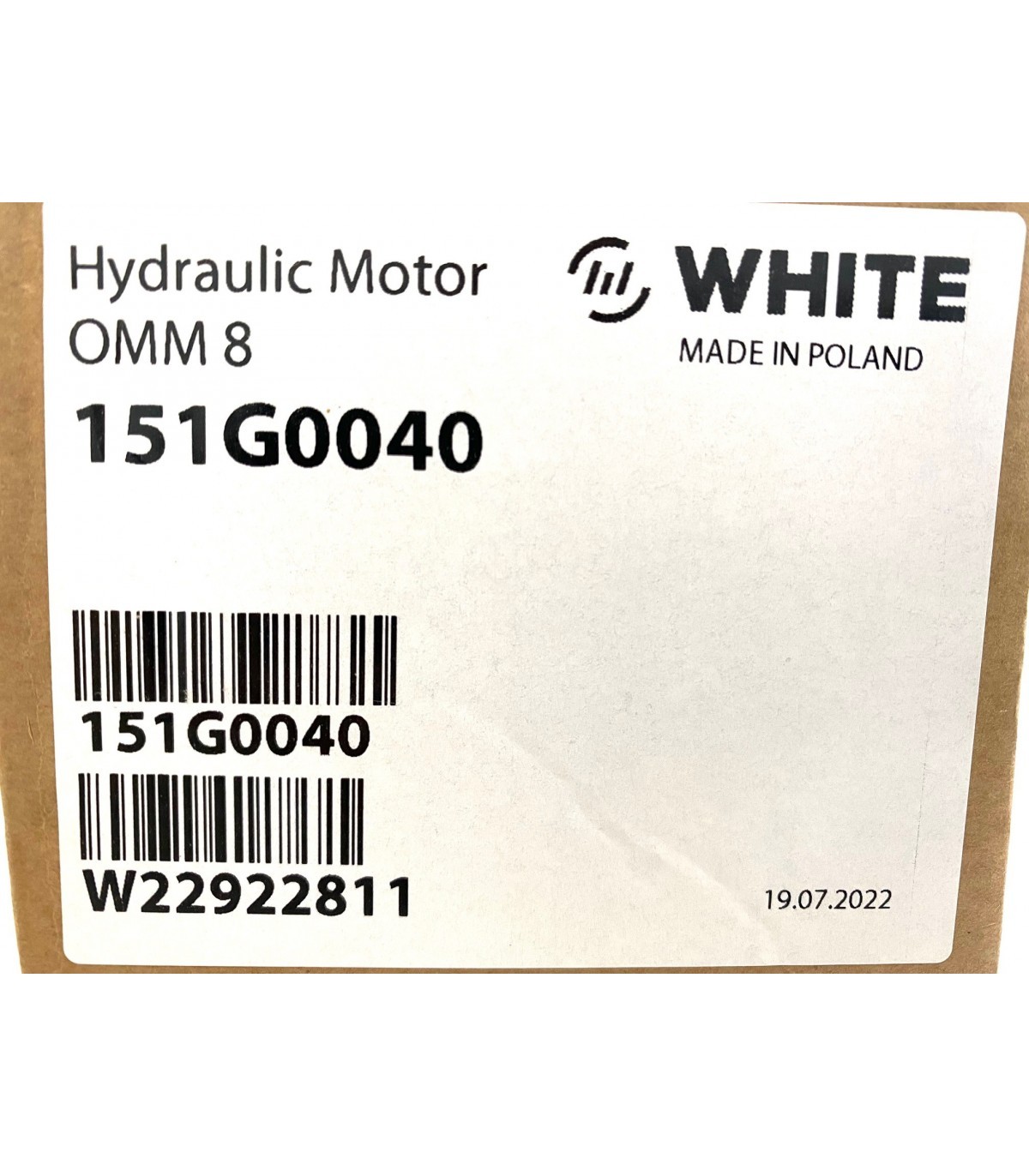

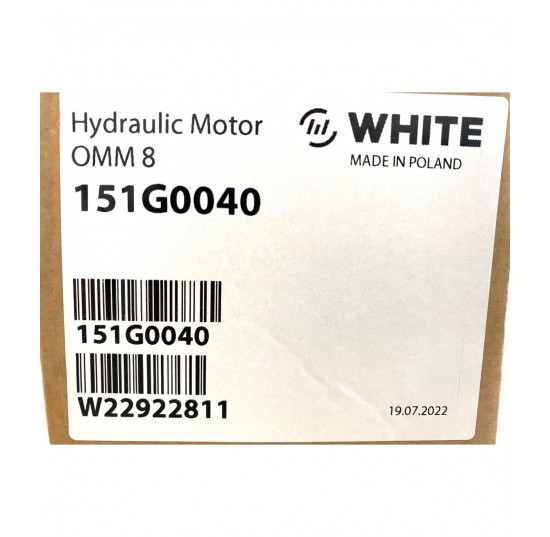

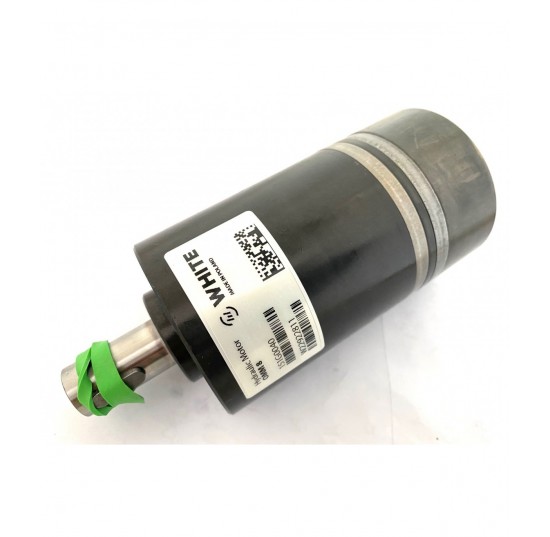

Orbital Motor OMM8 - 151G0040

151G0040

  • OMM 8 Low Speed High Torque motor, Geometric Displacement 8.2 cm³

SGD$ 274.90

Qty

Suitable for applications where high speed is required more than the torque, like sweepers or underwater hull cleaning
Cylindrical output shaft 16mm with 3/8 BSP end ports
Parallel key A5 x 5 x 16 DIN 6885 682L8026

Accessories (not included):
1. Mounting Flange 151G0211
2. Seal Kit 151G0202

Unit weight 1.9kg
Packing size 10 x 10 x 20 cm
Maximum Continuous Output Speed 1950 rpm
Maximum Intermittent Output Speed 2450 rpm
Maximum Continuous Output Torque 11Nm
Maximum Intermittent Output Torque 15Nm
