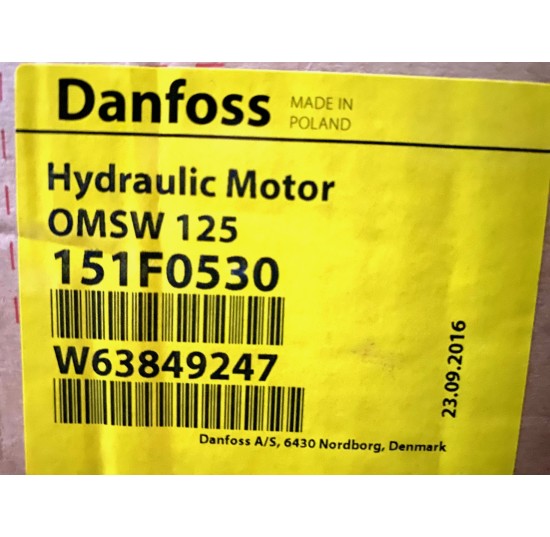

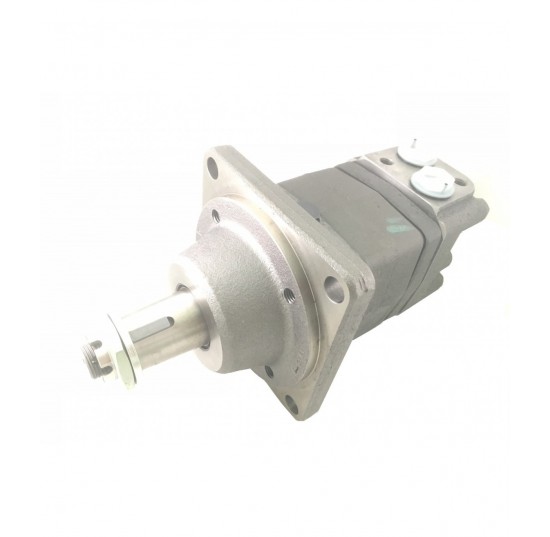

Orbital Motor OMSW125 - 151F0530

Product Code:
151F0530

OMSW 125 Low Speed High Torque Wheel motor, Geometric Displacement 125.7 cm3

Read moreShow less
Manufacturer:
SGD$776.86 (tax excl.)
Last items in stock 1 Item
More Info

OMS, OMT, and OMV are suitable for continuous operation under rough operating conditions: e.g. high pressure, thin oil, or frequent reversals. The tapered roller bear­ings on the output shaft make the motors suitable for absorbing static and dynamic radial loads. Besides the separately driven and hydraulically balanced disc valve, hydraulic and mechanical losses are reduced to a minimum. This gives the motors high efficiency - even at high pressures, and good starting characteristics.

The recessed mounting flange of a wheel motor makes it possible to fit into a wheel hub or winch drum so that the radial load acts midway between the two motor bearings. This gives the best utilisation of the bearing capacity and is a very compact solution..

If the application requires very smooth running at low speeds the choice of OMS, OMT, OMV or TMT is recommended

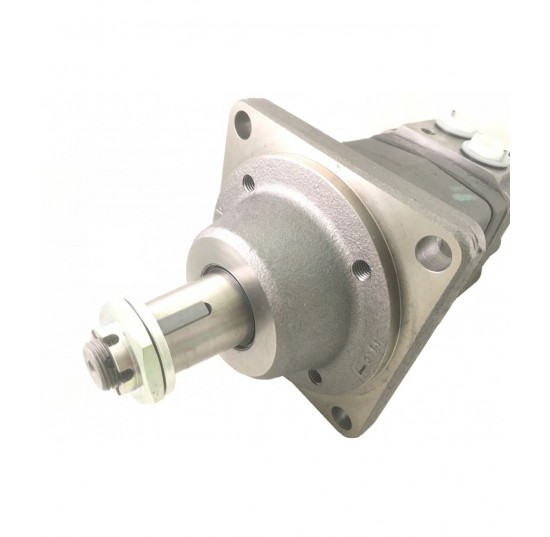

Tapered output shaft 35mm with 1/2 BSP port
Parallel key B6 x 6 x 20mm (DIN 6885) 682L8021

Accessories (Not Included)
1. Seal Kit 151F0111

Read moreShow less
Data Sheet
151F0530

Data sheet

Unit weight
10.8kg
Packing size
40 x 17 x 16 cm
Maximum Continuous Output Speed
600 rpm
Maximum Intermittent Output Speed
720 rpm
Maximum Continuous Output Torque
375Nm
Maximum Intermittent Output Torque
490Nm

Orbital Motor OMSW125 -...

SGD$776.86
