SGD$832.50
(tax excl.)
OMSW 160 Low Speed High Torque Wheel motor, Geometric Displacement 159.7 cm3

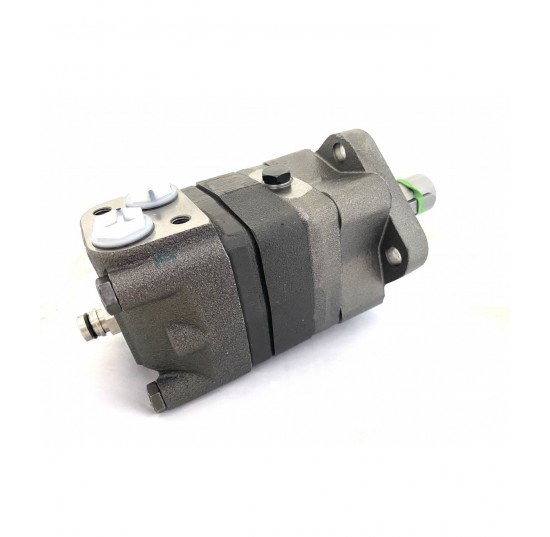

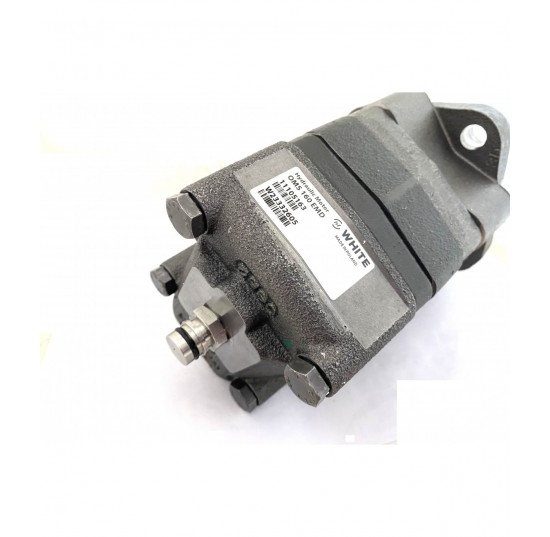

Orbital Motor OMS160 EMD - 11105163
Product Code:
11105163
OMS 160 EMD Low Speed High Torque motor, Geometric Displacement 159.7 cm3
complete with Techco Connection
Manufacturer:
SGD$1,090.85
(tax excl.)
OMS, OMT, and OMV are suitable for continuous operation under rough operating conditions: e.g. high pressure, thin oil, or frequent reversals. The tapered roller bearings on the output shaft make the motors suitable for absorbing static and dynamic radial loads. Besides the separately driven and hydraulically balanced disc valve, hydraulic and mechanical losses are reduced to a minimum. This gives the motors high efficiency - even at high pressures, and good starting characteristics.
If the application requires very smooth running at low speeds the choice of OMS, OMT, OMV or TMT is recommended

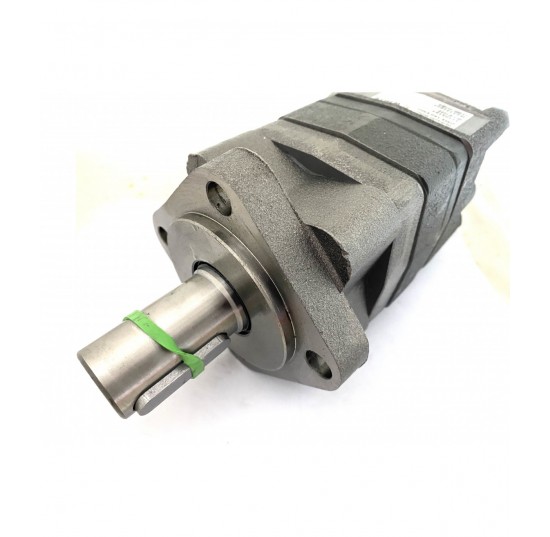

Cylindrical output shaft 32mm with 1/2 BSP port
Parallel key A10 x 8 x 45mm (DIN 6885) 682L8019
Accessories (not included):
1. Seal Kit 151F0111
11105163
Data sheet
- Unit weight
- 10.7kg
- Packing size
- 40 x 17 x 16 cm
- Maximum Continuous Output Speed
- 470 rpm
- Maximum Intermittent Output Speed
- 560 rpm
- Maximum Continuous Output Torque
- 490Nm
- Maximum Intermittent Output Torque
- 600Nm
