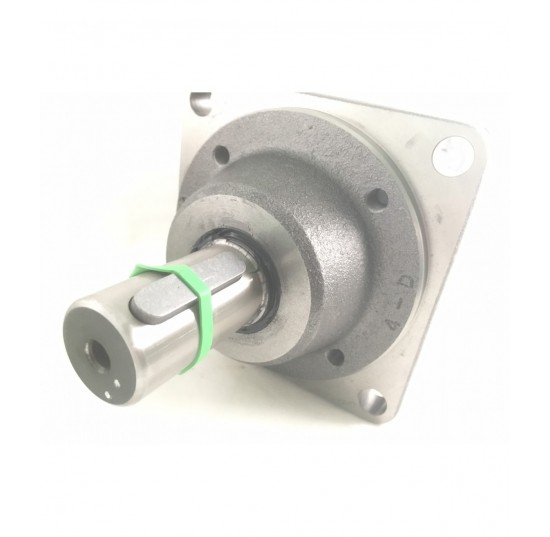

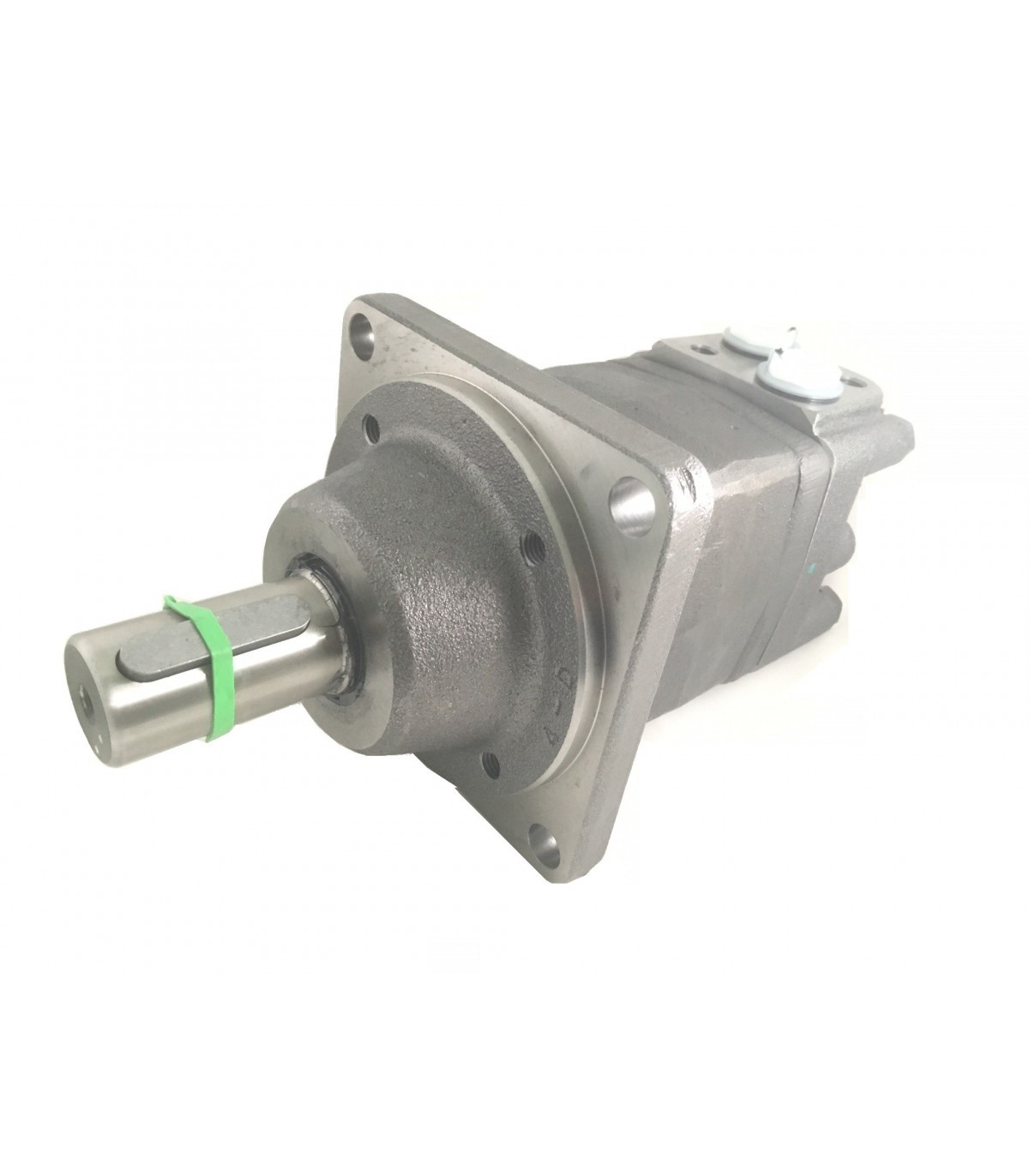

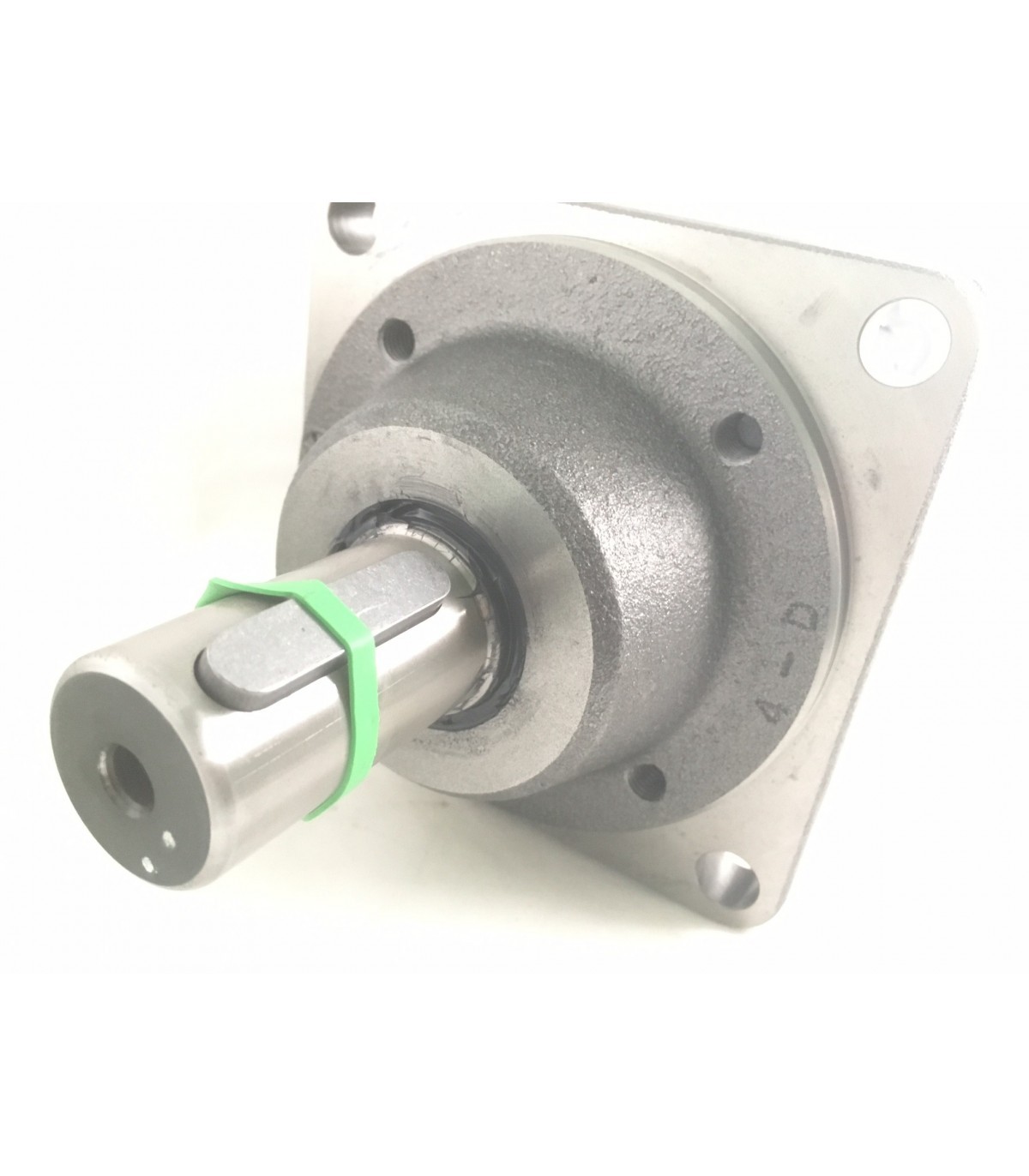

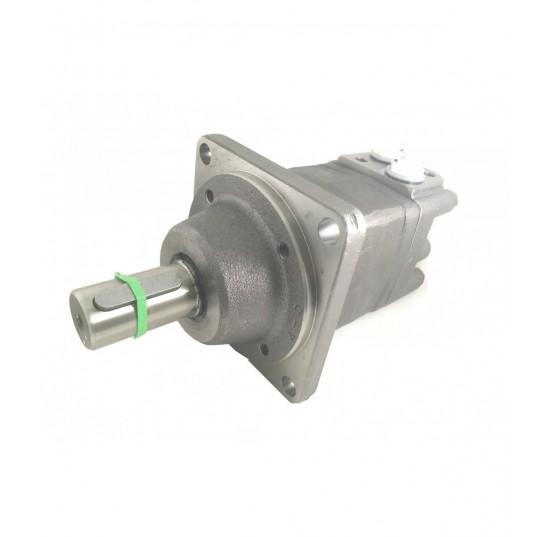

OMSW 125 Low Speed High Torque Wheel motor, Geometric Displacement 125.7 cm3
Warning: Last items in stock!
OMS, OMT, and OMV are suitable for continuous operation under rough operating conditions: e.g. high pressure, thin oil, or frequent reversals. The tapered roller bearings on the output shaft make the motors suitable for absorbing static and dynamic radial loads. Besides the separately driven and hydraulically balanced disc valve, hydraulic and mechanical losses are reduced to a minimum. This gives the motors high efficiency - even at high pressures, and good starting characteristics.
The recessed mounting flange of a wheel motor makes it possible to fit into a wheel hub or winch drum so that the radial load acts midway between the two motor bearings. This gives the best utilisation of the bearing capacity and is a very compact solution..
If the application requires very smooth running at low speeds the choice of OMS, OMT, OMV or TMT is recommended
Cylindrical output shaft 32mm with 1/2 BSP port
Parallel key A10 x 8 x 45mm (DIN 6885)
Accessories (Not Included)
1. Seal Kit 151F0111
|Packing size||40 x 17 x 16 cm|
|Maximum Continuous Output Speed||600 rpm|
|Maximum Intermittent Output Speed||720 rpm|
|Maximum Continuous Output Torque||375Nm|
|Maximum Intermittent Output Torque||490Nm|
