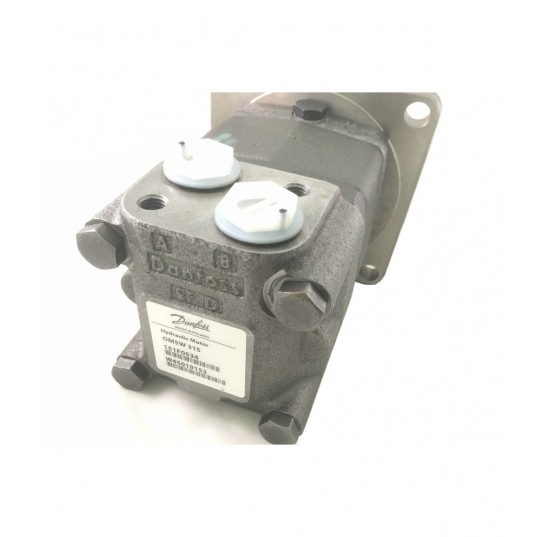

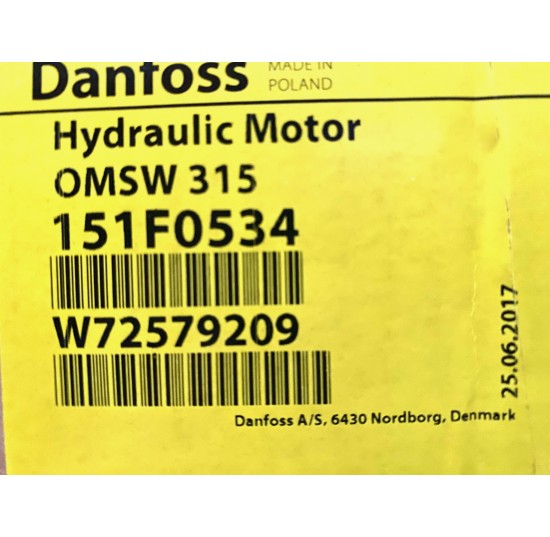

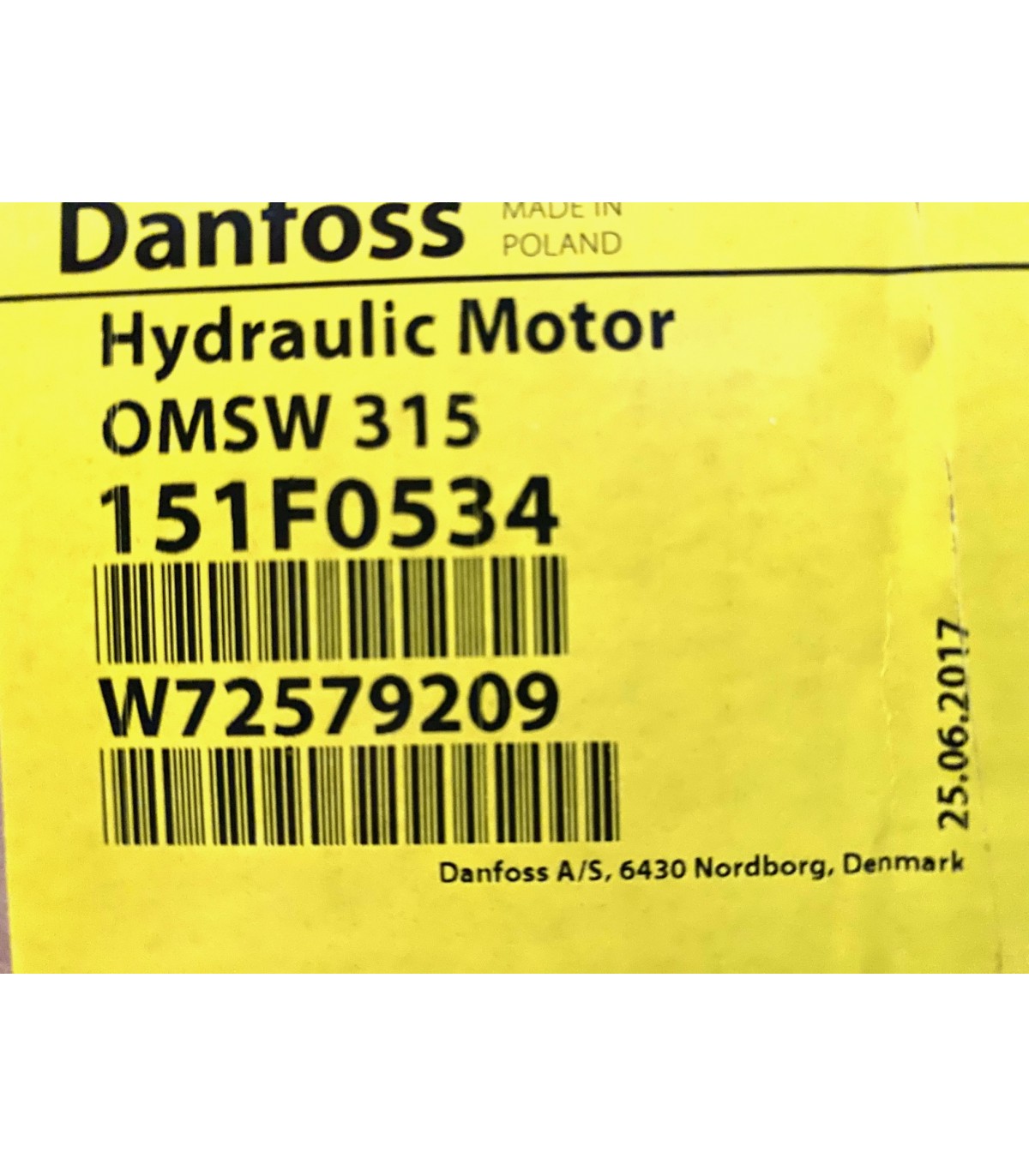

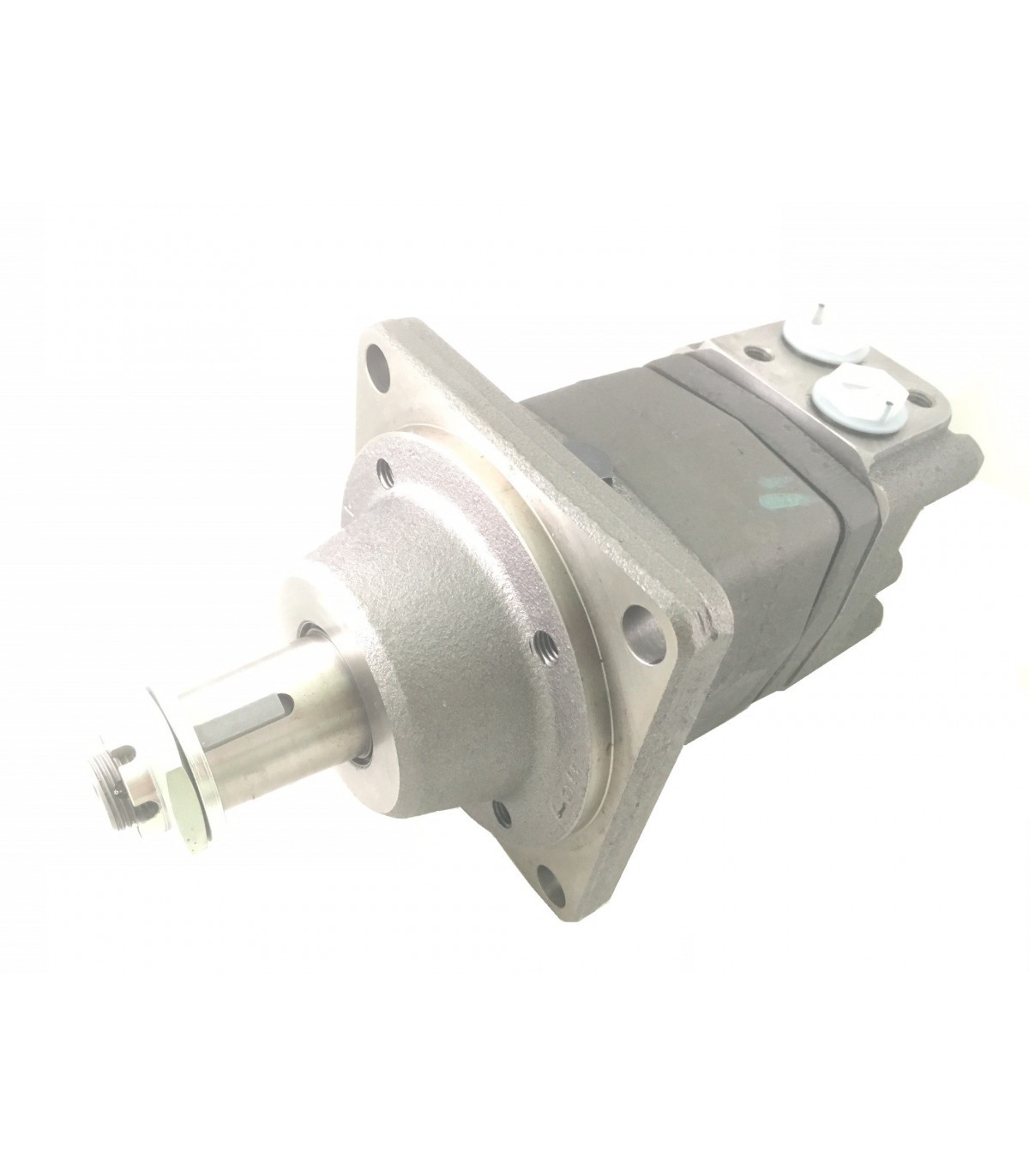

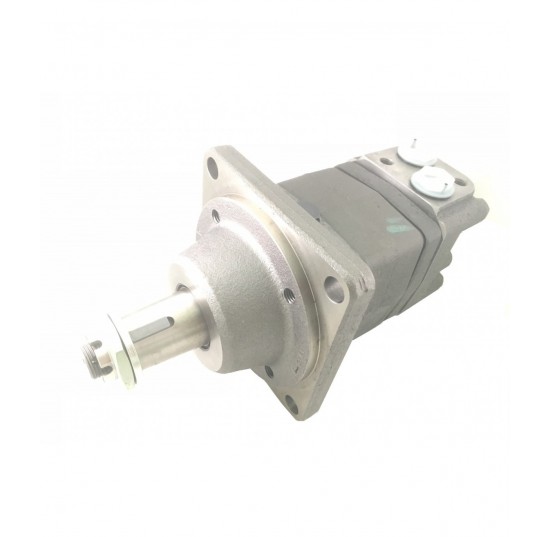

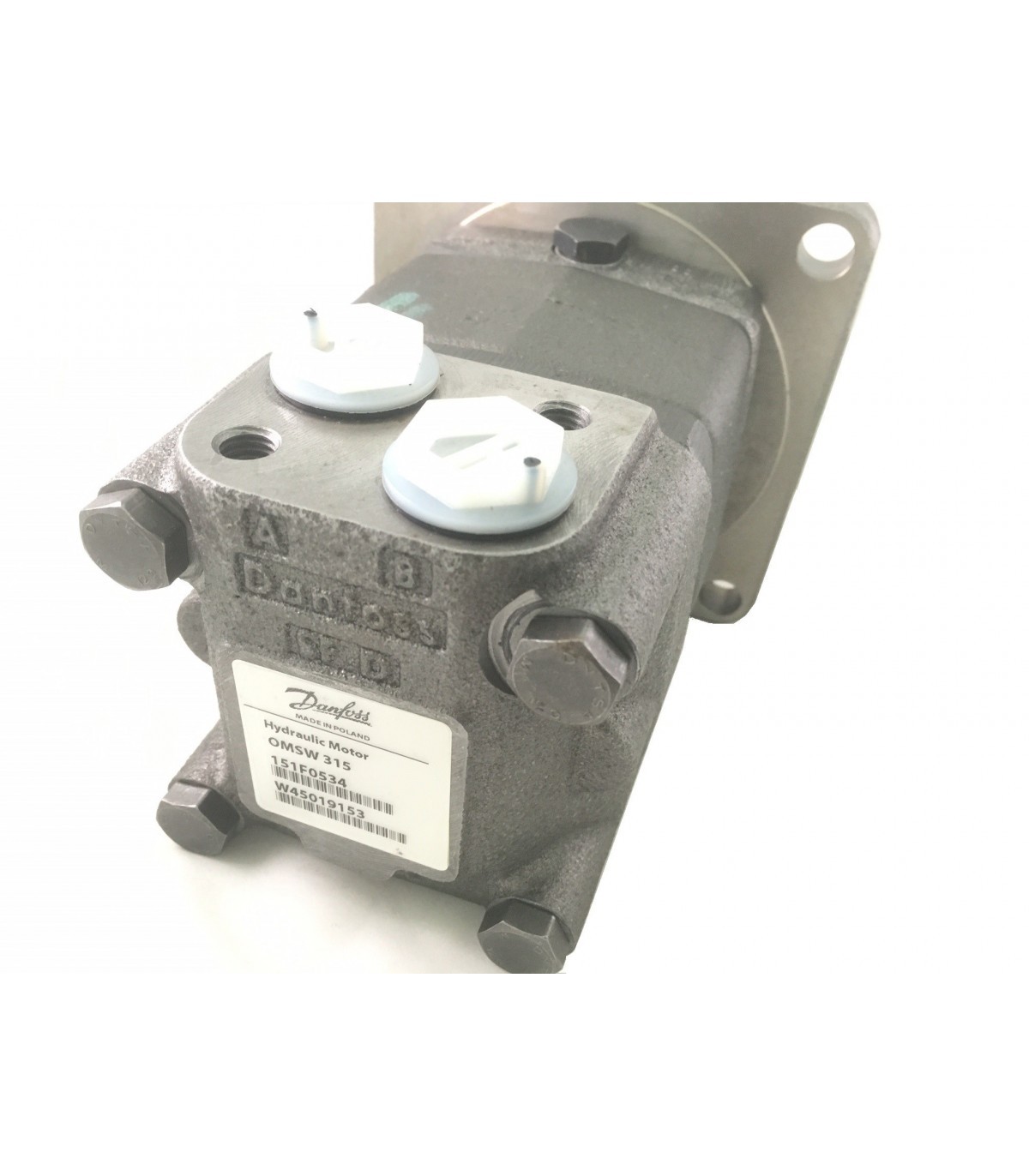

Orbital Motor OMSW315 - 151F0534

151F0534

OMSW 315 Low Speed High Torque Wheel motor, Geometric Displacement 314.9 cm3

SGD$ 895.62

Qty

OMS, OMT, and OMV are suitable for continuous operation under rough operating conditions: e.g. high pressure, thin oil, or frequent reversals. The tapered roller bear­ings on the output shaft make the motors suitable for absorbing static and dynamic radial loads. Besides the separately driven and hydraulically balanced disc valve, hydraulic and mechanical losses are reduced to a minimum. This gives the motors high efficiency - even at high pressures, and good starting characteristics.

The recessed mounting flange of a wheel motor makes it possible to fit into a wheel hub or winch drum so that the radial load acts midway between the two motor bearings. This gives the best utilisation of the bearing capacity and is a very compact solution..

If the application requires very smooth running at low speeds the choice of OMS, OMT, OMV or TMT is recommended

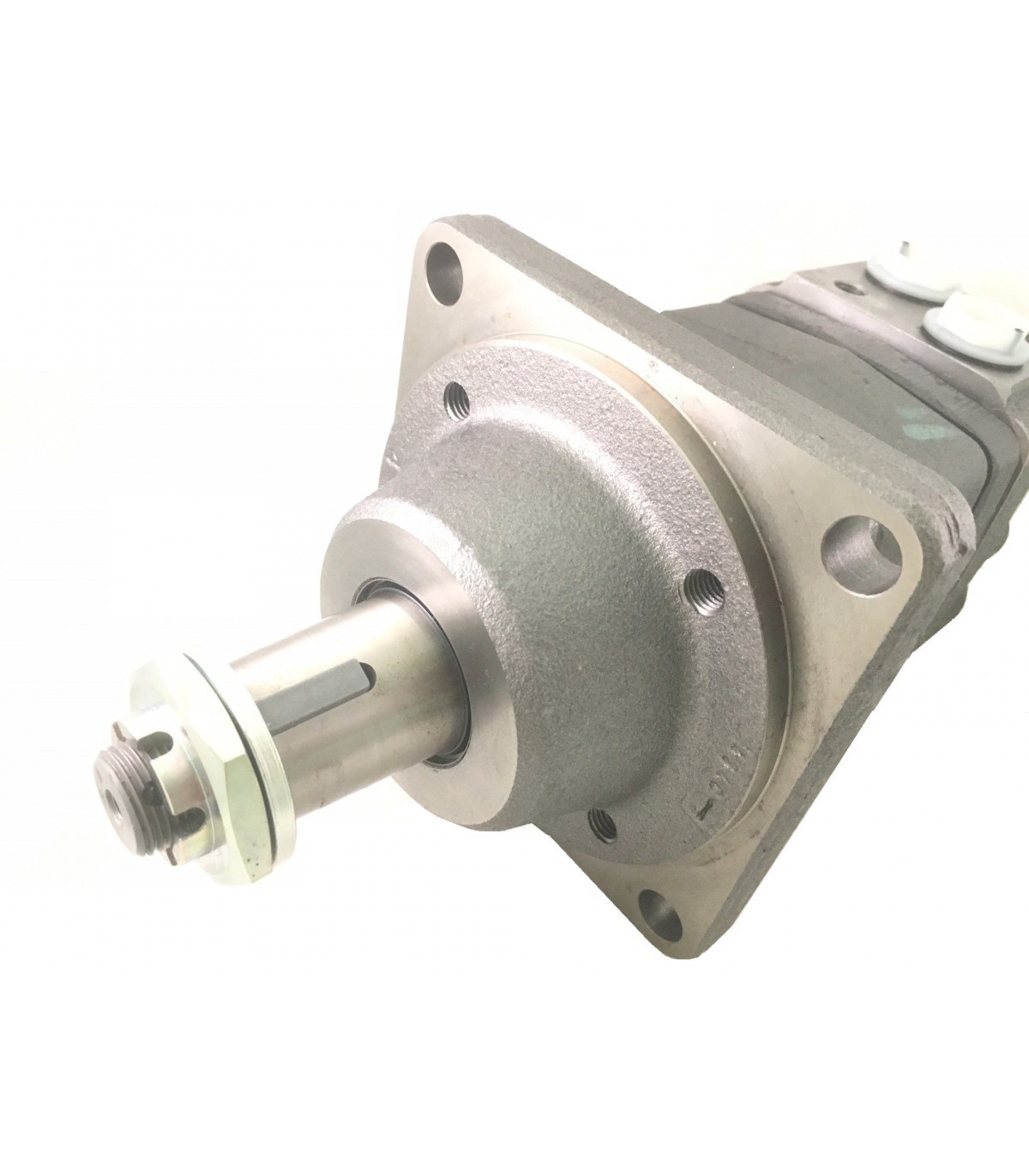

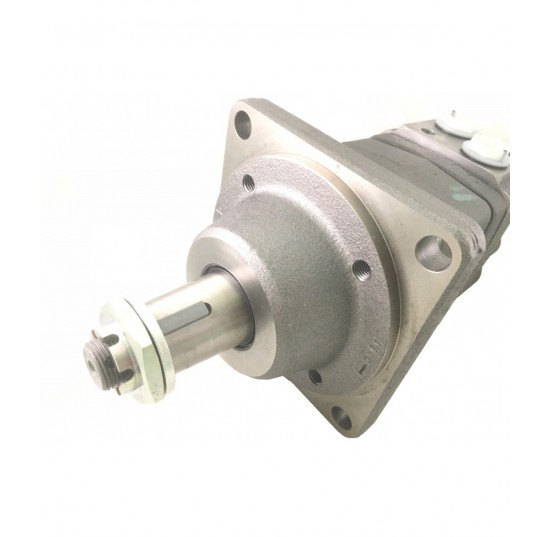

Tapered output shaft 35mm with 1/2 BSP port
Parallel key B6 x 6 x 20mm (DIN 6885) 682L8021

Accessories (not included):
1. Seal Kit 151F0111

Unit weight 12.8kg
Packing size 40 x 17 x 16 cm
Maximum Continuous Output Speed 240 rpm
Maximum Intermittent Output Speed 285 rpm
Maximum Continuous Output Torque 825Nm
Maximum Intermittent Output Torque 1000Nm
