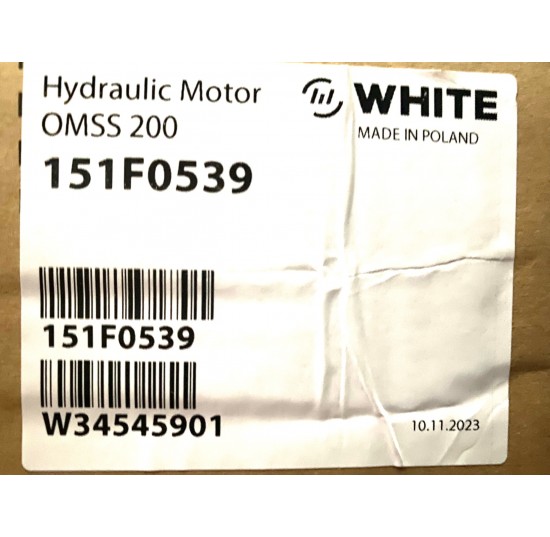

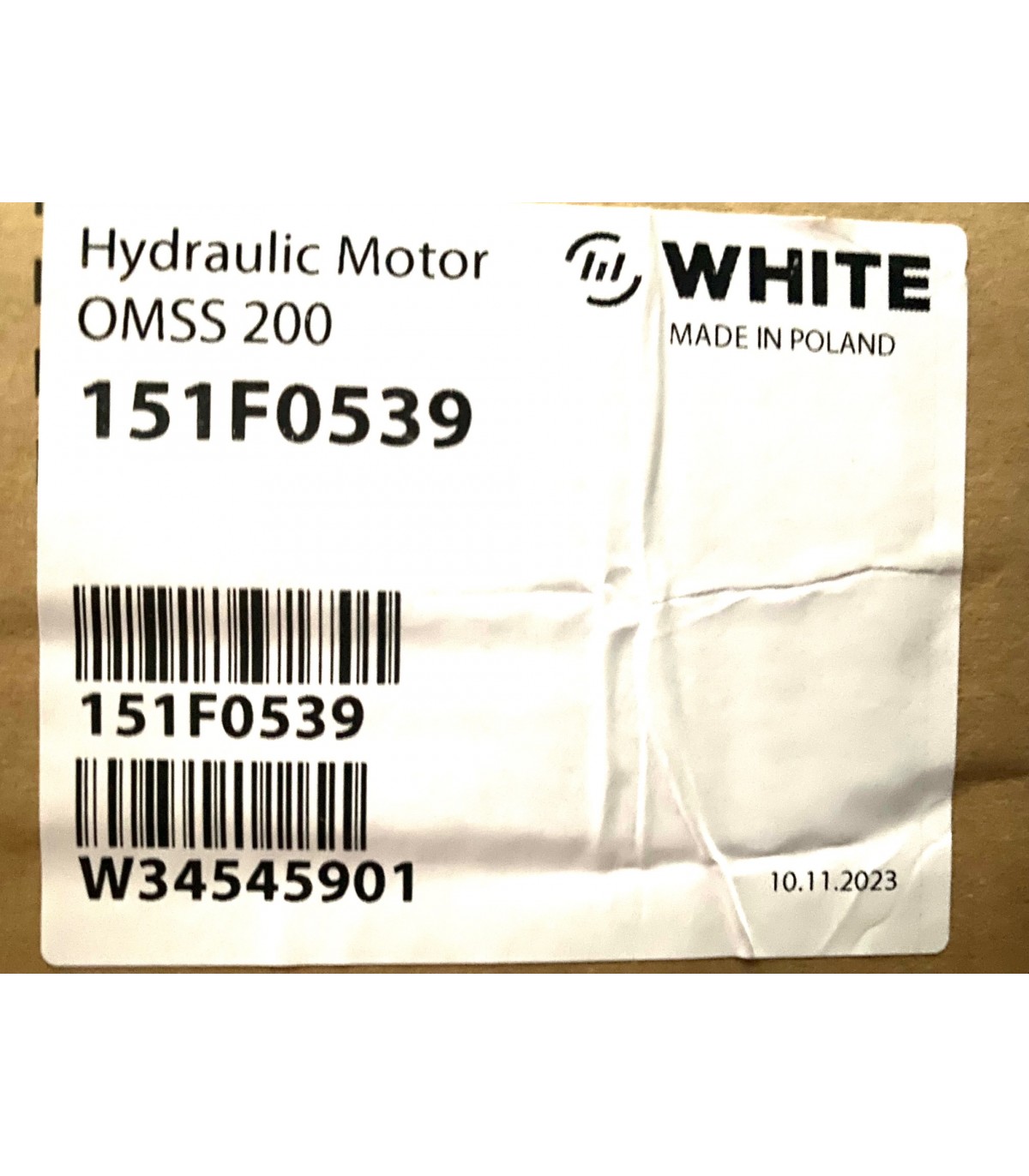

Orbital Motor OMSS200 - 151F0539

151F0539

OMSS 200 Low Speed High Torque motor, Geometric Displacement 200.0 cm3

SGD$ 648.21

Qty

OMS, OMT, and OMV are suitable for continuous operation under rough operating conditions: e.g. high pressure, thin oil, or frequent reversals. The tapered roller bear­ings on the output shaft make the motors suitable for absorbing static and dynamic radial loads. Besides the separately driven and hydraulically balanced disc valve, hydraulic and mechanical losses are reduced to a minimum. This gives the motors high efficiency - even at high pressures, and good starting characteristics.

If the application requires very smooth running at low speeds the choice of OMS, OMT, OMV or TMT is recommended
No output shaft with 1/2 BSP port

Accessories (Included): 151F1033
1. Seal Kit 151F0103 (Not included)

Unit weight 9.1kg
Packing size 40 x 17 x 16 cm
Maximum Continuous Output Speed 375 rpm
Maximum Intermittent Output Speed 450 rpm
Maximum Continuous Output Torque 610Nm
Maximum Intermittent Output Torque 720Nm
