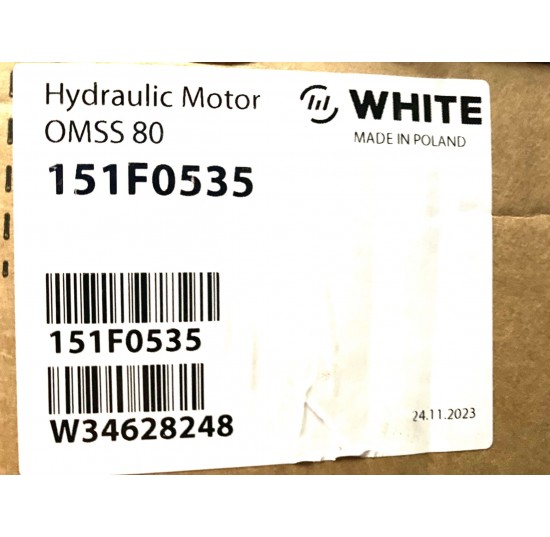

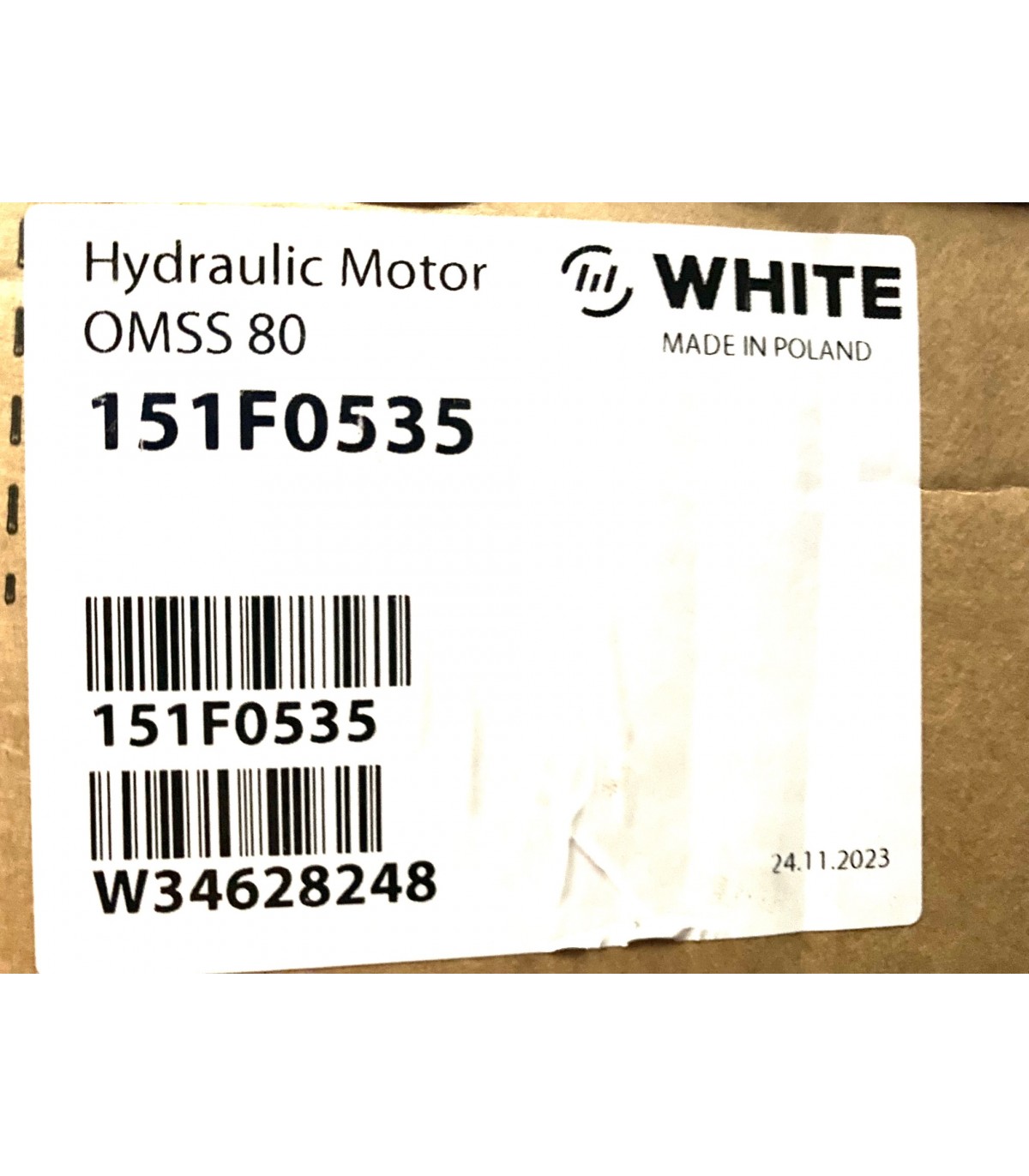

Orbital Motor OMSS80 - 151F0535

151F0535

OMSS 80 Low Speed High Torque motor, Geometric Displacement 80.5 cm3

SGD$ 536.05

This product is no longer in stock

OMS, OMT, and OMV are suitable for continuous operation under rough operating conditions: e.g. high pressure, thin oil, or frequent reversals. The tapered roller bear­ings on the output shaft make the motors suitable for absorbing static and dynamic radial loads. Besides the separately driven and hydraulically balanced disc valve, hydraulic and mechanical losses are reduced to a minimum. This gives the motors high efficiency - even at high pressures, and good starting characteristics.

If the application requires very smooth running at low speeds the choice of OMS, OMT, OMV or TMT is recommended
No output shaft with 1/2 BSP port

Accessories (Included): 151F1033
1. Seal Kit 151F0103 (Not included)

Unit weight 7.8kg
Packing size 40 x 17 x 16 cm
Maximum Continuous Output Speed 810 rpm
Maximum Intermittent Output Speed 1000 rpm
Maximum Continuous Output Torque 240Nm
Maximum Intermittent Output Torque 310Nm
