Established in 2013, PV Global is the sales partner & appointed Authorised Service Centre (ASC) for Danfoss Power Solution’s (DPS) range of Open Circuit Hydraulics products.

Find A Product

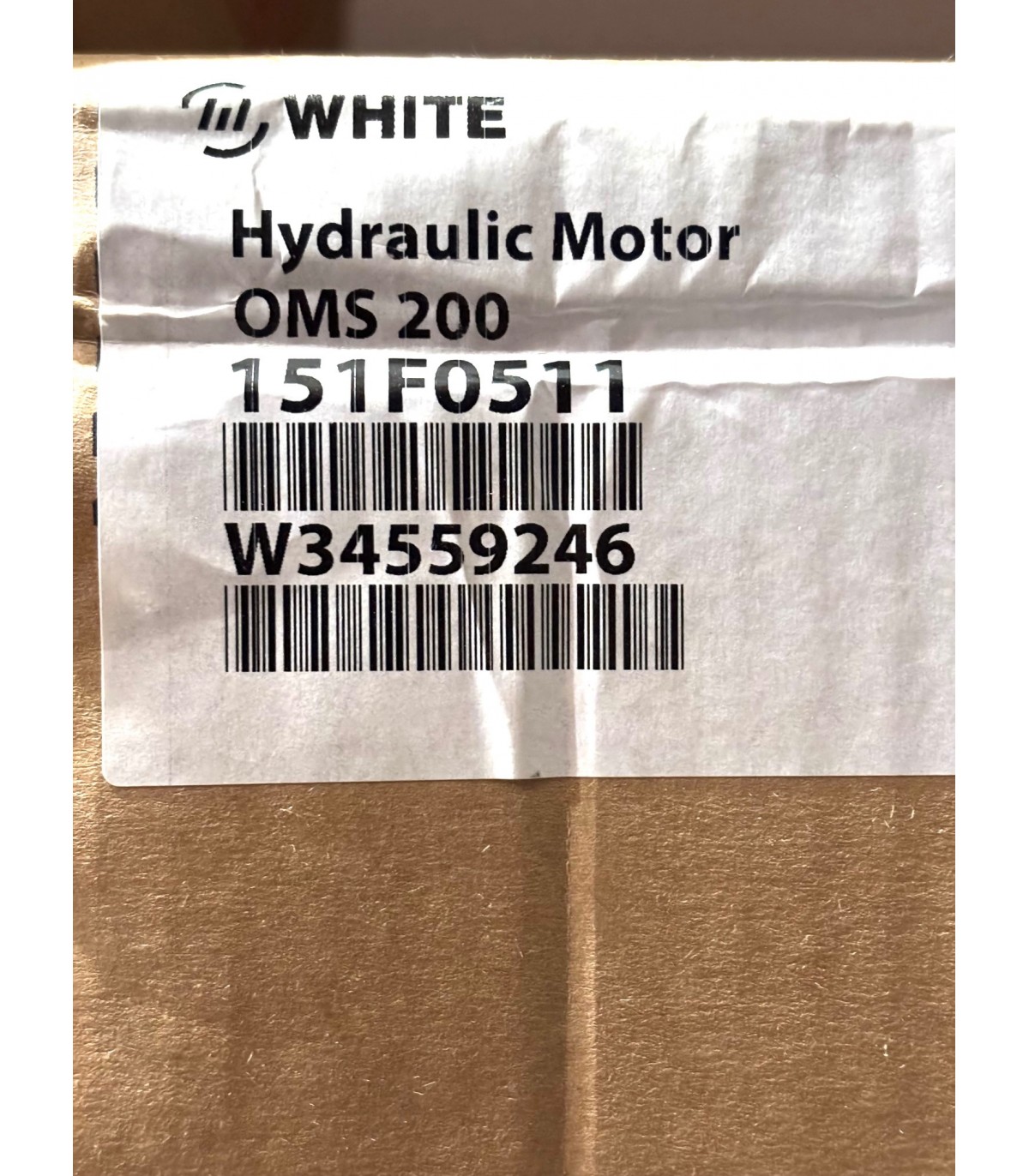

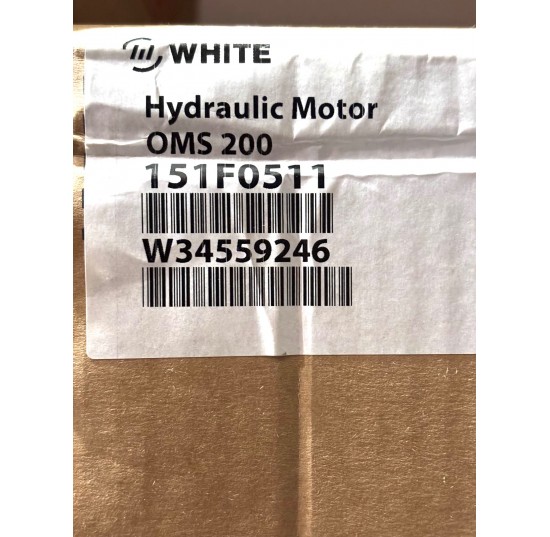

Orbital Motor OMS200 - 151F0511

151F0511

OMS 200 Low Speed High Torque motor, Geometric Displacement 200.0 cm3

SGD$ 793.36

Qty

OMS, OMT, and OMV are suitable for continuous operation under rough operating conditions: e.g. high pressure, thin oil, or frequent reversals. The tapered roller bear­ings on the output shaft make the motors suitable for absorbing static and dynamic radial loads. Besides the separately driven and hydraulically balanced disc valve, hydraulic and mechanical losses are reduced to a minimum. This gives the motors high efficiency - even at high pressures, and good starting characteristics.

If the application requires very smooth running at low speeds the choice of OMS, OMT, OMV or TMT is recommended
Splined 14T output shaft 1.25" with 1/2 BSP port
Splined Shaft ANS B92.1 - 1970 standard

Accessories (not included):
1. Seal Kit 151F0111

Unit weight 11.1kg
Packing size 40 x 17 x 16 cm
Maximum Continuous Output Speed 375 rpm
Maximum Intermittent Output Speed 450 rpm
Maximum Continuous Output Torque 610Nm
Maximum Intermittent Output Torque 720Nm
