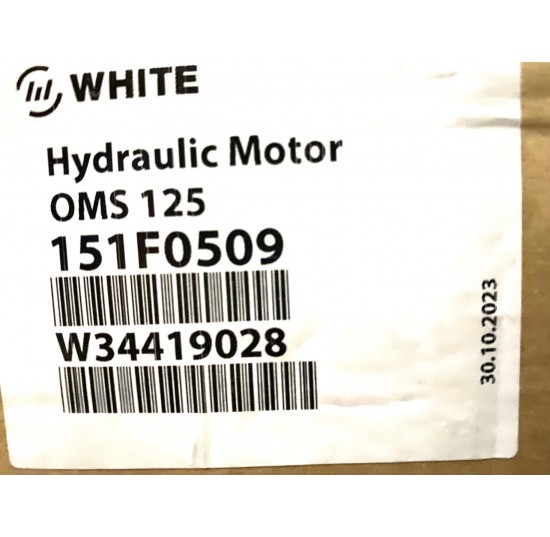

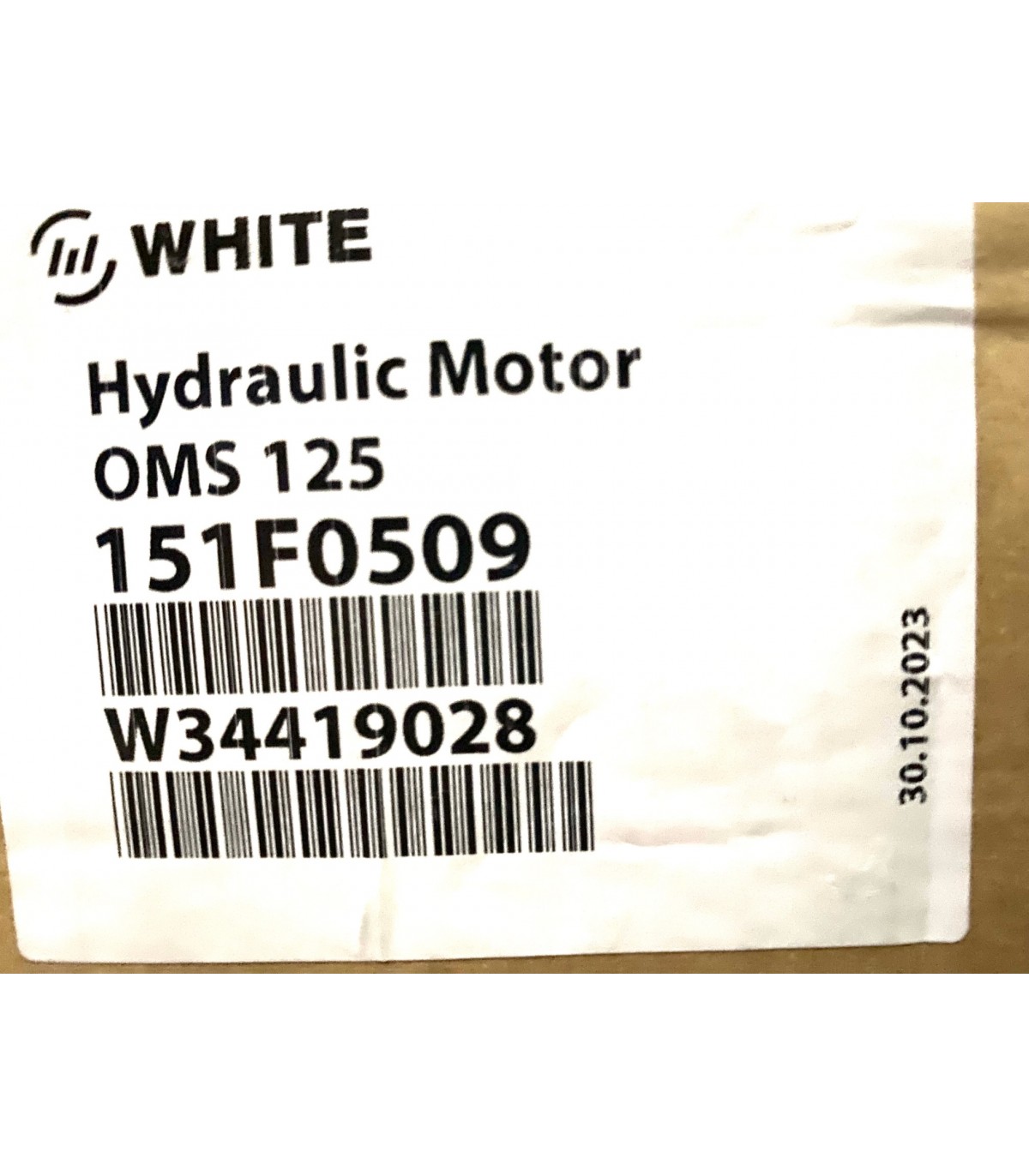

OMS 125 Low Speed High Torque motor, Geometric Displacement 125.7 cm3
Warning: Last items in stock!
OMS, OMT, and OMV are suitable for continuous operation under rough operating conditions: e.g. high pressure, thin oil, or frequent reversals. The tapered roller bearings on the output shaft make the motors suitable for absorbing static and dynamic radial loads. Besides the separately driven and hydraulically balanced disc valve, hydraulic and mechanical losses are reduced to a minimum. This gives the motors high efficiency - even at high pressures, and good starting characteristics.
If the application requires very smooth running at low speeds the choice of OMS, OMT, OMV or TMT is recommended
Splined 14T output shaft 1.25" with 1/2 BSP port
Splined Shaft ANS B92.1 - 1970 standard
Accessories (not included):
1. Seal Kit 151F0111
|Packing size||40 x 17 x 16 cm|
|Maximum Continuous Output Speed||600 rpm|
|Maximum Intermittent Output Speed||720 rpm|
|Maximum Continuous Output Torque||375Nm|
|Maximum Intermittent Output Torque||490Nm|
