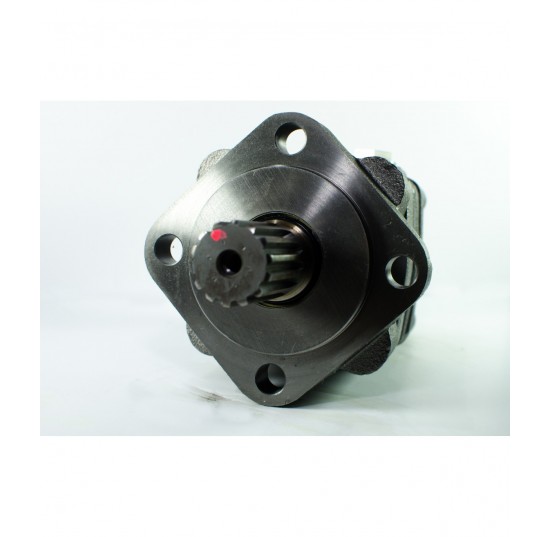

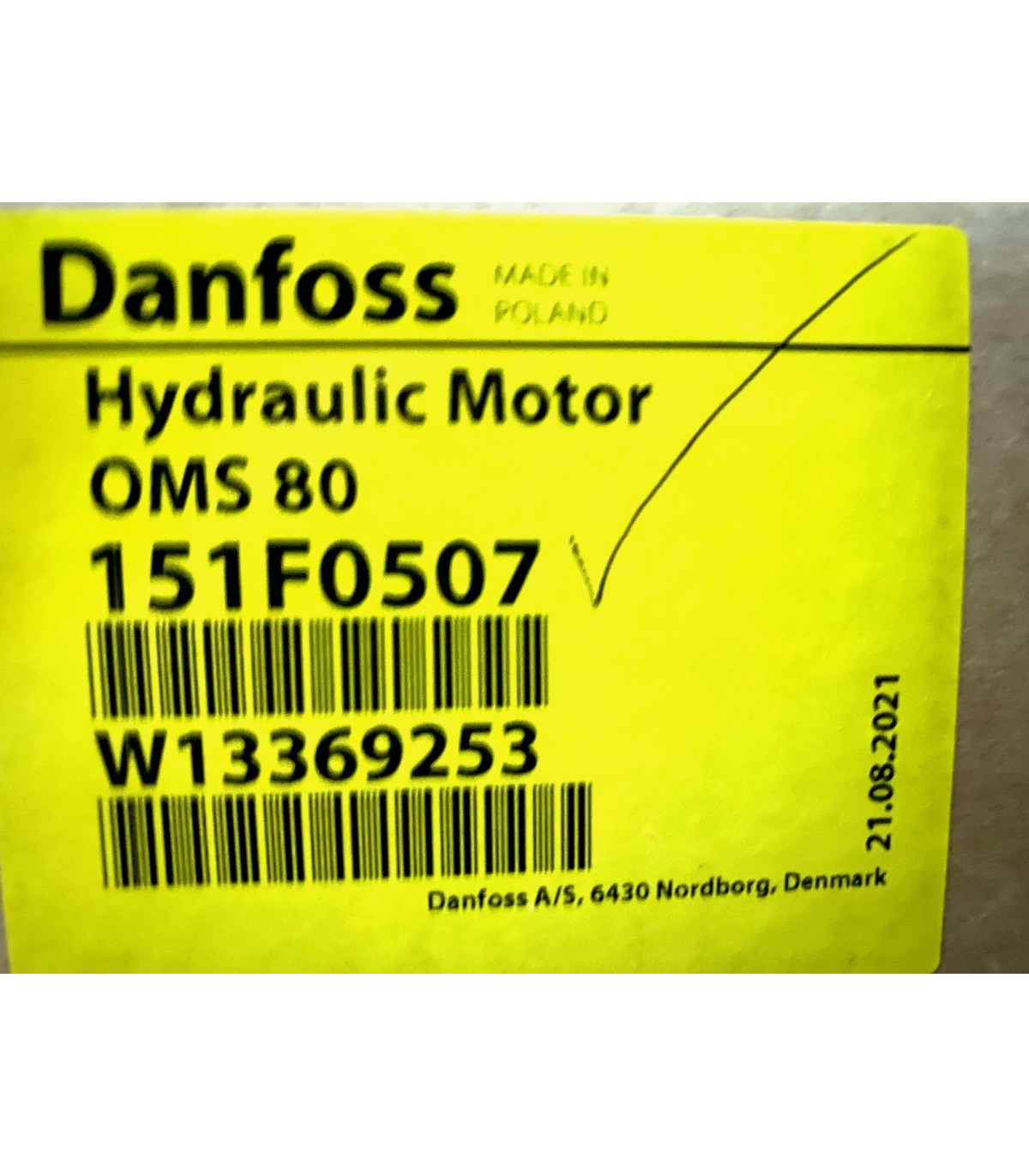

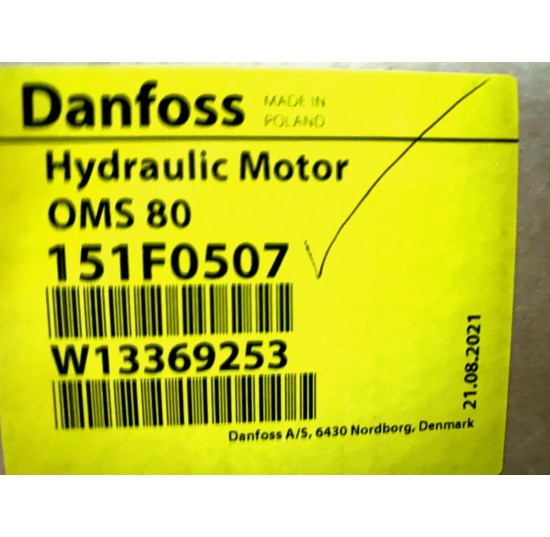

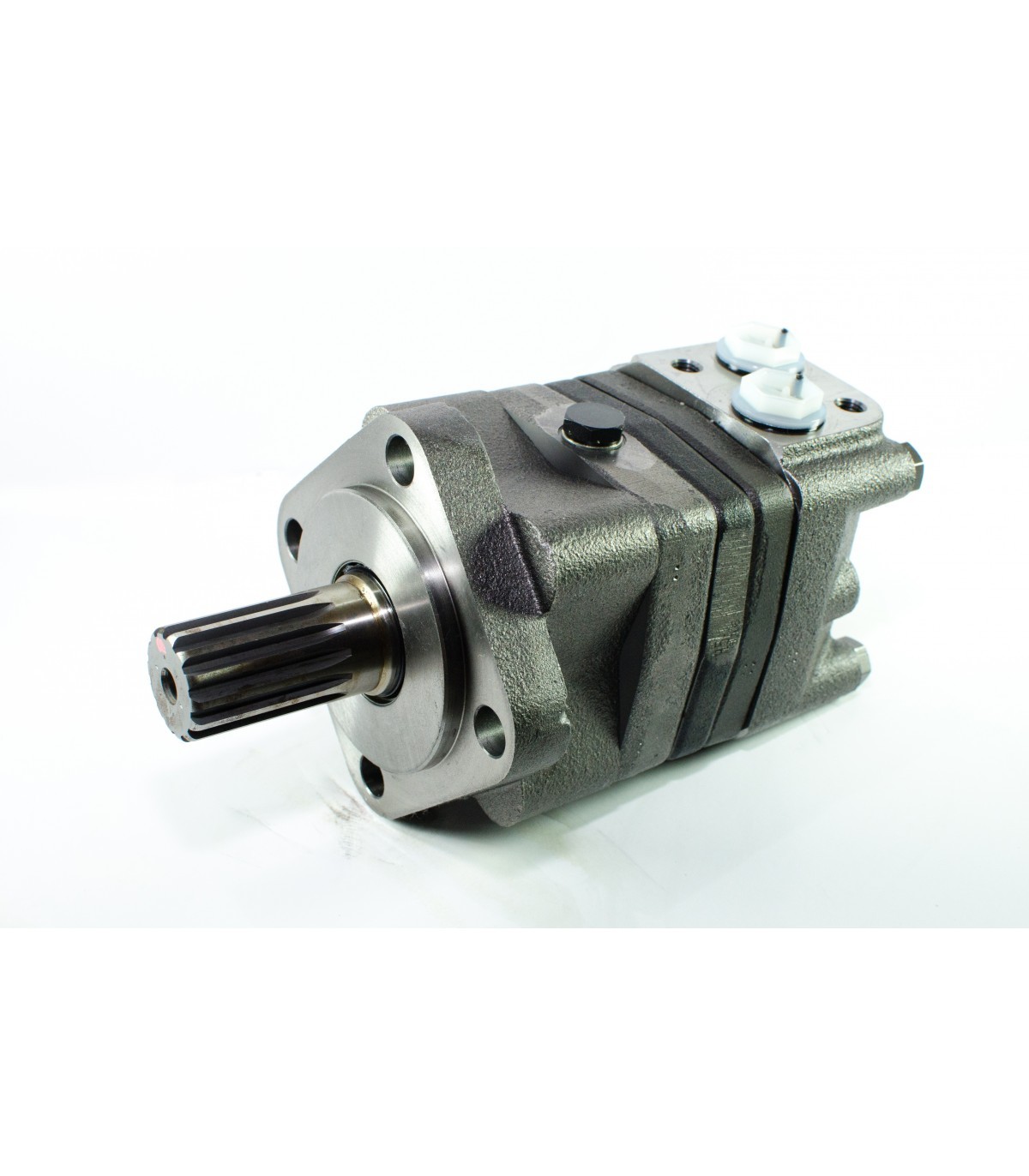

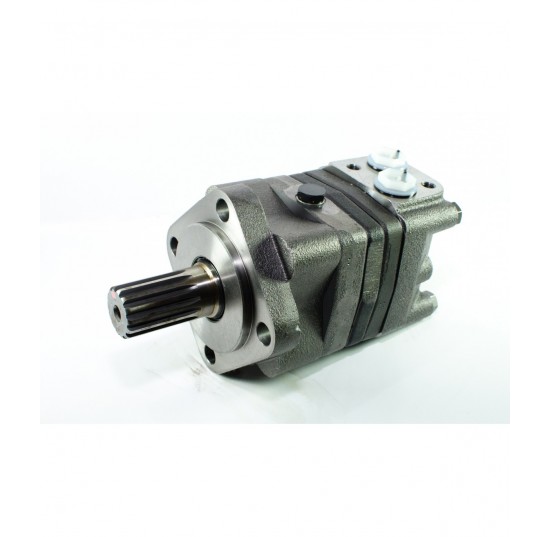

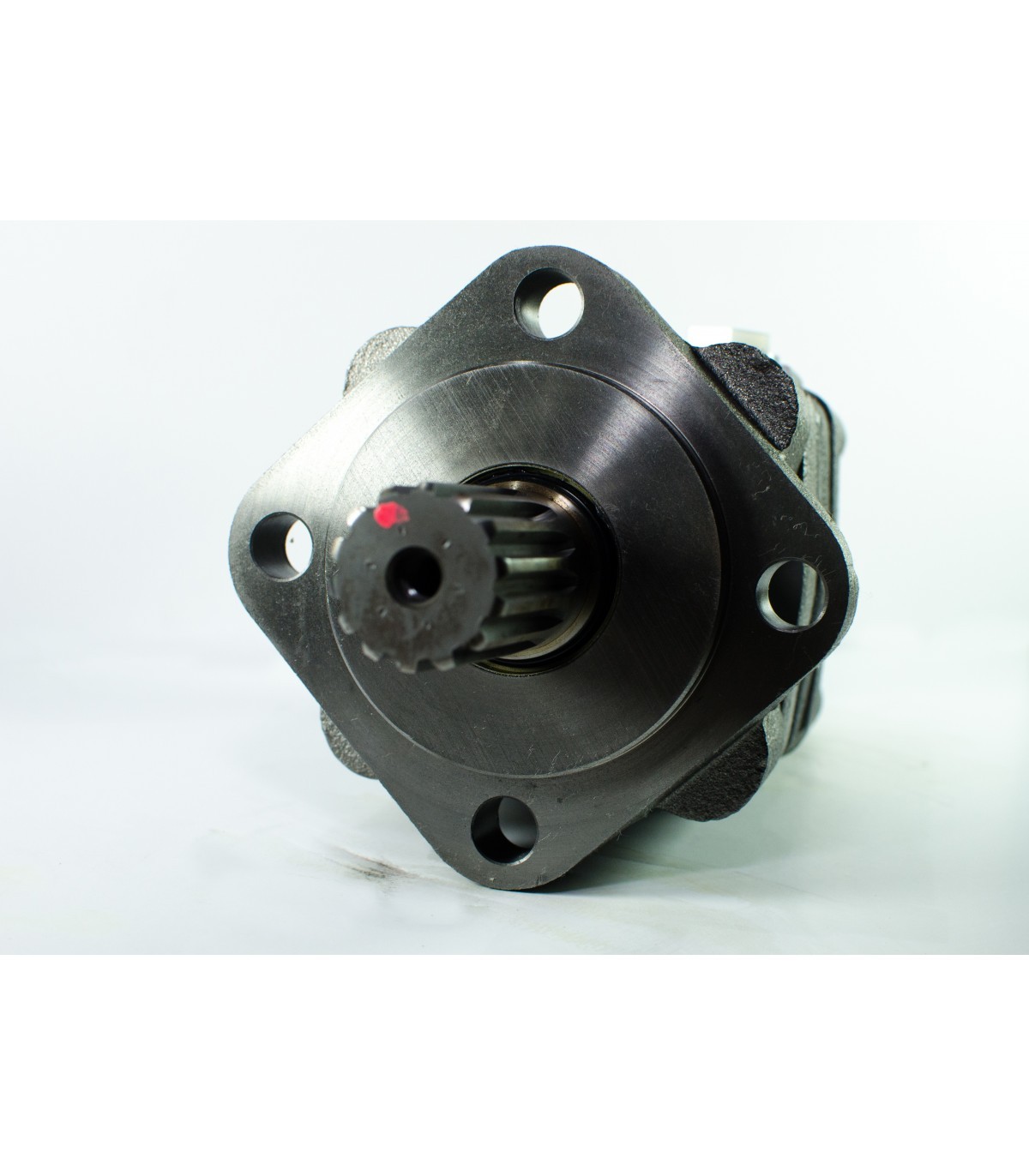

Orbital Motor OMS80 - 151F0507

Product Code:
151F0507

OMS 80 Low Speed High Torque motor, Geometric Displacement 80.5 cm3

Read moreShow less
Manufacturer:
SGD$749.32 (tax excl.)
Last items in stock 1 Item
More Info

OMS, OMT, and OMV are suitable for continuous operation under rough operating conditions: e.g. high pressure, thin oil, or frequent reversals. The tapered roller bear­ings on the output shaft make the motors suitable for absorbing static and dynamic radial loads. Besides the separately driven and hydraulically balanced disc valve, hydraulic and mechanical losses are reduced to a minimum. This gives the motors high efficiency - even at high pressures, and good starting characteristics.

If the application requires very smooth running at low speeds the choice of OMS, OMT, OMV or TMT is recommended
Splined 14T output shaft 1.25" with 1/2 BSP port
Splined Shaft ANS B92.1 - 1970 standard

Accessories (not included):
1. Seal Kit 151F0111

Read moreShow less
Data Sheet
151F0507

Data sheet

Unit weight
9.8kg
Packing size
40 x 17 x 16 cm
Maximum Continuous Output Speed
810 rpm
Maximum Intermittent Output Speed
1000 rpm
Maximum Continuous Output Torque
240Nm
Maximum Intermittent Output Torque
310Nm

Orbital Motor OMS80 - 151F0507

SGD$749.32
