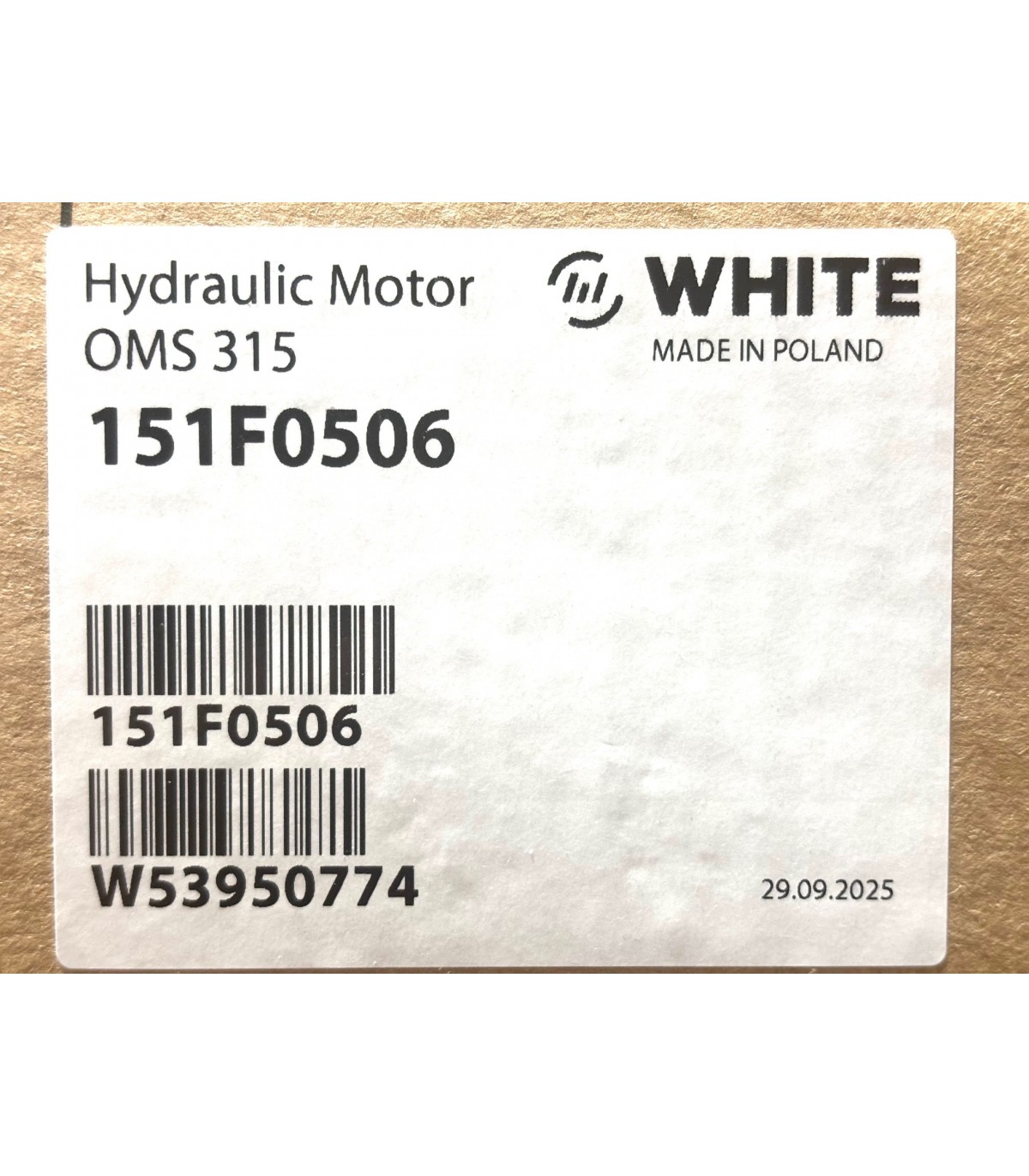

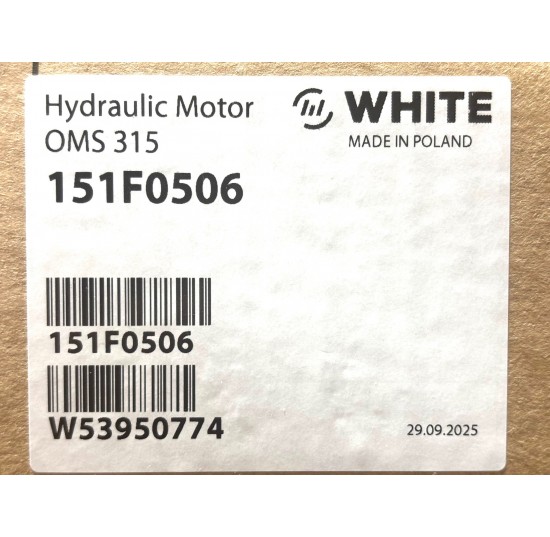

Orbital Motor OMS315 - 151F0506

151F0506

OMS 315 Low Speed High Torque motor, Geometric Displacement 314.9 cm3

SGD$ 818.10

This product is no longer in stock

OMS, OMT, and OMV are suitable for continuous operation under rough operating conditions: e.g. high pressure, thin oil, or frequent reversals. The tapered roller bear­ings on the output shaft make the motors suitable for absorbing static and dynamic radial loads. Besides the separately driven and hydraulically balanced disc valve, hydraulic and mechanical losses are reduced to a minimum. This gives the motors high efficiency - even at high pressures, and good starting characteristics.

If the application requires very smooth running at low speeds the choice of OMS, OMT, OMV or TMT is recommended
Cylindrical output shaft 32mm with 1/2 BSP port
Parallel key A10 x 8 x 45mm (DIN 6885) 682L8019

Accessories (not included):
1. Seal Kit 151F0111

Unit weight 12.3kg
Packing size 40 x 17 x 16 cm
Maximum Continuous Output Speed 240 rpm
Maximum Intermittent Output Speed 285 rpm
Maximum Continuous Output Torque 825Nm
Maximum Intermittent Output Torque 1000Nm
