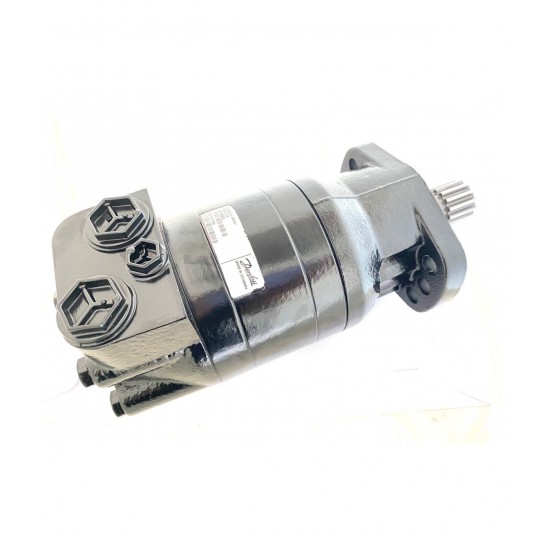

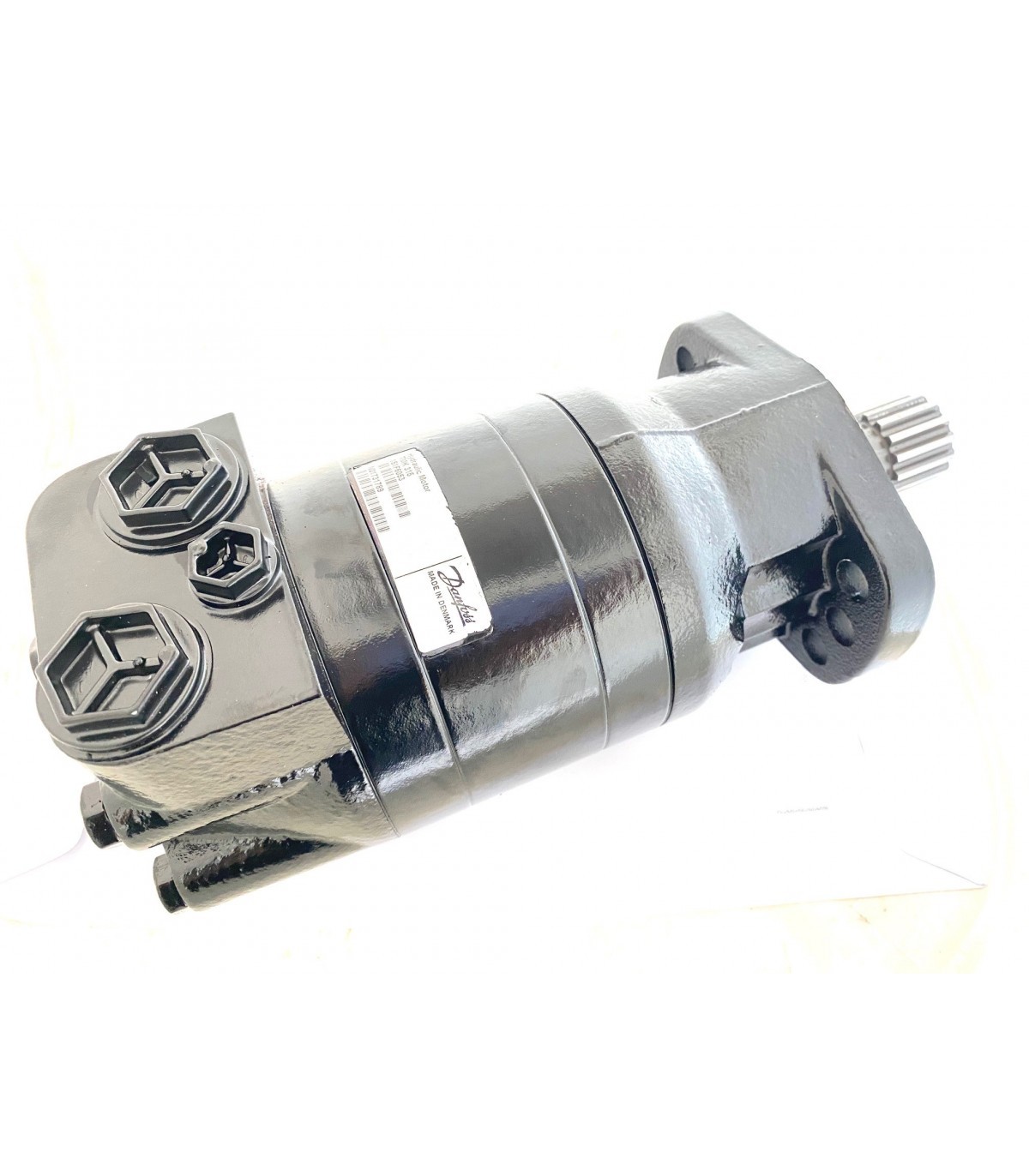

Orbital Motor TMK315 - 151F6053
Product Code:
151F6053
TMK 315 Low Speed High Torque motor, Geometric Displacement 315.3 cm3
SGD$1,402.55
(tax excl.)
TMK are suitable for continuous operation under rough operating conditions: e.g. high pressure, thin oil, or frequent reversals. The tapered roller bearings on the output shaft make the motors suitable for absorbing static and dynamic radial loads. Besides the separately driven and hydraulically balanced disc valve, hydraulic and mechanical losses are reduced to a minimum. This gives the motors high efficiency - even at high pressures, and good starting characteristics.
If the application requires very smooth running at low speeds the choice of TMK is recommended
Splined 14T output shaft 1-1/2" with 1 1/16-12 UN port
Splined Shaft ANS B92.1 - 1970 standard
Accessories (not included)
151F6053
Data sheet
- Unit weight
- 16kg
- Maximum Continuous Output Speed
- 255 rpm
- Maximum Intermittent Output Speed
- 315 rpm
- Maximum Continuous Output Torque
- 1050Nm
- Maximum Intermittent Output Torque
- 1310Nm
