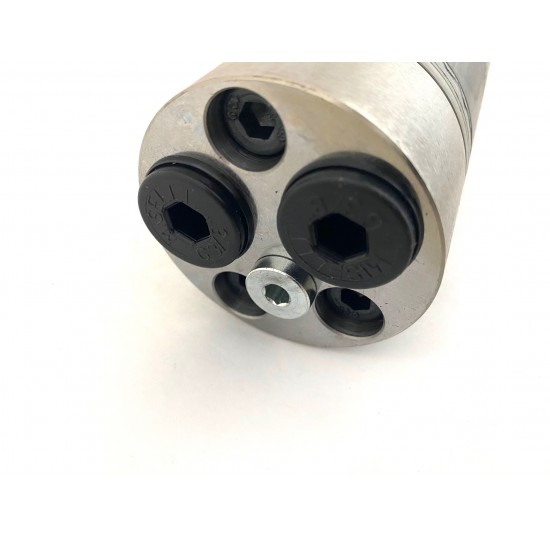

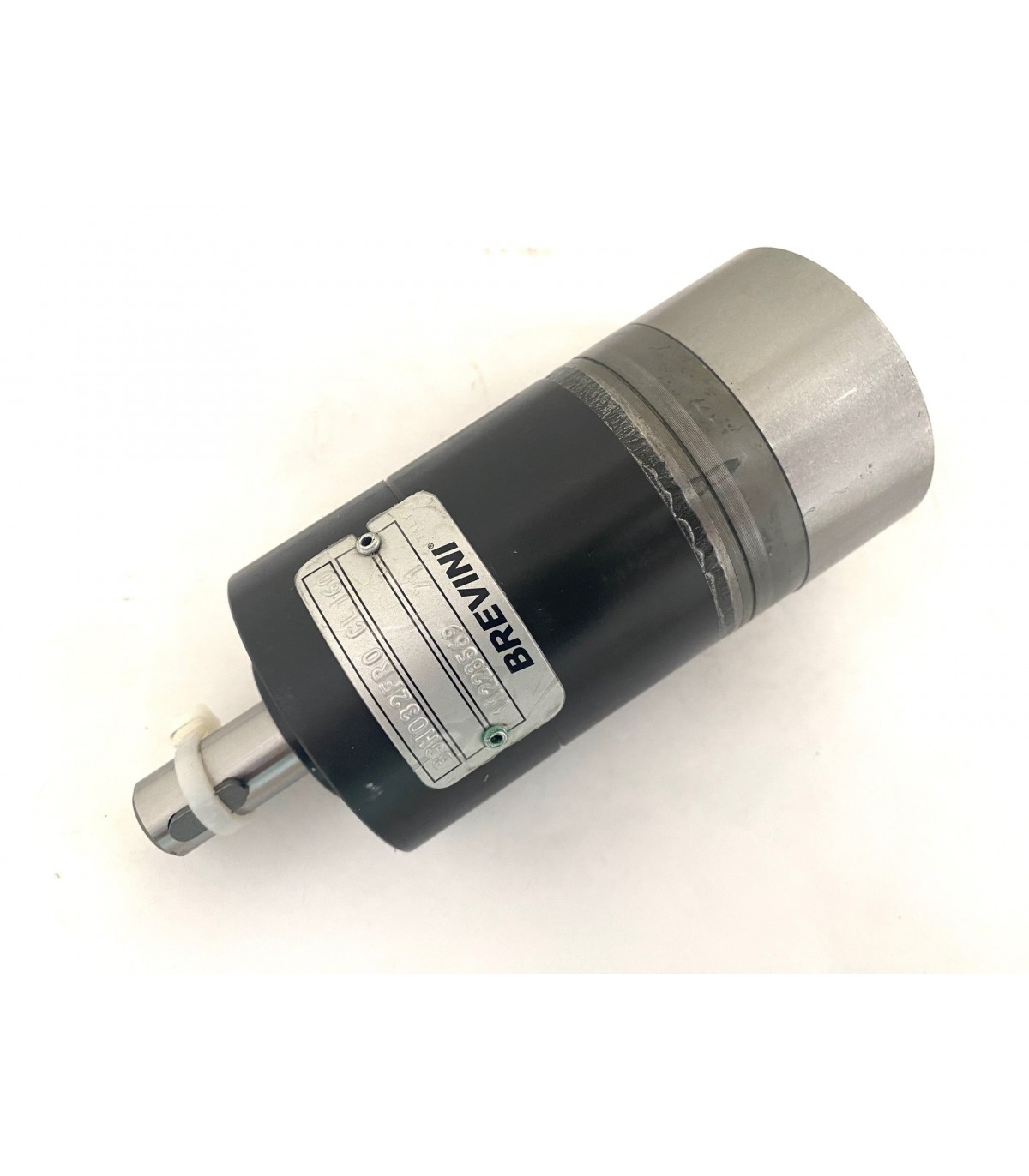

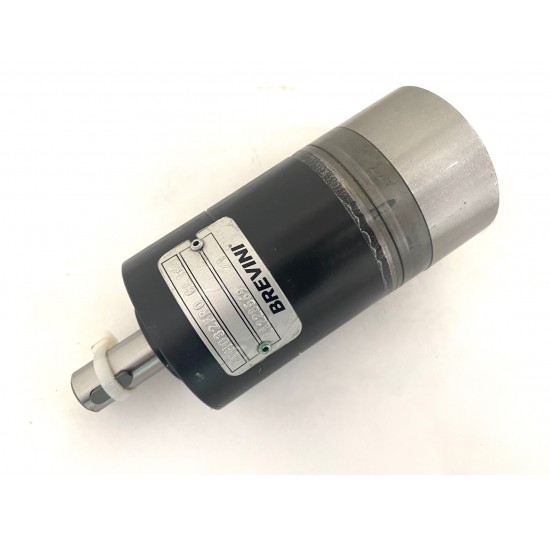

Orbital Motor B0020541
Product Code:
B0020541
- Low Speed High Torque motor, Geometric Displacement 31.8 cm³
Alternative substitute to 151G0003
Manufacturer:
SGD$323.33
(tax excl.)
BMG 032 FR0 S CL160 M06 N XXXX 000 XX QDG XX

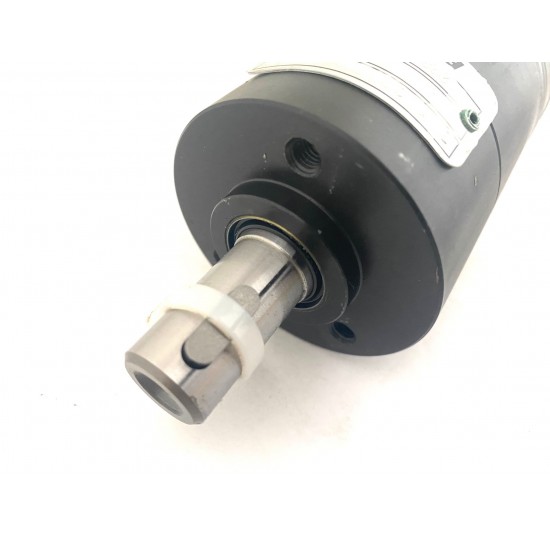

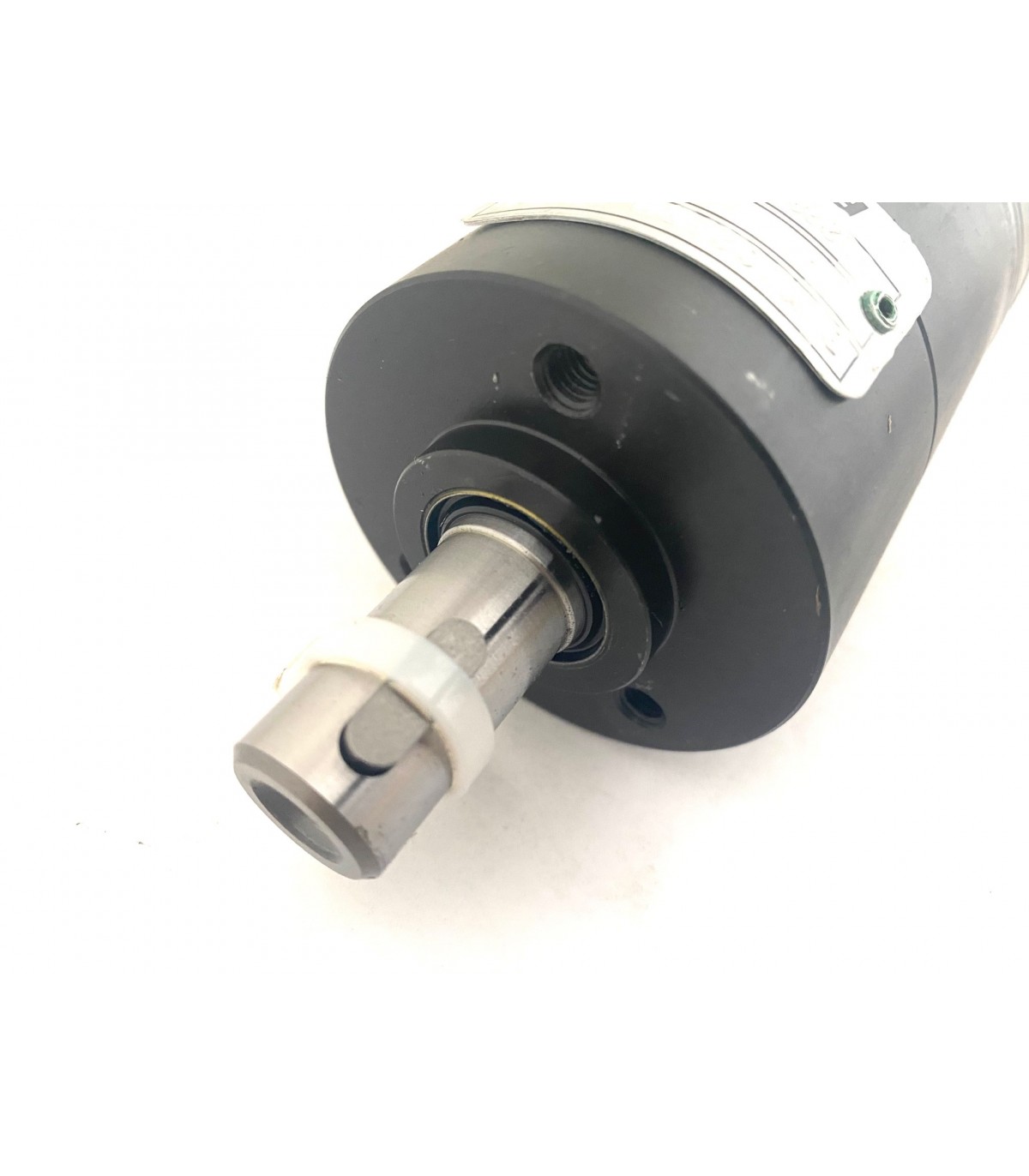

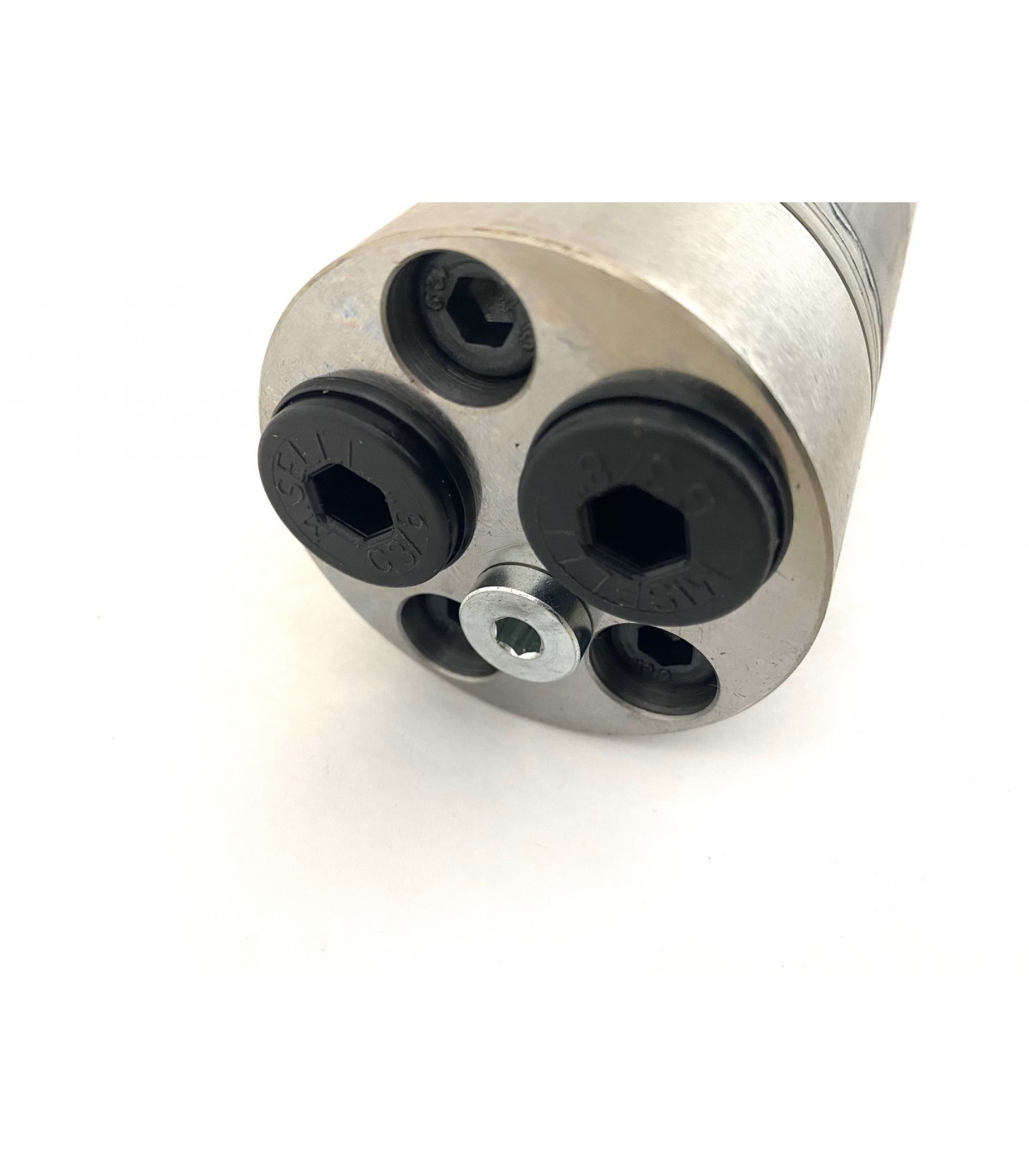

Cylindrical Output Shaft 16mm with 3/8 BSP end ports
Parallel key A5 x 5 x 16 DIN 6885
B0020541
Data sheet
- Unit weight
- 2.15kg
- Packing size
- 7 x 7 x 18 cm
- Maximum Continuous Output Speed
- 626 rpm
- Maximum Intermittent Output Speed
- 785 rpm
- Maximum Continuous Output Torque
- 39Nm
- Maximum Intermittent Output Torque
- 54Nm
