Established in 2013, PV Global is the sales partner & appointed Authorised Service Centre (ASC) for Danfoss Power Solution’s (DPS) range of Open Circuit Hydraulics products.

Find A Product

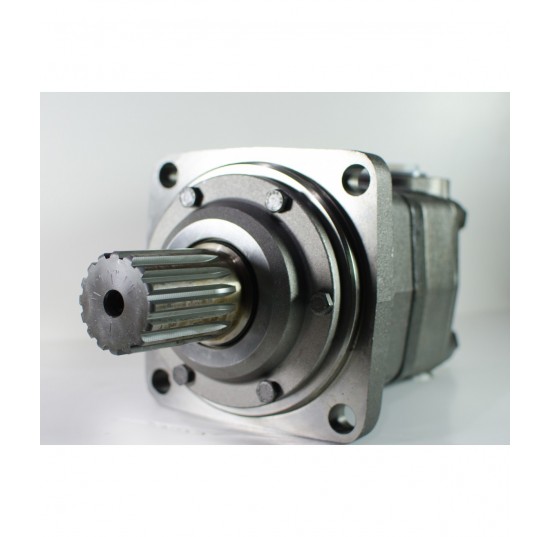

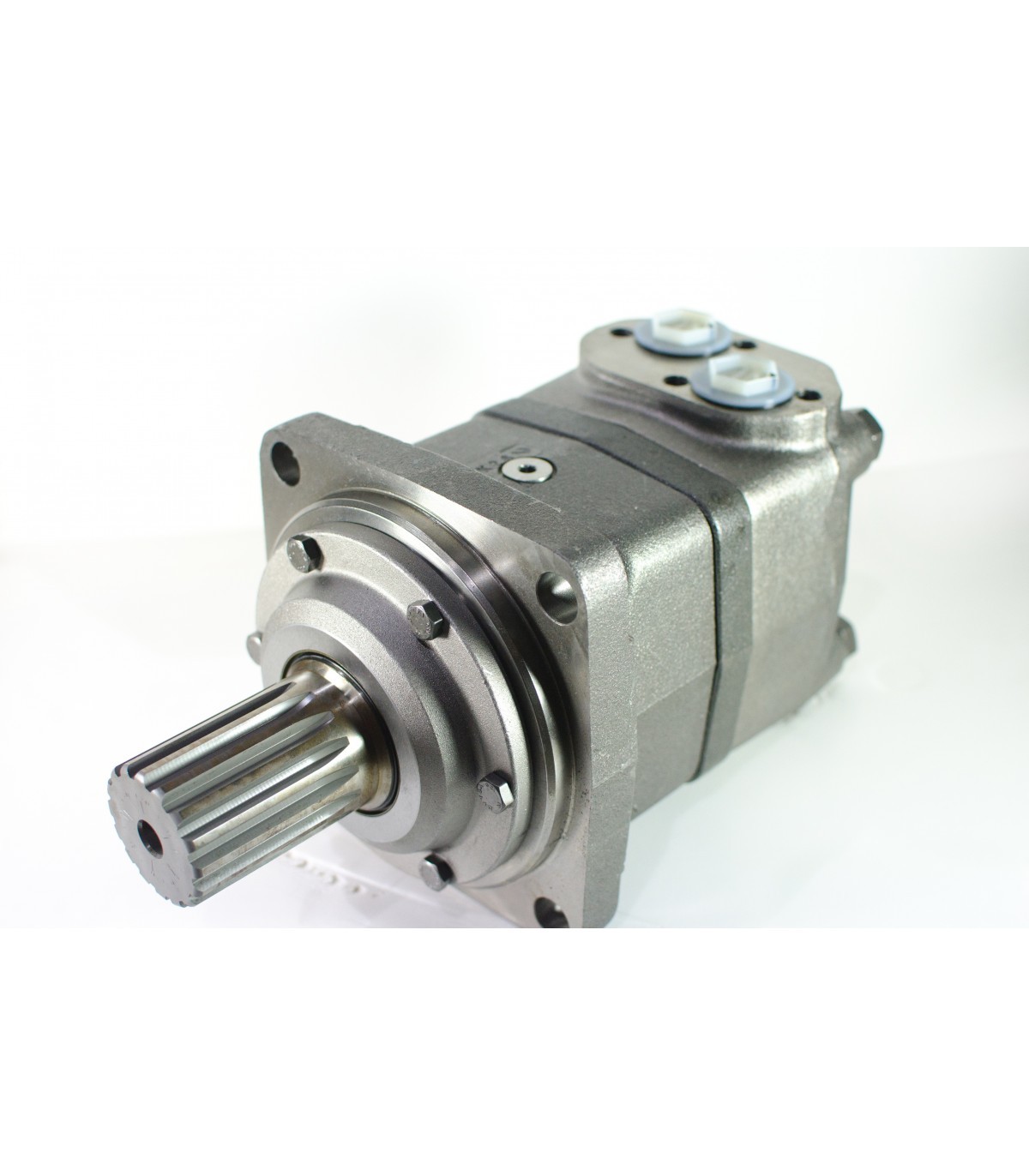

Orbital Motor OMV500 - 151B3107


OMV 500 Low Speed High Torque motor, Geometric Displacement 499.6 cm3

SGD$ 1,843.86


OMS, OMT, and OMV are suitable for continuous operation under rough operating conditions: e.g. high pressure, thin oil, or frequent reversals. The tapered roller bear­ings on the output shaft make the motors suitable for absorbing static and dynamic radial loads. Besides the separately driven and hydraulically balanced disc valve, hydraulic and mechanical losses are reduced to a minimum. This gives the motors high efficiency - even at high pressures, and good starting characteristics.

If the application requires very smooth running at low speeds the choice of OMS, OMT, OMV or TMT is recommended
Splined 16T output shaft 2.125" with G1 BSP port
Splined Shaft ANS B92.1 - 1970 standard

Accessories (not included):
1. Seal Kit 151B0129

Unit weight 33.5kg
Packing size 44 x 24 x 22cm
Maximum Continuous Output Speed 400 rpm
Maximum Intermittent Output Speed 480 rpm
Maximum Continuous Output Torque 1460Nm
Maximum Intermittent Output Torque 1760Nm
