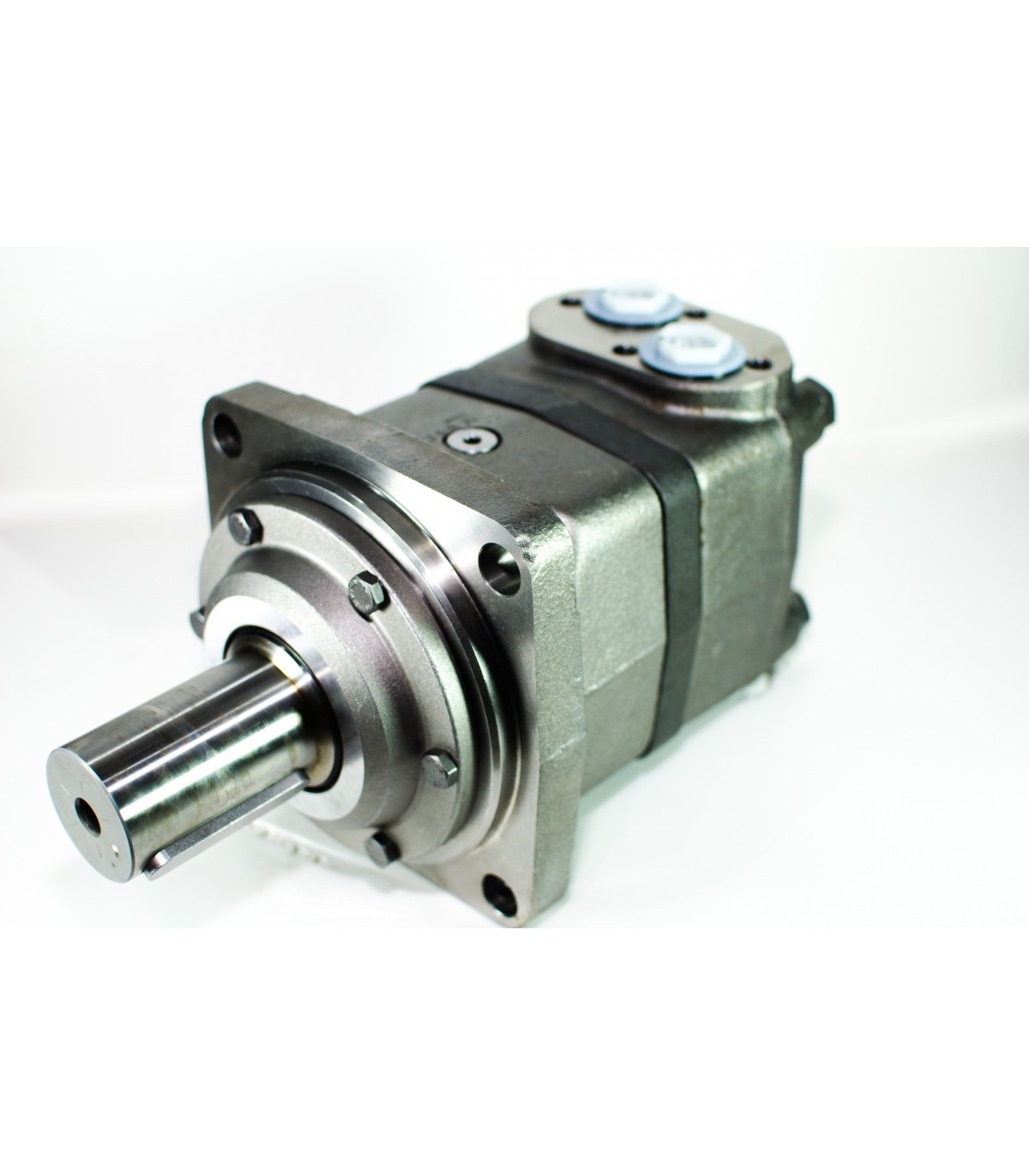

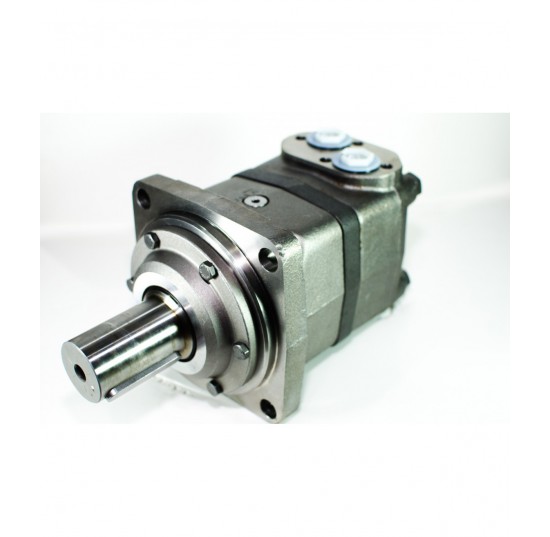

Orbital Motor OMV400 - 151B3101

Product Code:
151B3101

OMV 400 Low Speed High Torque motor, Geometric Displacement 400.9 cm3

Read moreShow less
Manufacturer:
SGD$1,740.17 (tax excl.)
Last items in stock 1 Item
More Info

OMS, OMT, and OMV are suitable for continuous operation under rough operating conditions: e.g. high pressure, thin oil, or frequent reversals. The tapered roller bear­ings on the output shaft make the motors suitable for absorbing static and dynamic radial loads. Besides the separately driven and hydraulically balanced disc valve, hydraulic and mechanical losses are reduced to a minimum. This gives the motors high efficiency - even at high pressures, and good starting characteristics.

If the application requires very smooth running at low speeds the choice of OMS, OMT, OMV or TMT is recommended

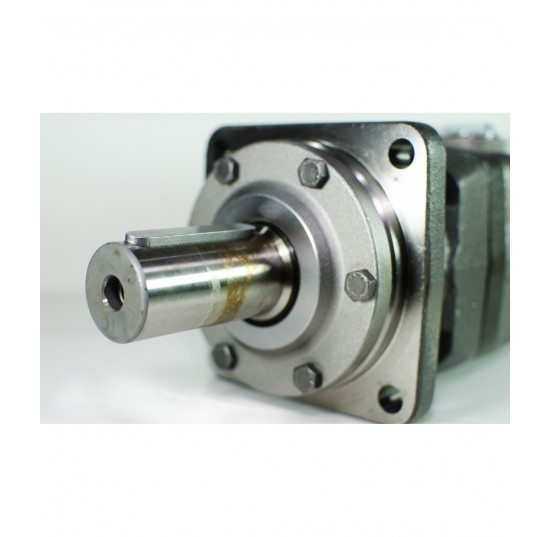

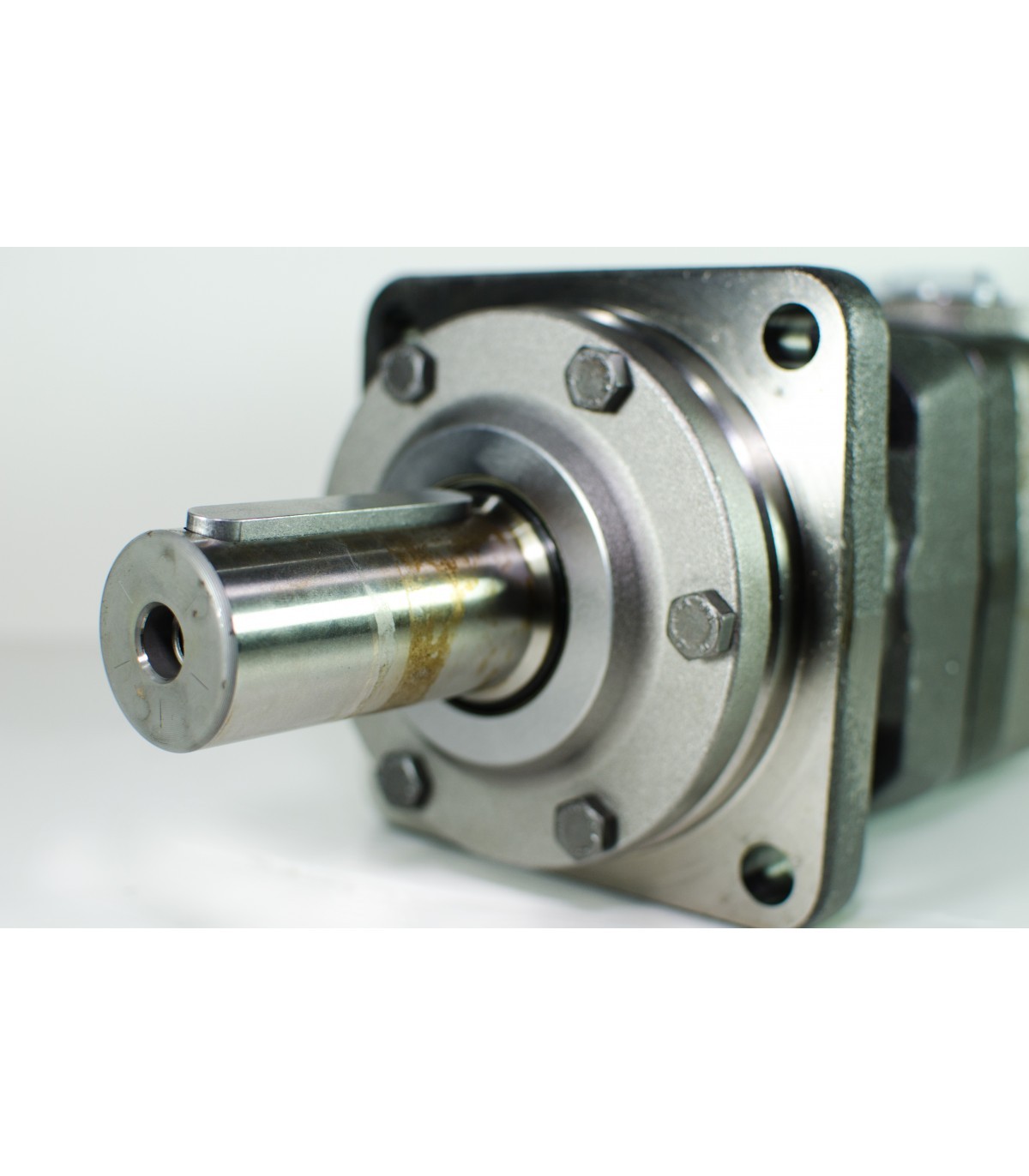

Cylindrical output shaft 50mm with G1 BSP port
Parallel key A14 x 9 x 70mm (DIN 6885) 682L8015

Accessories (not included):
1. Seal Kit 151B0129

Read moreShow less
Data Sheet
151B3101

Data sheet

Unit weight
32.6kg
Packing size
44 x 24 x 22cm
Maximum Continuous Output Speed
500 rpm
Maximum Intermittent Output Speed
600 rpm
Maximum Continuous Output Torque
1180Nm
Maximum Intermittent Output Torque
1410Nm
