SGD$2,131.71
(tax excl.)
OMVW 500 Low Speed High Torque motor, Geometric Displacement 499.6 cm3

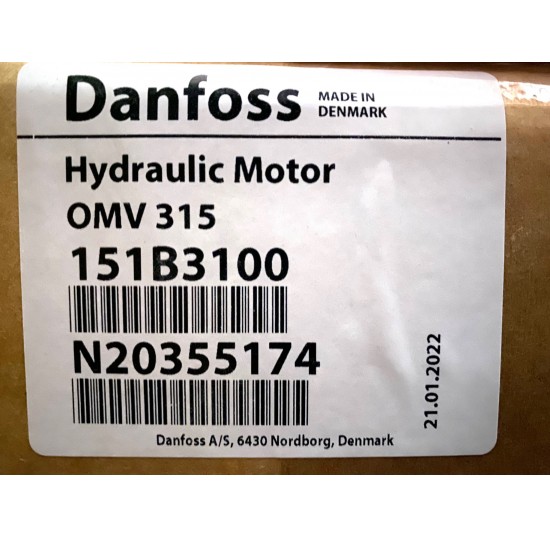

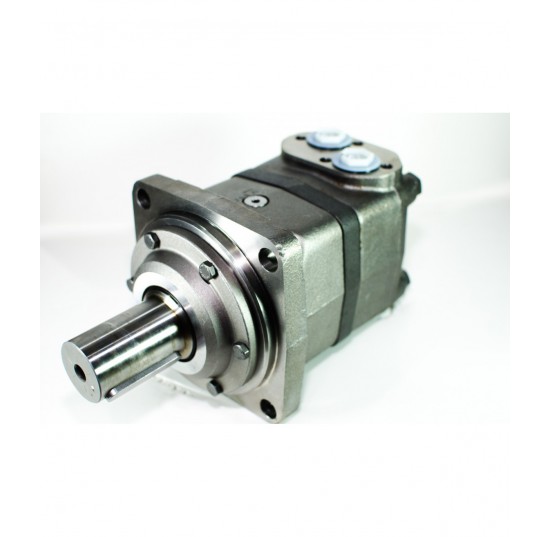

Orbital Motor OMV315 - 151B3100
Product Code:
151B3100
OMV 315 Low Speed High Torque motor, Geometric Displacement 314.5 cm3
Manufacturer:
SGD$1,612.50
(tax excl.)
OMS, OMT, and OMV are suitable for continuous operation under rough operating conditions: e.g. high pressure, thin oil, or frequent reversals. The tapered roller bearings on the output shaft make the motors suitable for absorbing static and dynamic radial loads. Besides the separately driven and hydraulically balanced disc valve, hydraulic and mechanical losses are reduced to a minimum. This gives the motors high efficiency - even at high pressures, and good starting characteristics.
If the application requires very smooth running at low speeds the choice of OMS, OMT, OMV or TMT is recommended

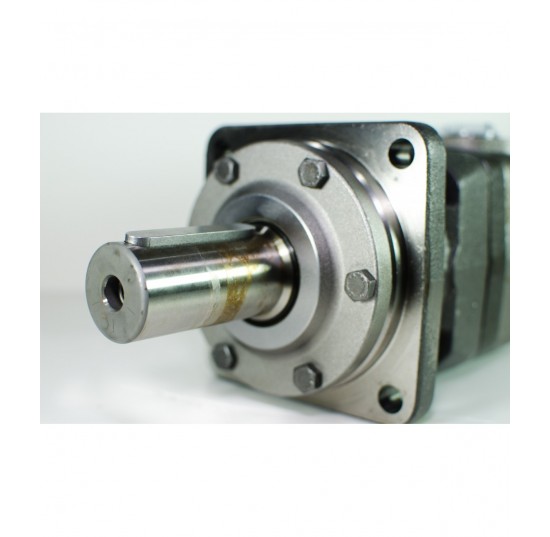

Cylindrical output shaft 50mm with G1 BSP port
Parallel key A14 x 9 x 70mm (DIN 6885) 682L8015
Accessories (not included):
1. Seal Kit 151B0129
151B3100
Data sheet
- Unit weight
- 31.8kg
- Packing size
- 44 x 24 x 22cm
- Maximum Continuous Output Speed
- 510 rpm
- Maximum Intermittent Output Speed
- 630 rpm
- Maximum Continuous Output Torque
- 920Nm
- Maximum Intermittent Output Torque
- 1110Nm
