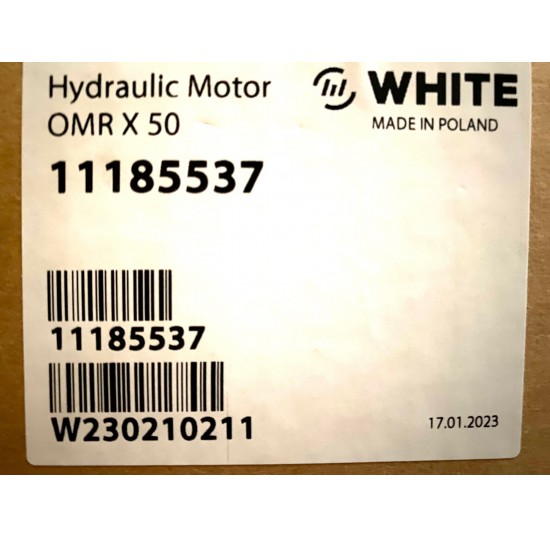

Orbital Motor OMR x 50 - 11185537

Product Code:
11185537

OMR X 50 Low Speed High Torque motor, Geometric Displacement 51.6 cm3

Read moreShow less
Manufacturer:
SGD$436.38 (tax excl.)
More Info

The rollers in the gear rim reduce local stress, spread the tooth load over their projected area and reduce the tangential reaction forces on the inner gear reducing friction to a minimum. This gives long operating life and better efficiency even at continuous high pressures. Gearwheel sets with rollers are recommended for operation with thin oil and for applications having continually reversing loads. Some of the common medium duty applications include auger/winch/conveyor drive with planetary gearbox, sweeper brush, slewing application for crane, small road-roller propel, etc
Cylindrical output shaft 25mm with 1/2 BSP side ports
Parallel key A8 x 7 x 32 DIN 6885 682L8035

Accessories (not included):
1. Seal Kit 151-1286

Read moreShow less
Data Sheet
11185537

Data sheet

Unit weight
6.7kg
Packing size
29 x 14 x 11 cm
Maximum Continuous Output Speed
775 rpm
Maximum Intermittent Output Speed
970 rpm
Maximum Continuous Output Torque
100Nm
Maximum Intermittent Output Torque
120Nm
