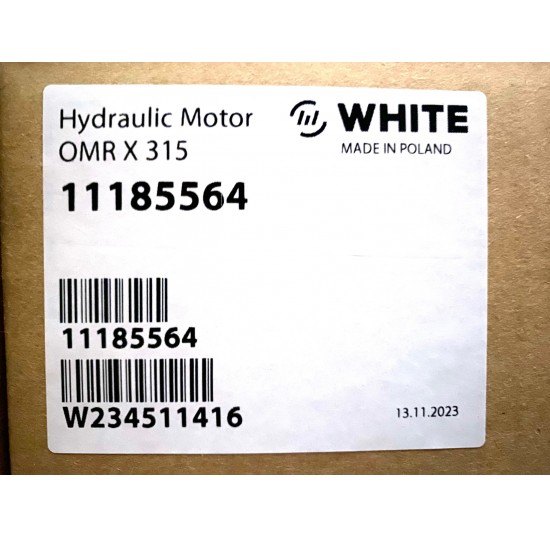

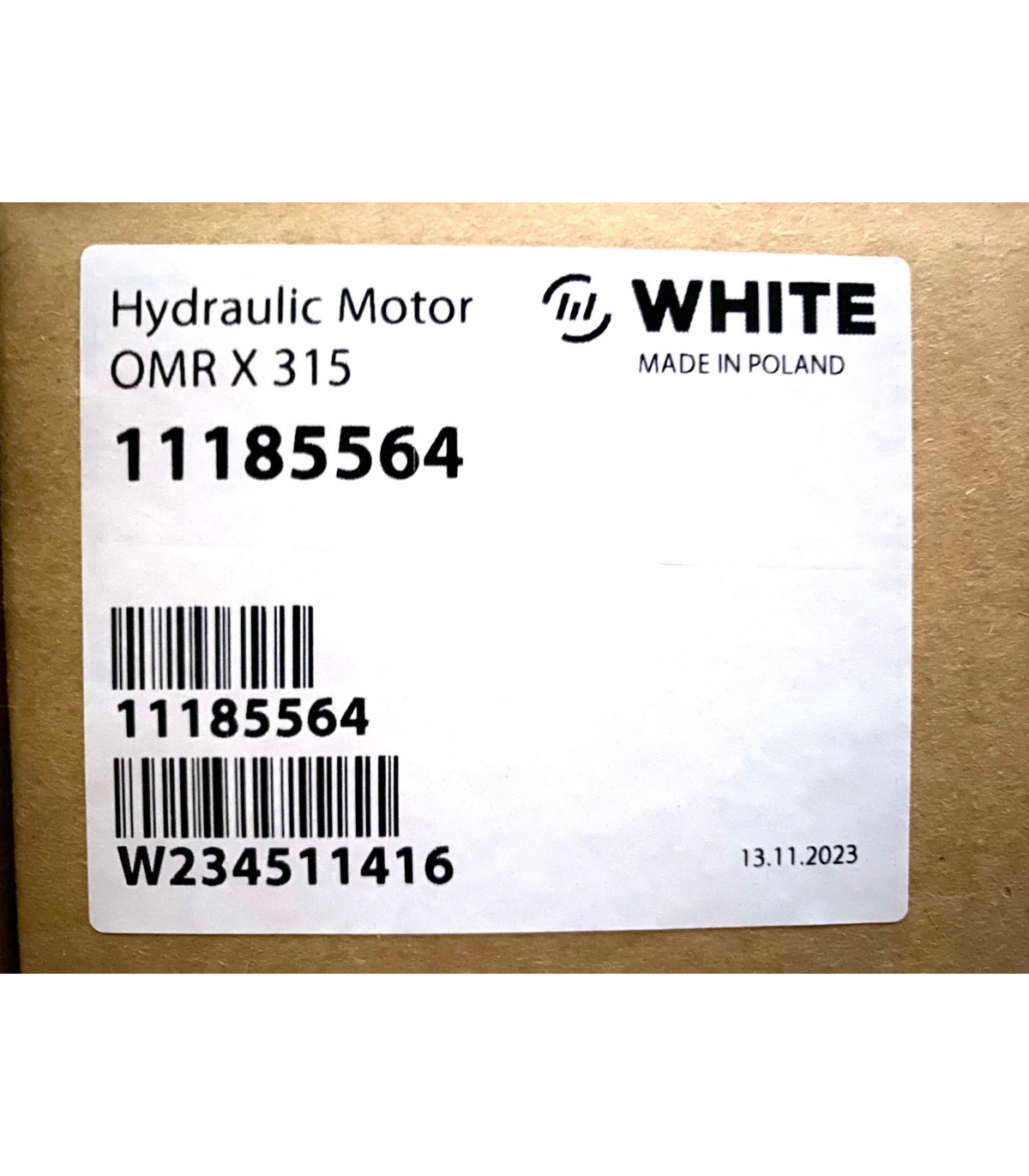

Orbital Motor OMR x 315 - 11185564

11185564

OMR X 315 Low Speed High Torque motor, Geometric Displacement 315.7 cm3

SGD$ 525.54

Qty

The rollers in the gear rim reduce local stress, spread the tooth load over their projected area and reduce the tangential reaction forces on the inner gear reducing friction to a minimum. This gives long operating life and better efficiency even at continuous high pressures. Gearwheel sets with rollers are recommended for operation with thin oil and for applications having continually reversing loads. Some of the common medium duty applications include auger/winch/conveyor drive with planetary gearbox, sweeper brush, slewing application for crane, small road-roller propel, etc
Splined output shaft 1" with 1/2 BSP side ports
Splined Shaft B.S. 2059 (SAE 6 B)

Accessories (not included):
1. Seal Kit 11188319

Unit weight 9.0kg
Packing size 29 x 14 x 11 cm
Maximum Continuous Output Speed 195 rpm
Maximum Intermittent Output Speed 245 rpm
Maximum Continuous Output Torque 400Nm
Maximum Intermittent Output Torque 550Nm
