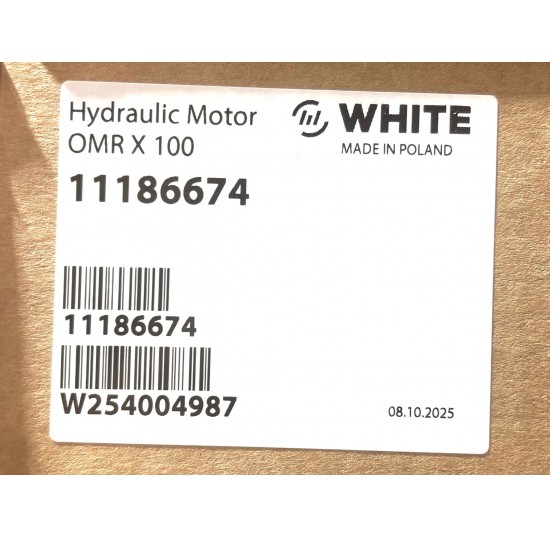

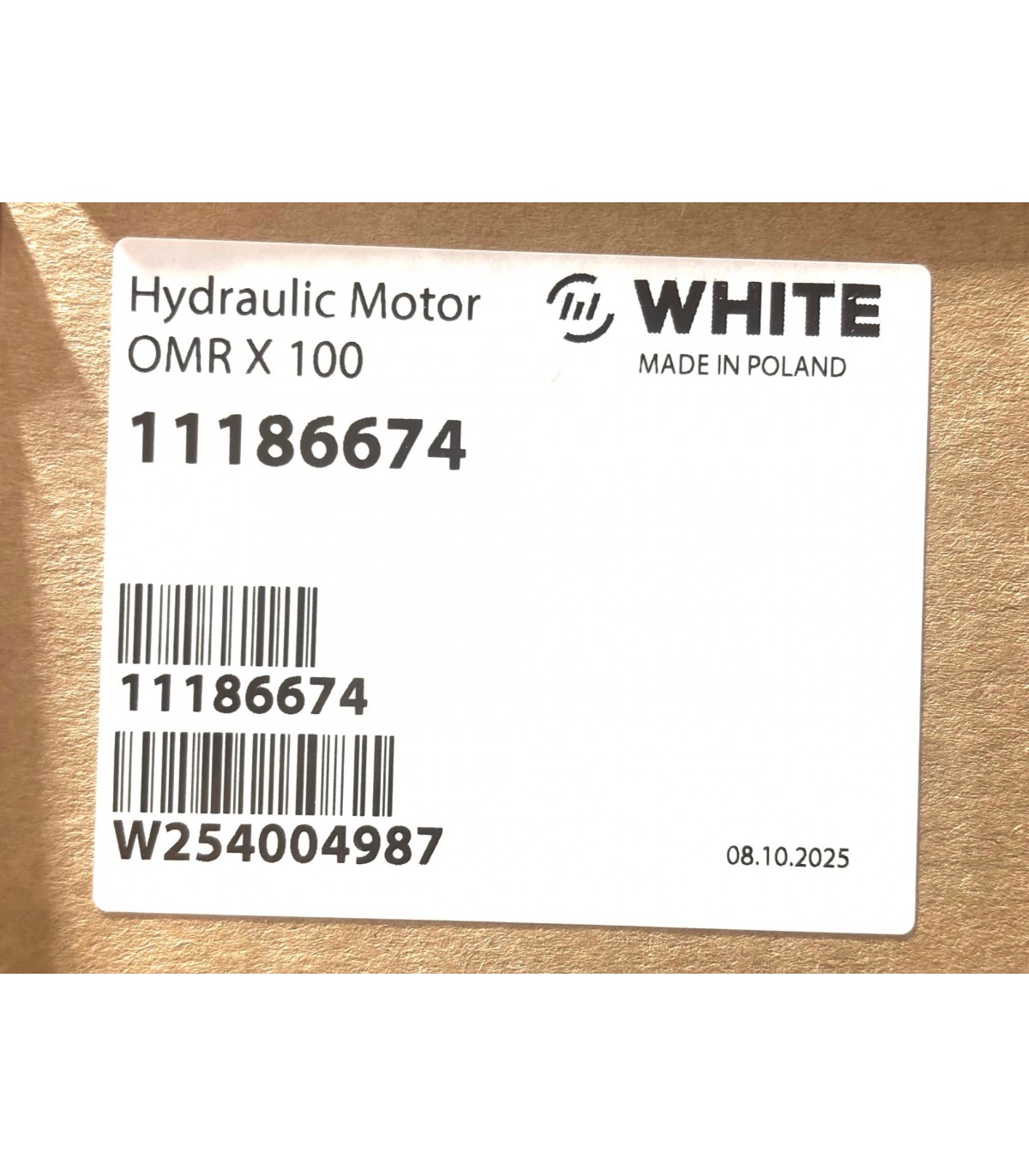

Orbital Motor OMR X 100 - 11186674
Product Code:
11186674
OMR X 100 Low Speed High Torque motor, Geometric Displacement 99.8 cm3
Manufacturer:
SGD$422.12
(tax excl.)
The rollers in the gear rim reduce local stress, spread the tooth load over their projected area and reduce the tangential reaction forces on the inner gear reducing friction to a minimum. This gives long operating life and better efficiency even at continuous high pressures. Gearwheel sets with rollers are recommended for operation with thin oil and for applications having continually reversing loads. Some of the common medium duty applications include auger/winch/conveyor drive with planetary gearbox, sweeper brush, slewing application for crane, small road-roller propel, etc
Cylindrical output shaft 25mm with 1/2 BSP side ports
Parallel key A8 x 7 x 32 DIN 6885 682L8035
Accessories (not included):
1. Seal Kit 11188319
11186674
Data sheet
- Unit weight
- 7.0kg
- Packing size
- 29 x 14 x 11 cm
- Maximum Continuous Output Speed
- 600 rpm
- Maximum Intermittent Output Speed
- 750 rpm
- Maximum Continuous Output Torque
- 275Nm
- Maximum Intermittent Output Torque
- 300Nm
