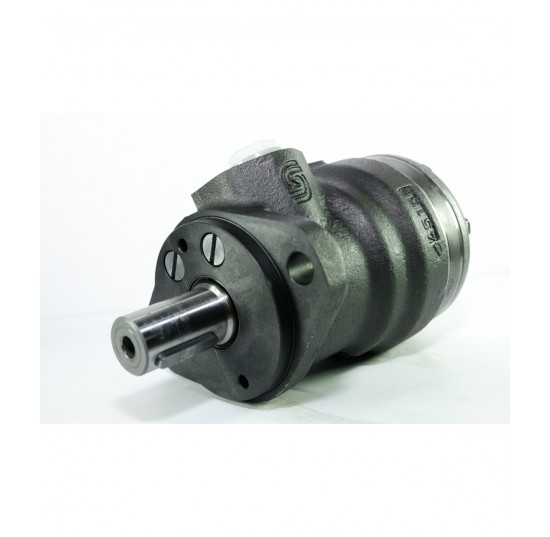

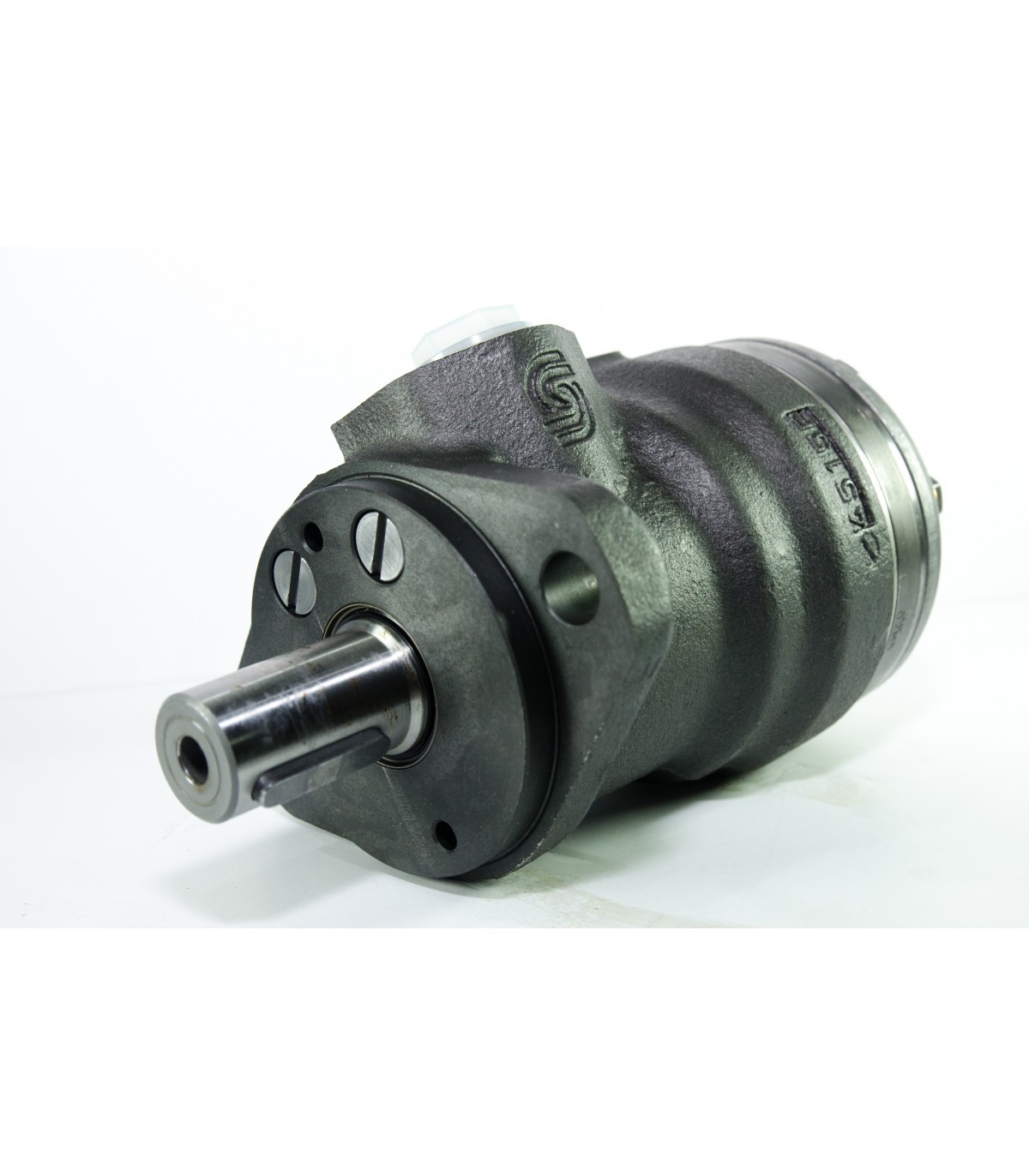

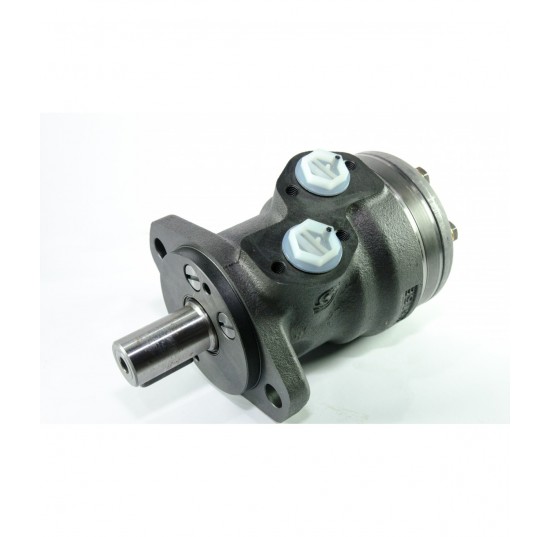

OMR 100 Low Speed High Torque motor, Geometric Displacement 99.8 cm3
Warning: Last items in stock!
The rollers in the gear rim reduce local stress, spread the tooth load over their projected area and reduce the tangential reaction forces on the inner gear reducing friction to a minimum. This gives long operating life and better efficiency even at continuous high pressures. Gearwheel sets with rollers are recommended for operation with thin oil and for applications having continually reversing loads. Some of the common medium duty applications include auger/winch/conveyor drive with planetary gearbox, sweeper brush, slewing application for crane, small road-roller propel, etc
Cylindrical output shaft 1" with 1/2 BSP side ports
Parallel key 1/4" x 1/4" x 1-1/4" B.S. 46 682L8036
Accessories (not included):
1. Seal Kit 151-1286
|Packing size||29 x 14 x 11 cm|
|Maximum Continuous Output Speed||600 rpm|
|Maximum Intermittent Output Speed||750 rpm|
|Maximum Continuous Output Torque||240Nm|
|Maximum Intermittent Output Torque||280Nm|
