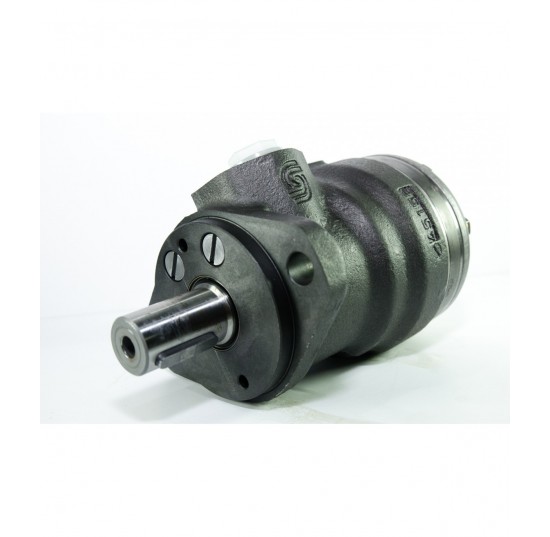

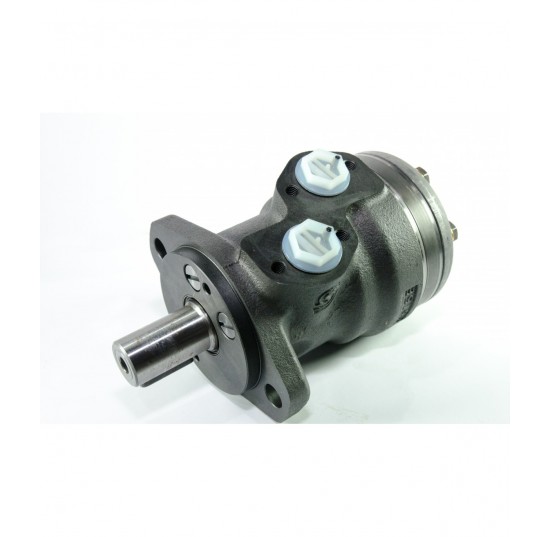

Orbital Motor OMR80 - 151-0242

Product Code:
151-0242

OMR 80 Low Speed High Torque motor, Geometric Displacement 80.3cm3

Read moreShow less
Manufacturer:
SGD$475.41 (tax excl.)
Last items in stock 1 Item
More Info

The rollers in the gear rim reduce local stress, spread the tooth load over their projected area and reduce the tangential reaction forces on the inner gear reducing friction to a minimum. This gives long operating life and better efficiency even at continuous high pressures. Gearwheel sets with rollers are recommended for operation with thin oil and for applications having continually reversing loads. Some of the common medium duty applications include auger/winch/conveyor drive with planetary gearbox, sweeper brush, slewing application for crane, small road-roller propel, etc
Cylindrical output shaft 32mm with 1/2 BSP side ports
Parallel key A10 x 8 x 45 DIN 6885 682L8019

Accessories (not included):
1. Seal Kit 151-1166

Read moreShow less
Data Sheet
151-0242

Data sheet

Unit weight
6.9kg
Packing size
29 x 14 x 11 cm
Maximum Continuous Output Speed
750 rpm
Maximum Intermittent Output Speed
940 rpm
Maximum Continuous Output Torque
195Nm
Maximum Intermittent Output Torque
220Nm

Orbital Motor OMR80 - 151-0242

SGD$475.41
