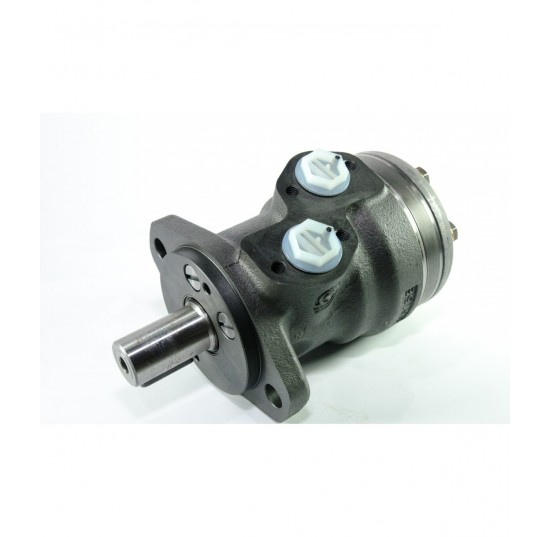

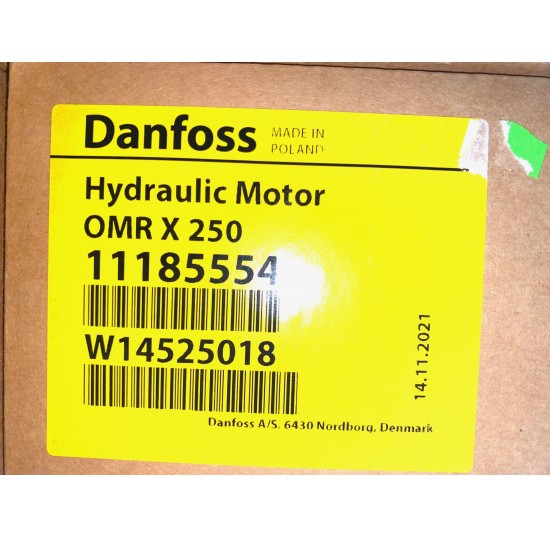

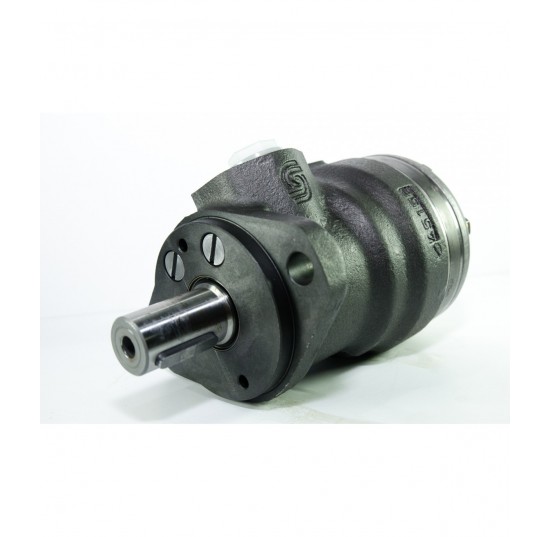

Orbital Motor OMR x 250 - 11185554

11185554

OMR X 250 Low Speed High Torque motor, Geometric Displacement 248.1 cm3

SGD$ 520.57

Qty

The rollers in the gear rim reduce local stress, spread the tooth load over their projected area and reduce the tangential reaction forces on the inner gear reducing friction to a minimum. This gives long operating life and better efficiency even at continuous high pressures. Gearwheel sets with rollers are recommended for operation with thin oil and for applications having continually reversing loads. Some of the common medium duty applications include auger/winch/conveyor drive with planetary gearbox, sweeper brush, slewing application for crane, small road-roller propel, etc
Cylindrical output shaft 1" with 1/2 BSP side ports
Parallel key 1/4" x 1/4" x 1-1/4" B.S. 46 682L8036

Accessories (not included):
1. Seal Kit 11188319

Unit weight 10.0kg
Packing size 29 x 14 x 11 cm
Maximum Continuous Output Speed 240rpm
Maximum Intermittent Output Speed 300rpm
Maximum Continuous Output Torque 340Nm
Maximum Intermittent Output Torque 450Nm
