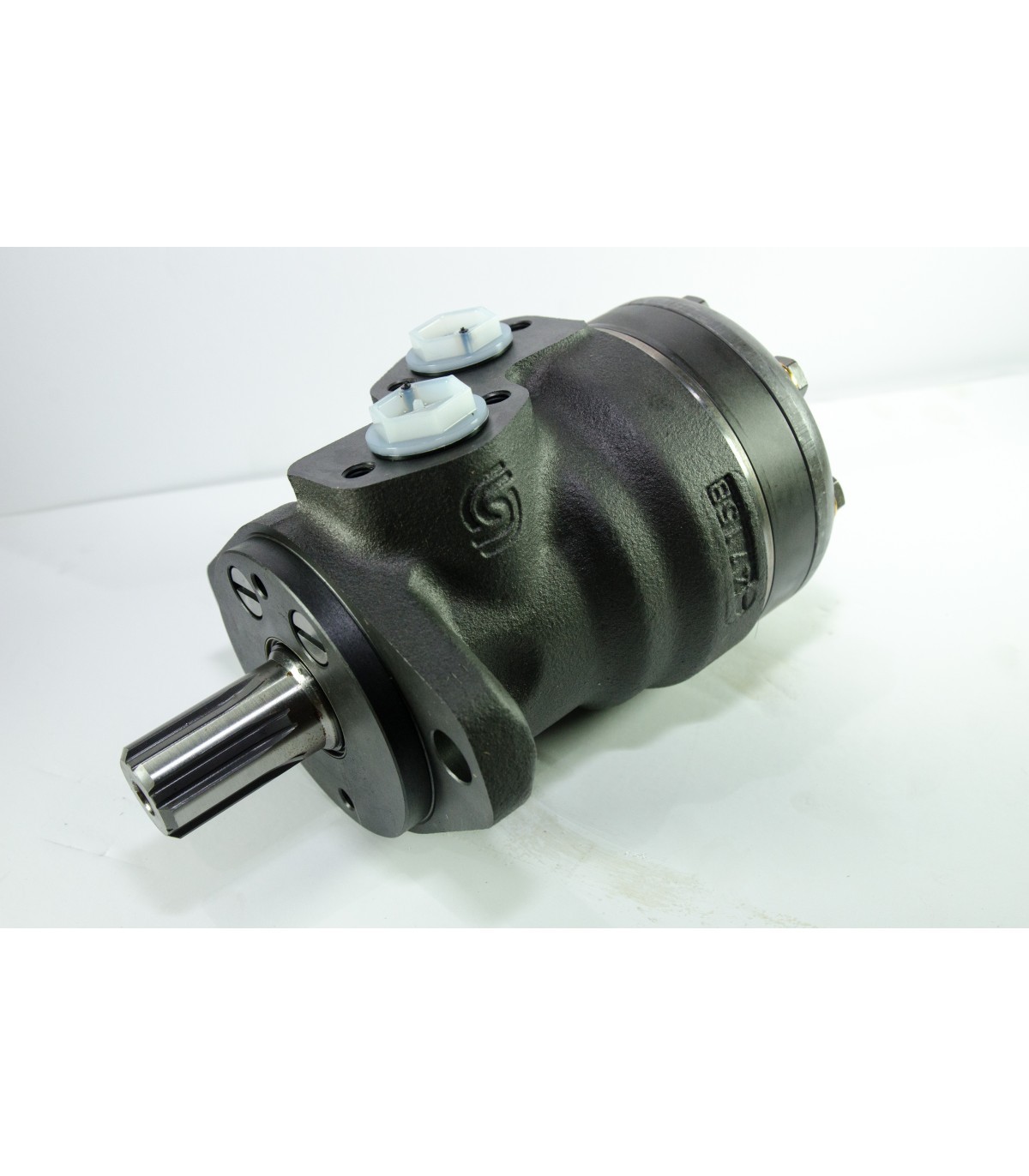

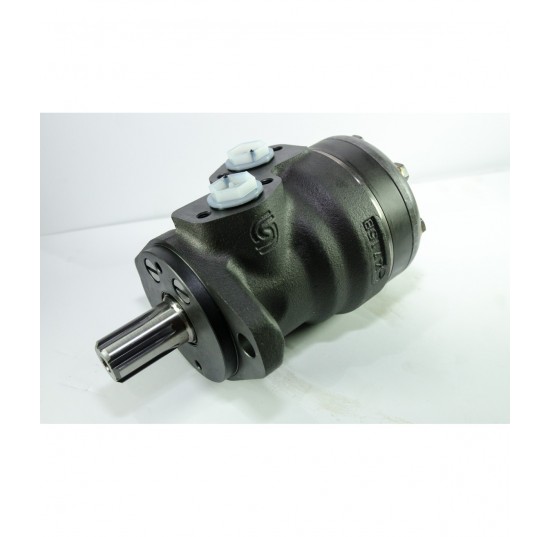

Orbital Motor OMR160 - 151-0724

Product Code:
151-0724

OMR 160 Low Speed High Torque motor, Geometric Displacement 159.6 cm3

Read moreShow less
Manufacturer:
SGD$493.20 (tax excl.)
More Info

The rollers in the gear rim reduce local stress, spread the tooth load over their projected area and reduce the tangential reaction forces on the inner gear reducing friction to a minimum. This gives long operating life and better efficiency even at continuous high pressures. Gearwheel sets with rollers are recommended for operation with thin oil and for applications having continually reversing loads. Some of the common medium duty applications include auger/winch/conveyor drive with planetary gearbox, sweeper brush, slewing application for crane, small road-roller propel, etc

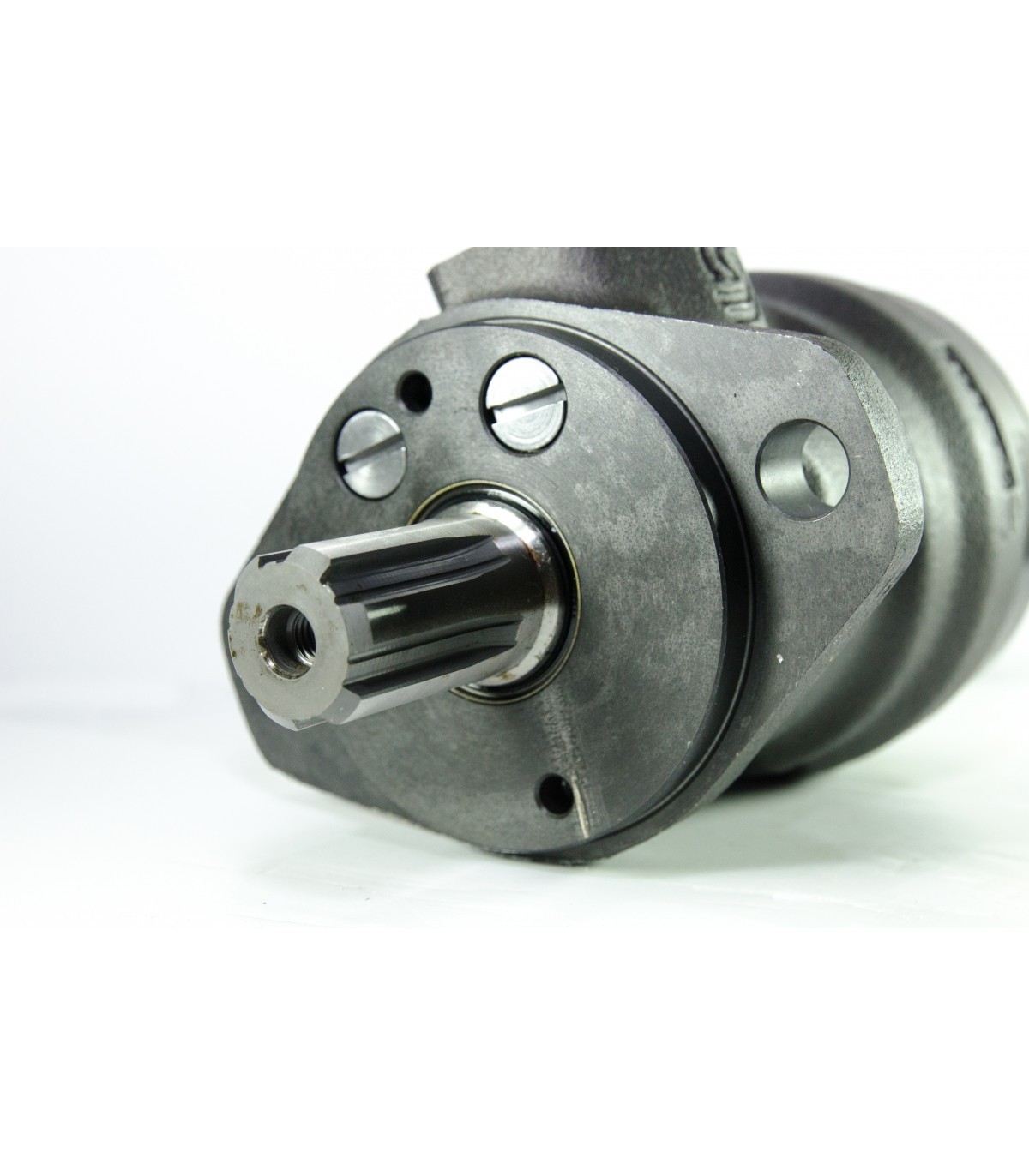

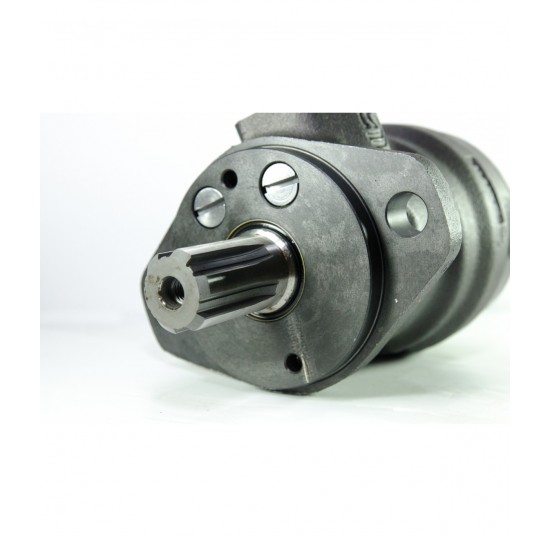

Splined output shaft 1" with 1/2 BSP side ports
Splined Shaft B.S. 2059 (SAE 6 B)

Accessories (not included):
1. Seal Kit 151-1286

Read moreShow less
Data Sheet
151-0724

Data sheet

Unit weight
7.5kg
Packing size
29 x 14 x 11 cm
Maximum Continuous Output Speed
375 rpm
Maximum Intermittent Output Speed
470 rpm
Maximum Continuous Output Torque
300Nm
Maximum Intermittent Output Torque
390Nm

Orbital Motor OMR160 -...

SGD$493.20
