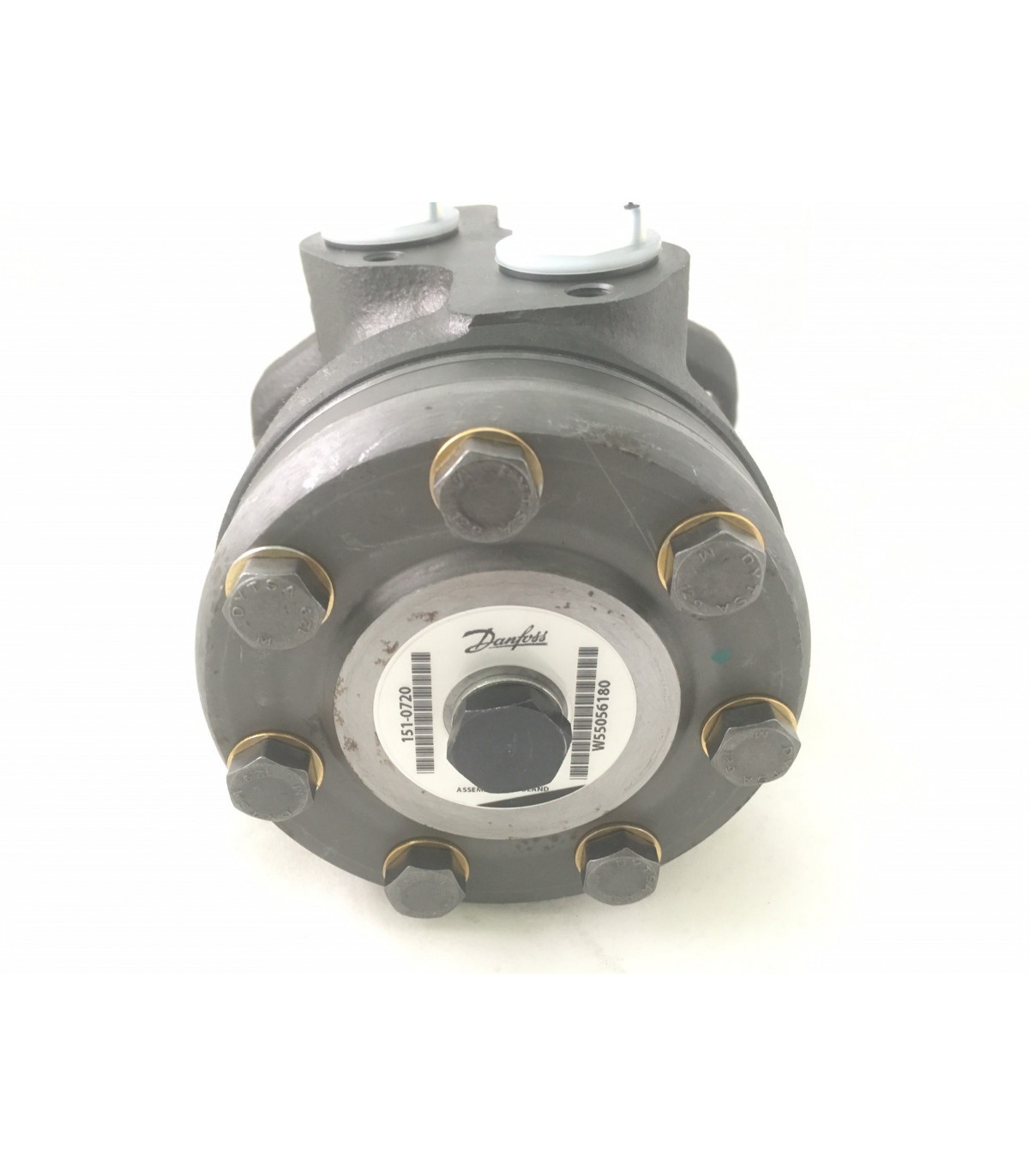

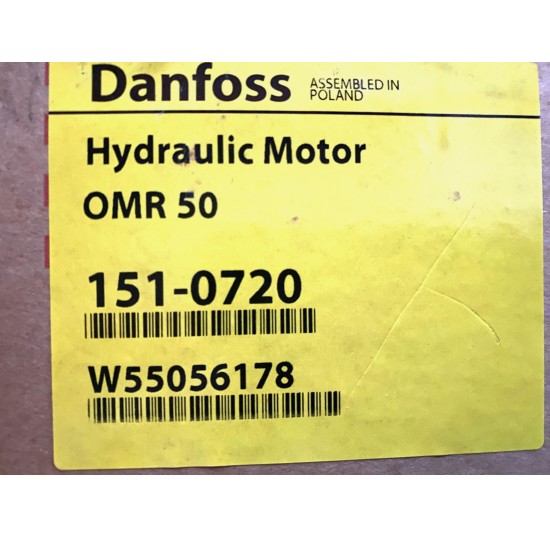

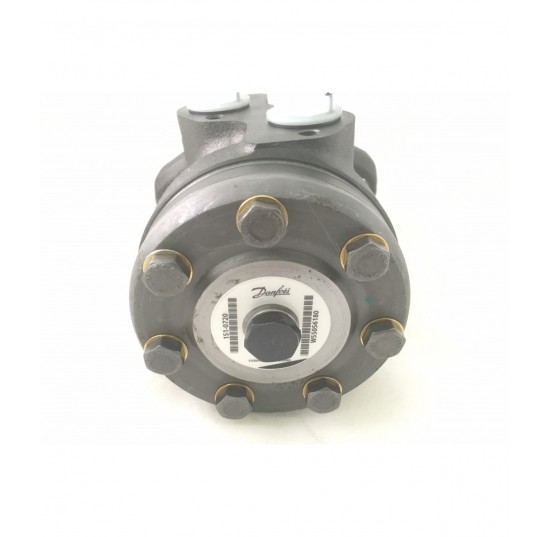

Orbital Motor OMR50 - 151-0720


OMR 50 Low Speed High Torque motor, Geometric Displacement 51.6 cm3

SGD$ 459.24


The rollers in the gear rim reduce local stress, spread the tooth load over their projected area and reduce the tangential reaction forces on the inner gear reducing friction to a minimum. This gives long operating life and better efficiency even at continuous high pressures. Gearwheel sets with rollers are recommended for operation with thin oil and for applications having continually reversing loads. Some of the common medium duty applications include auger/winch/conveyor drive with planetary gearbox, sweeper brush, slewing application for crane, small road-roller propel, etc

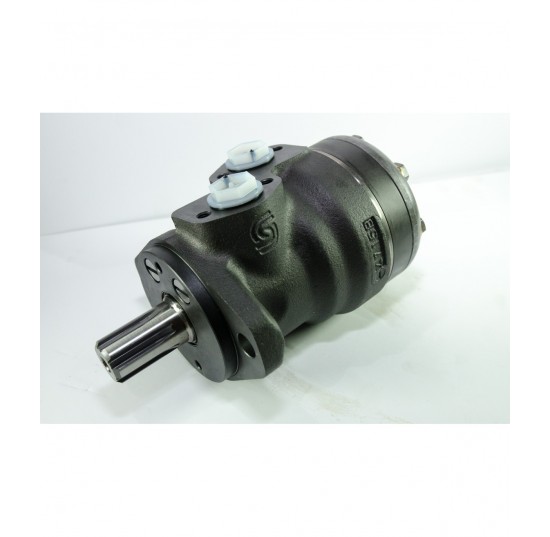

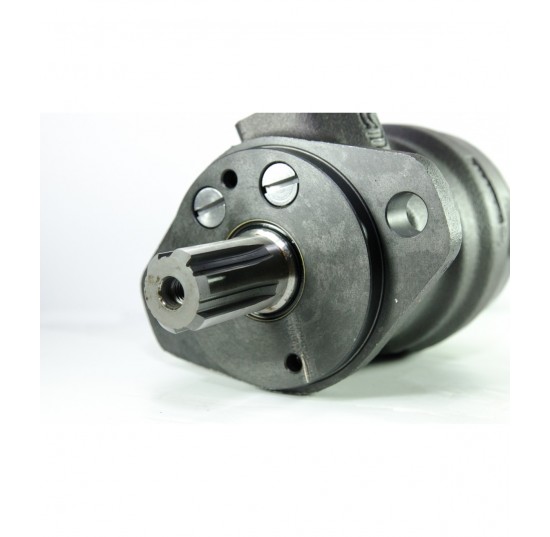

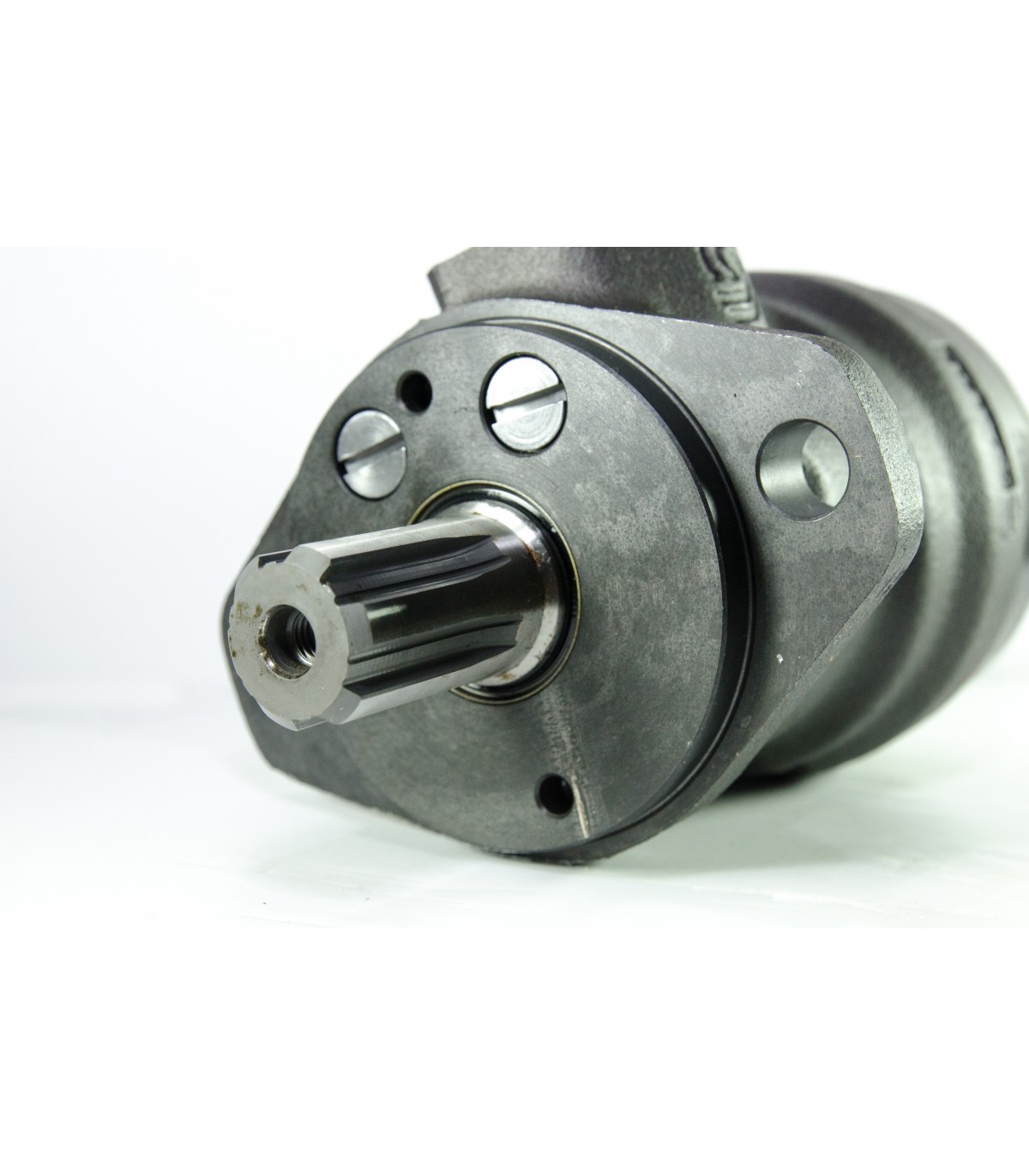

Splined output shaft 1" with 1/2 BSP side ports
Splined Shaft B.S. 2059 (SAE 6 B)

Accessories (not included):
1. Seal Kit 151-1286

Unit weight 6.7kg
Packing size 29 x 14 x 11 cm
Maximum Continuous Output Speed 775 rpm
Maximum Intermittent Output Speed 970 rpm
Maximum Continuous Output Torque 100Nm
Maximum Intermittent Output Torque 130Nm
