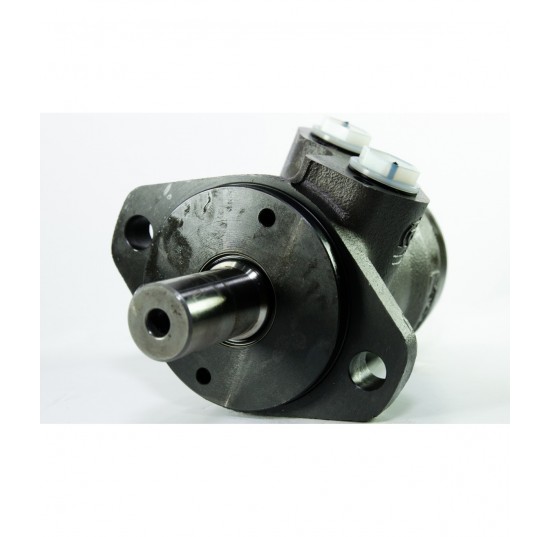

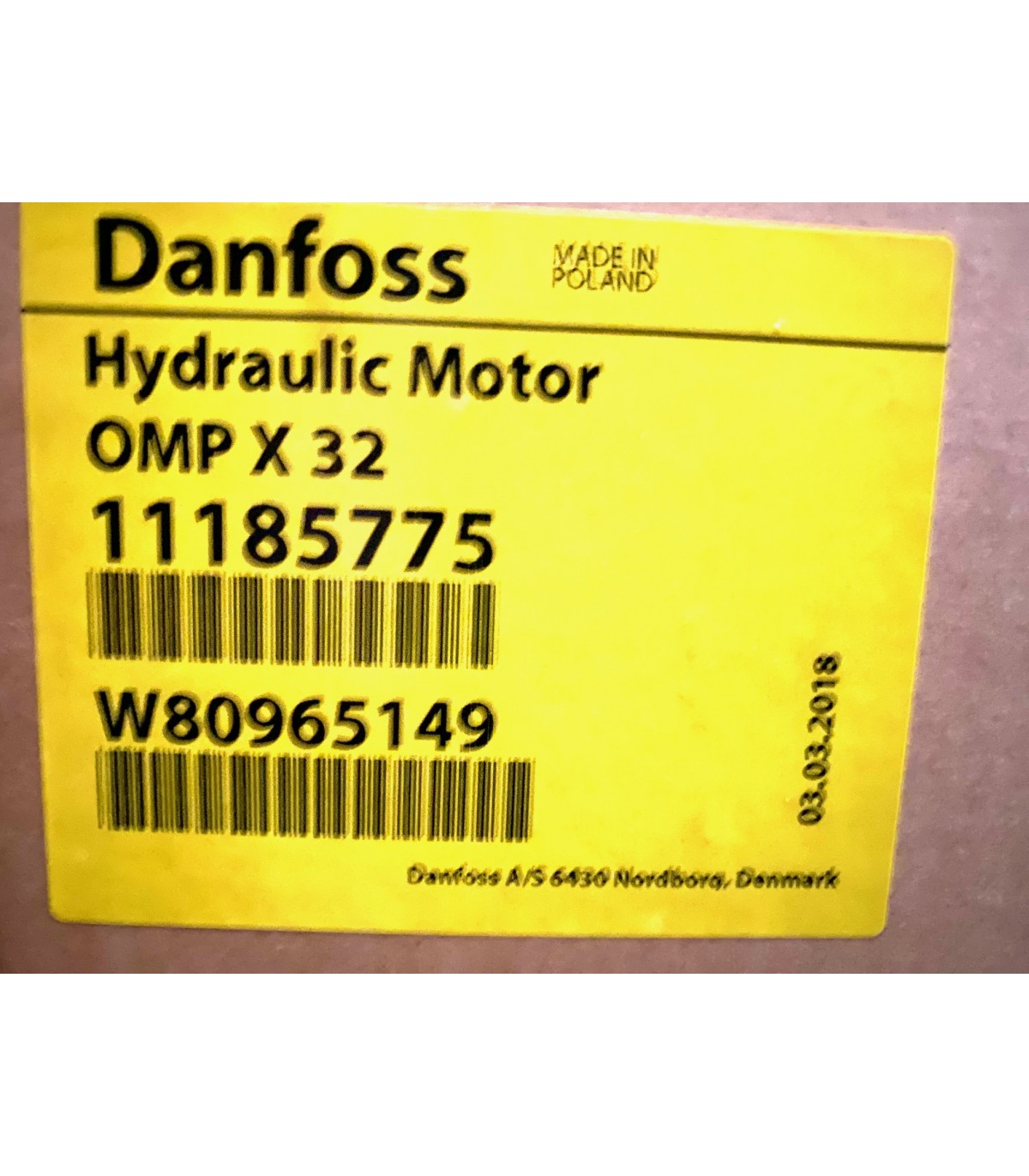

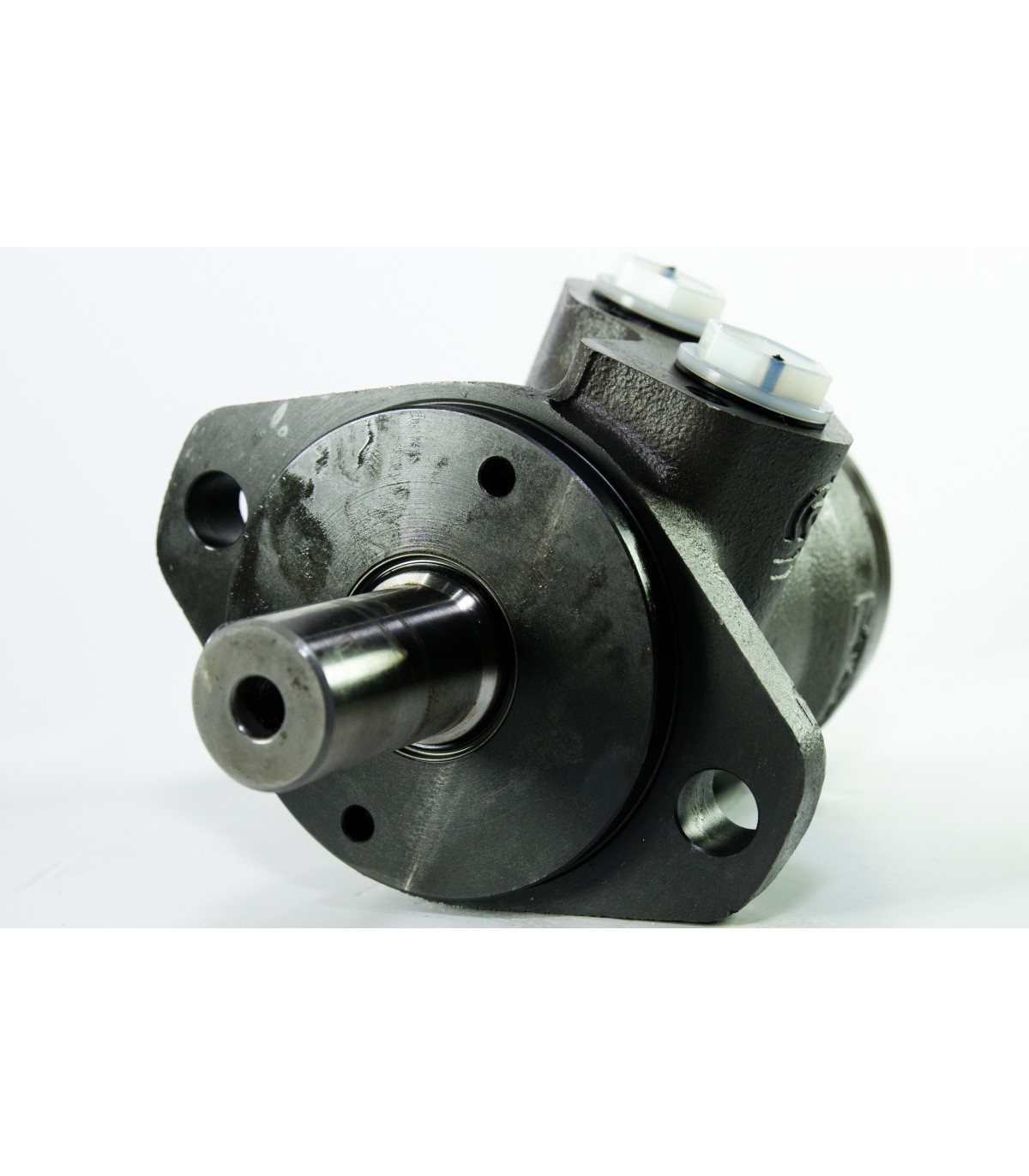

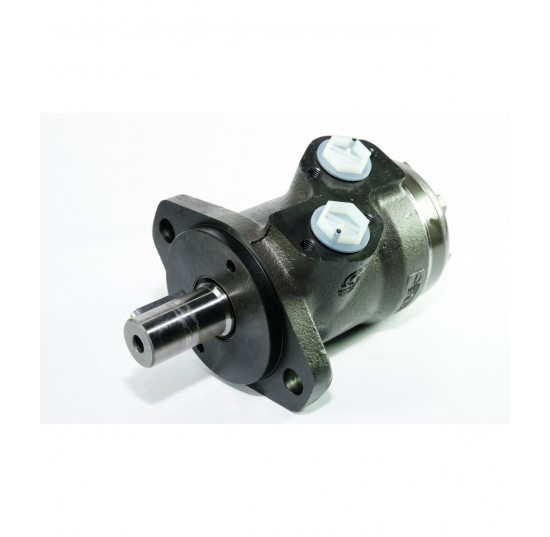

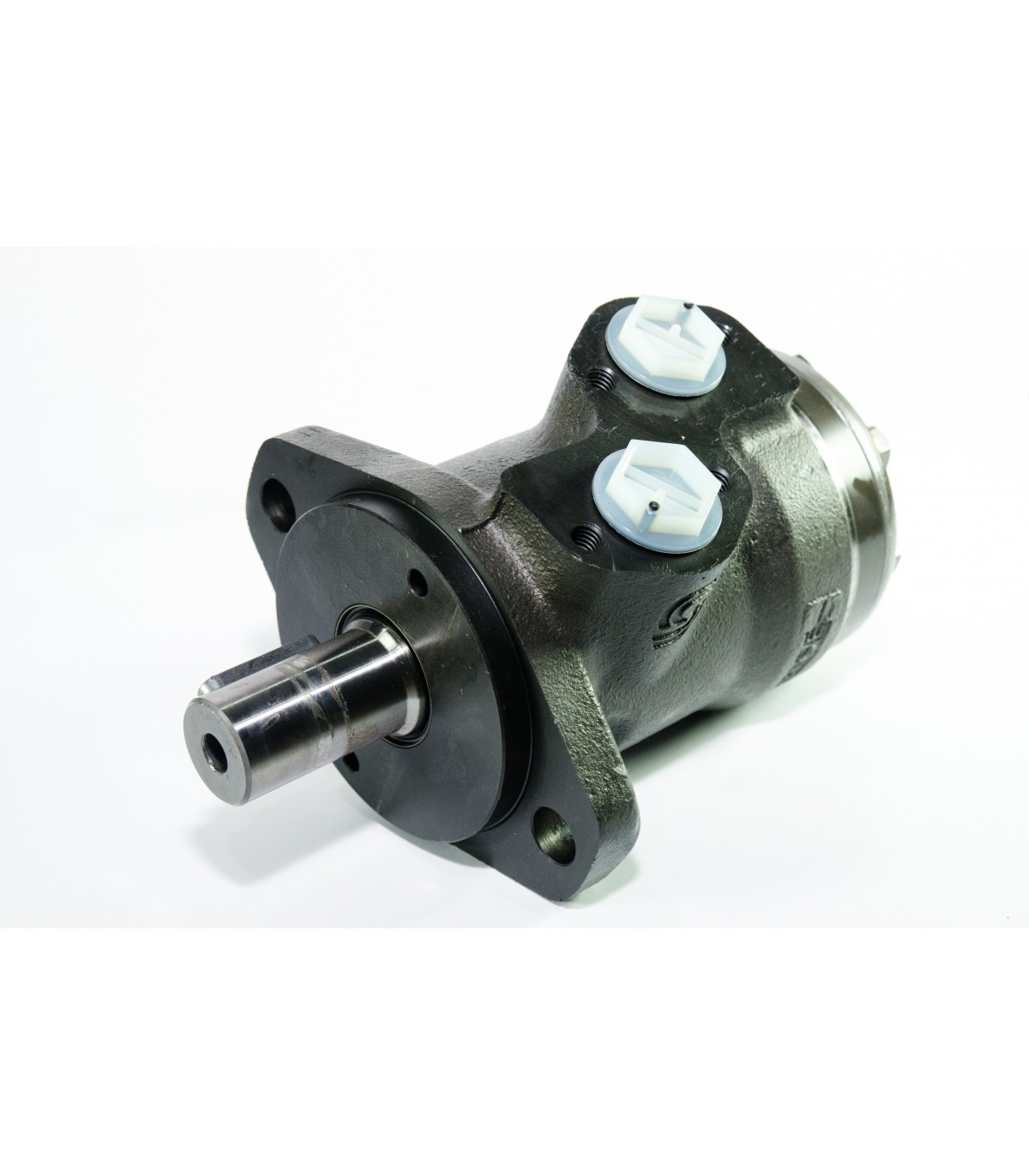

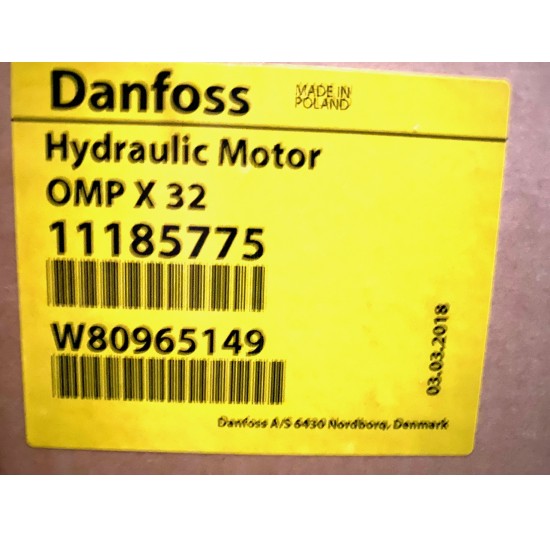

Orbital Motor OMP X 32 - 11185775

11185775

OMP X 32 Low Speed High Torque motor, Geometric Displacement 32.0cm³

SGD$ 373.86

Qty

The rollerless gear rim design is suitable for long operating periods at moderate pressures, or short operating periods at high pressures. Some of the common medium duty applications include auger/winch/conveyor drive with planetary gearbox, sweeper brush, slewing application for crane, small road-roller propel, etc

Cylindrical output shaft 25mm with 1/2 BSP side ports
Parallel key A8 x 7 x 32 DIN 6885 682L8035

Accessories (not included): Seal Kit 11188319

Unit weight 5.6kg
Packing size 29 x 14 x 11 cm
Maximum Continuous Output Speed 1560 rpm
Maximum Intermittent Output Speed 1720 rpm
Maximum Continuous Output Torque 61Nm
Maximum Intermittent Output Torque 86Nm
