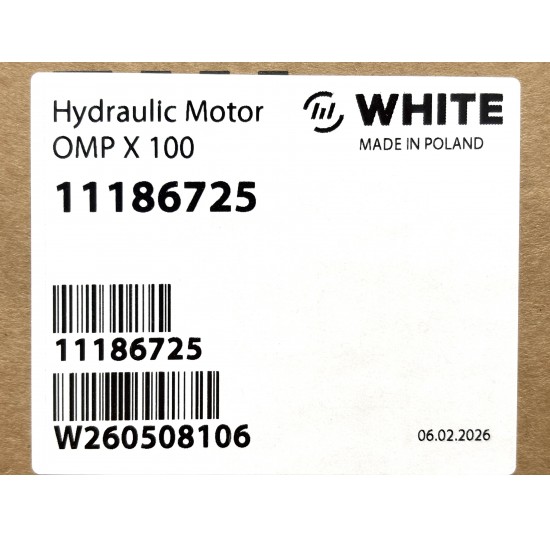

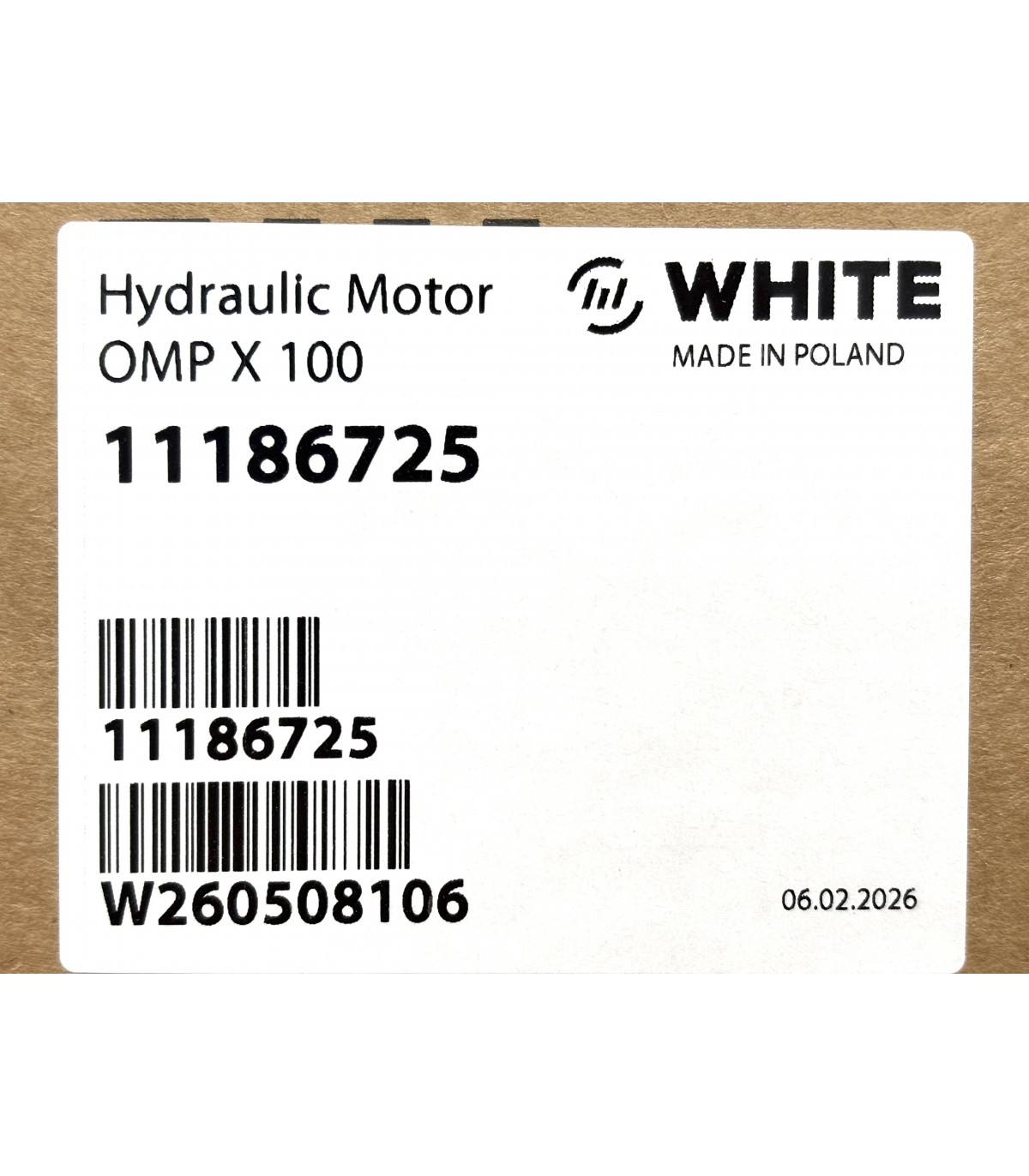

Orbital Motor OMP x 100 - 11186725

11186725

OMP X 100 Low Speed High Torque motor, Geometric Displacement 97.3cm³

SGD$ 386.48

Qty

The rollerless gear rim design is suitable for long operating periods at moderate pressures, or short operating periods at high pressures. Some of the common medium duty applications include auger/winch/conveyor drive with planetary gearbox, sweeper brush, slewing application for crane, small road-roller propel, etc

Cylindrical output shaft 25mm with 1/2 BSP side ports
Parallel key A8 x 7 x 32 DIN 6885 682L8035

Accessories (not included): Seal Kit 11188319

Unit weight 6.4kg
Packing size 29 x 14 x 11 cm
Maximum Continuous Output Speed 615 rpm
Maximum Intermittent Output Speed 770 rpm
Maximum Continuous Output Torque 210Nm
Maximum Intermittent Output Torque 260Nm
