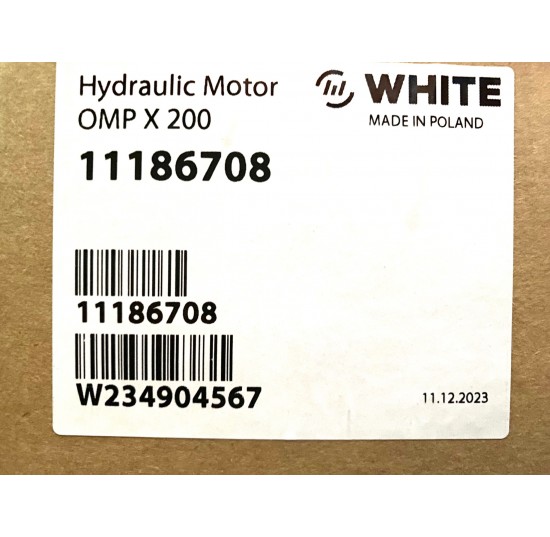

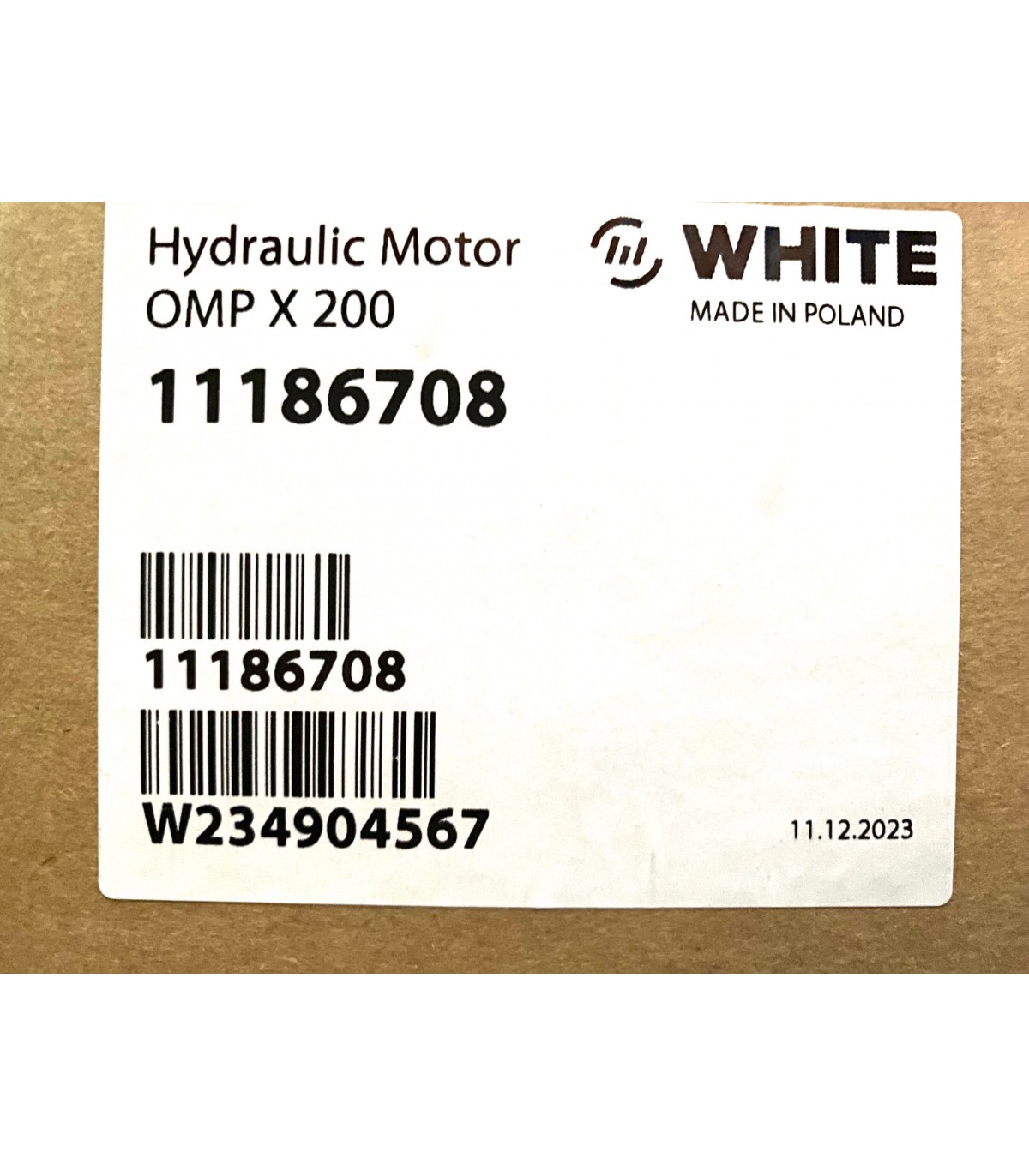

OMP X 200 Low Speed High Torque motor, Geometric Displacement 194.6 cm³
This product is no longer in stock
Warning: Last items in stock!
The rollerless gear rim design is suitable for long operating periods at moderate pressures, or short operating periods at high pressures. Some of the common medium duty applications include auger/winch/conveyor drive with planetary gearbox, sweeper brush, slewing application for crane, small road-roller propel, etc
Cylindrical output shaft 25mm with 1/2 BSP side ports
Parallel key A8 x 7 x 32 DIN 6885 682L8035
Accessories (not included): Seal Kit 11188319
|Packing size||29 x 14 x 11 cm|
|Maximum Continuous Output Speed||310 rpm|
|Maximum Intermittent Output Speed||385 rpm|
|Maximum Continuous Output Torque||340Nm|
|Maximum Intermittent Output Torque||450Nm|
