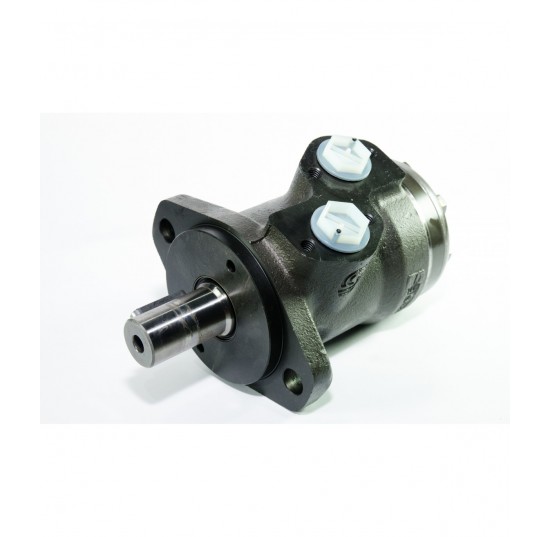

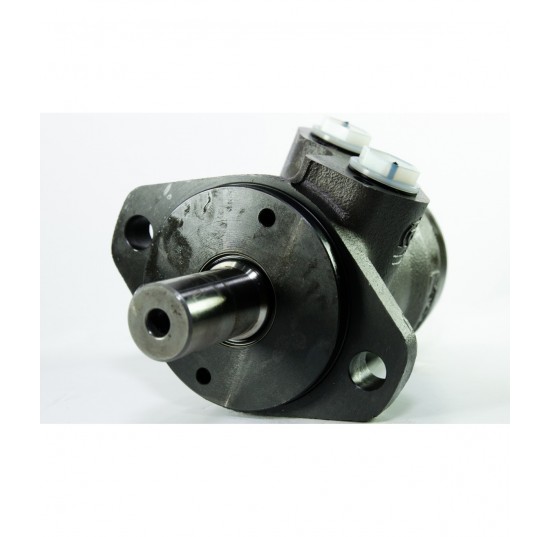

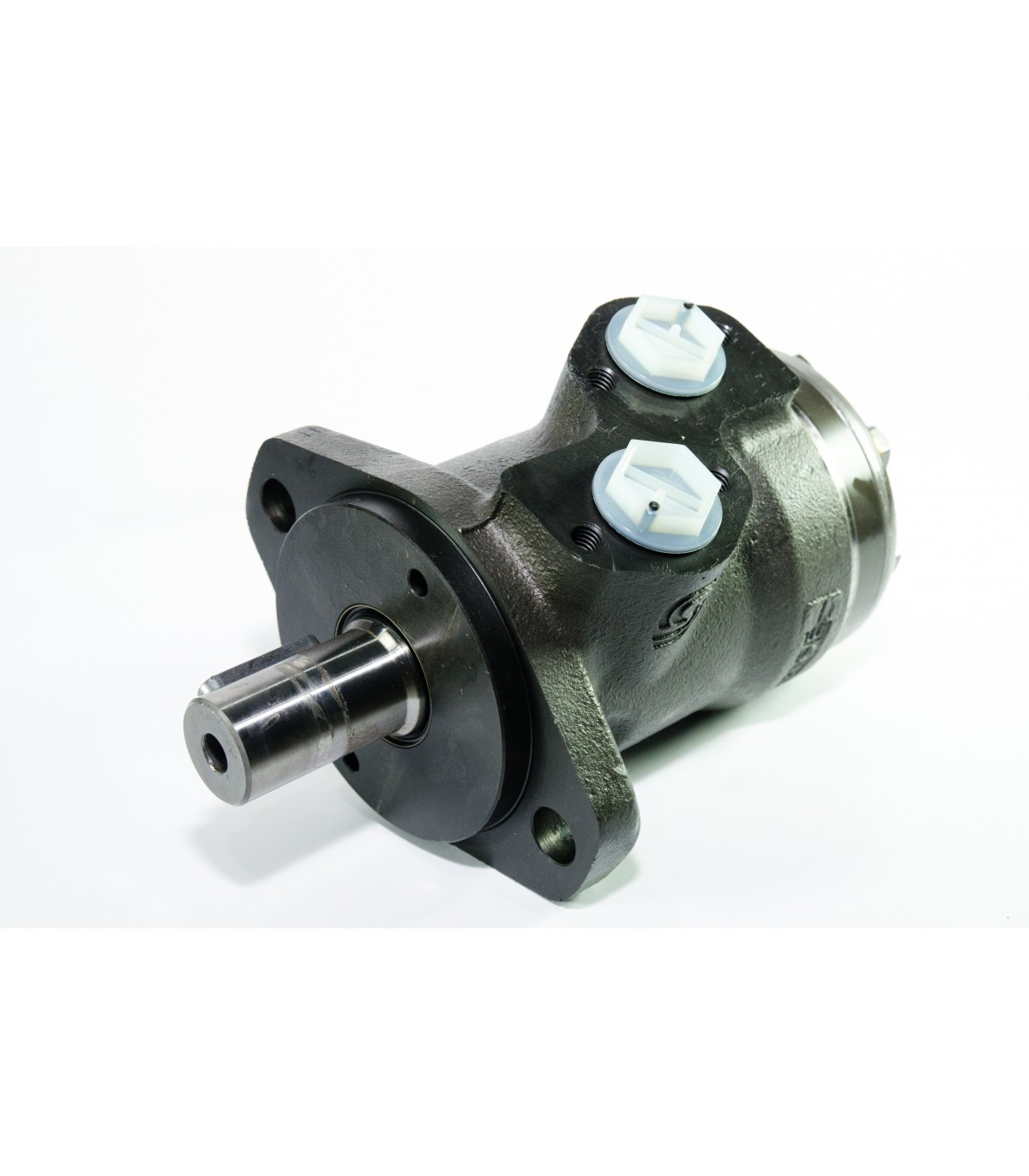

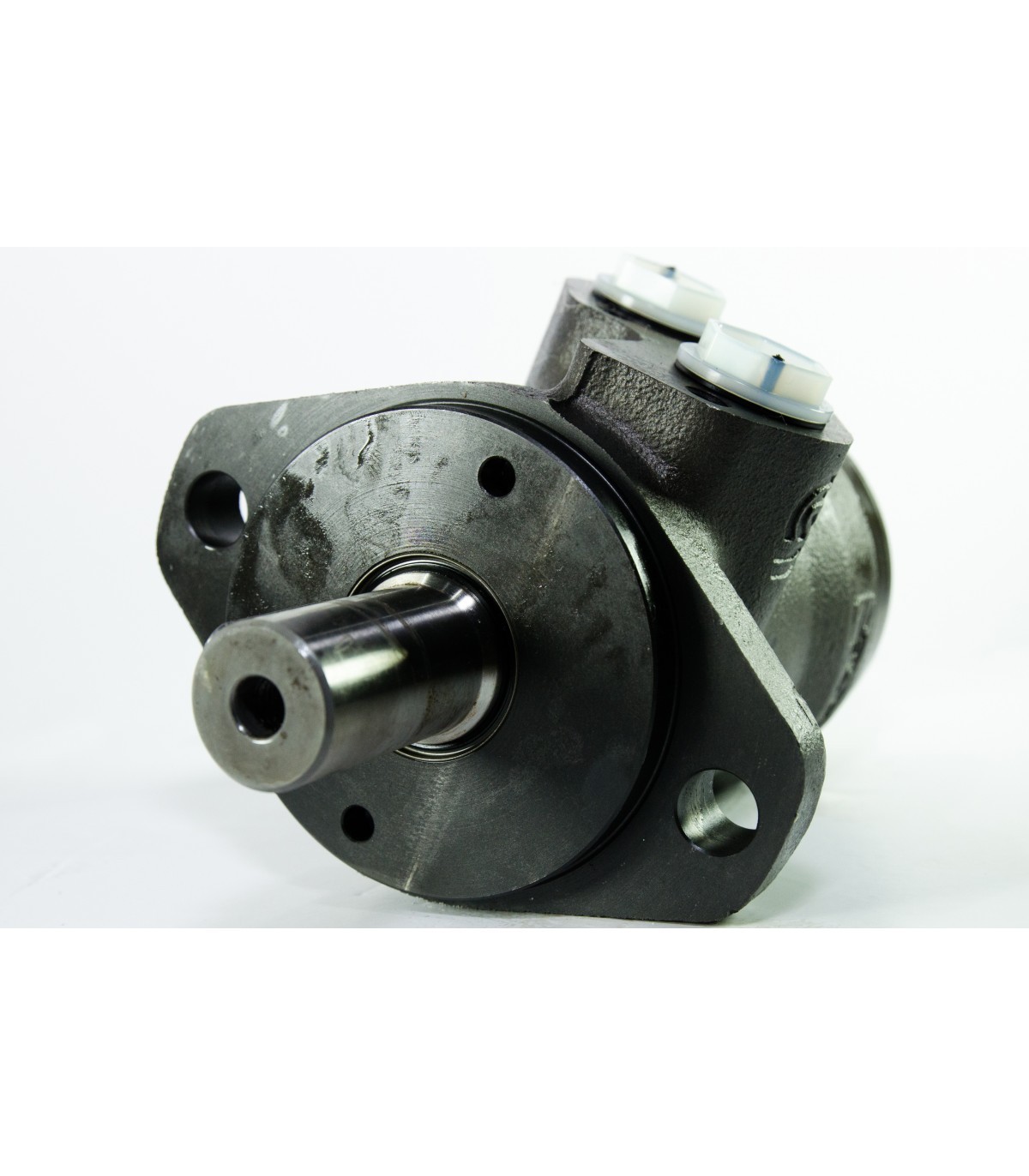

OMP 160 Low Speed High Torque motor, Geometric Displacement 194.6 cm³
Warning: Last items in stock!
The rollerless gear rim design is suitable for long operating periods at moderate pressures, or short operating periods at high pressures. Some of the common medium duty applications include auger/winch/conveyor drive with planetary gearbox, sweeper brush, slewing application for crane, small road-roller propel, etc
Cylindrical output shaft 1" with 1/2 BSP side ports
Parallel key 1/4x1/4x1-1/4" B.S. 46 682L8036
Accessories (not included):
1. Seal Kit 151-1286
|Packing size||29 x 14 x 11 cm|
|Maximum Continuous Output Speed||385 rpm|
|Maximum Intermittent Output Speed||480 rpm|
|Maximum Continuous Output Torque||300Nm|
|Maximum Intermittent Output Torque||370Nm|
