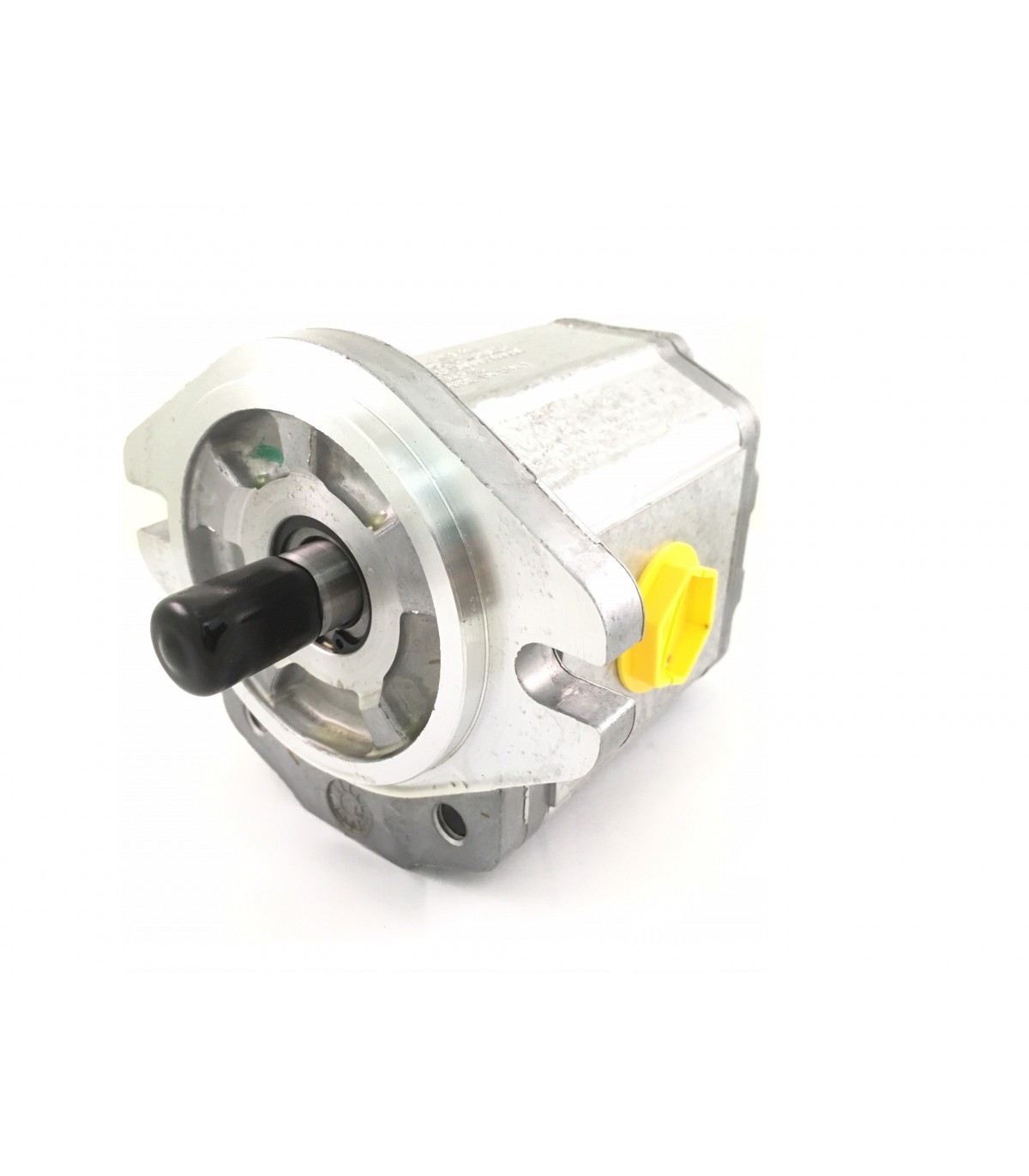

Gear Motor 121.20.043.00 - SNM2NN/11.0

TurollaOCG Gear Motors is a range of peak performance fixed displacement hydraulic motors available in three different frame sizes: Group 1, Group 2 and Group 3, all as uni- and bidirectional version.

Constructed of a high strength extruded aluminum body with aluminum rear cover and aluminum front flange, all motors are balanced for exceptional efficiency and designed to ensure an excellent starting torque and, in the bidirectional version, to guarantee the ability to work with high back pressure and extremely low system pressure.

• - wide range of displacement from 6.0 to 25.0 cc/rev
• - continuous pressure rating up to 250 bar
• - speed up to 4000 rpm
• - SAE, DIN & European standard mounting flanges & shaft
• - compact, lightweight & quiet operation

Accessories (not included):
1. Seal Kit 221.20.004.0k
