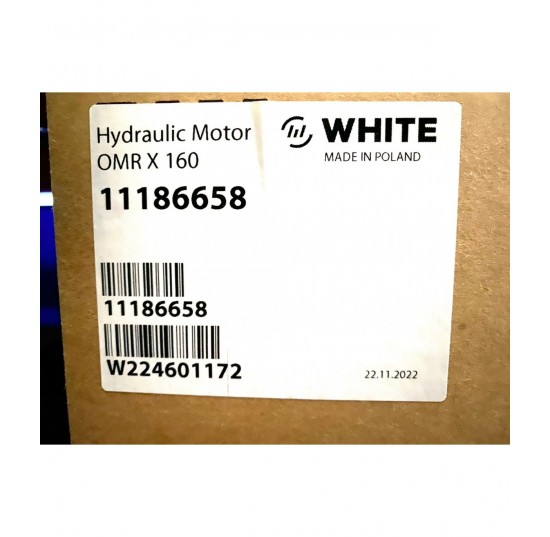

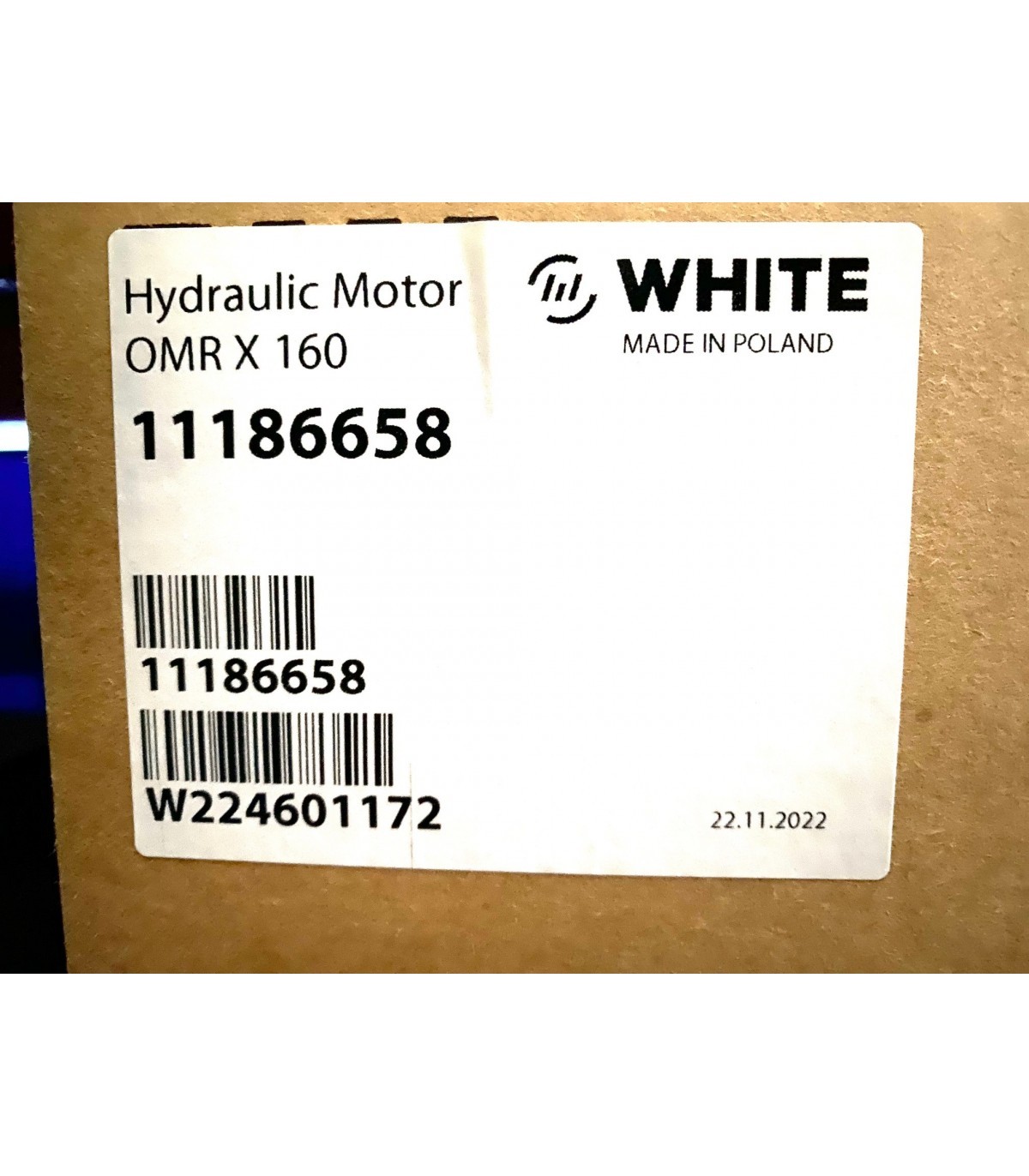

Orbital Motor OMR x 160 - 11186658

Product Code:
11186658

OMR X 160 Low Speed High Torque motor, Geometric Displacement 159.6 cm3

Rebrand as White, acquired from Danfoss Group in June 2021

Read moreShow less
Manufacturer:
SGD$485.11 (tax excl.)
OUT OF STOCK
More Info

The rollers in the gear rim reduce local stress, spread the tooth load over their projected area and reduce the tangential reaction forces on the inner gear reducing friction to a minimum. This gives long operating life and better efficiency even at continuous high pressures. Gearwheel sets with rollers are recommended for operation with thin oil and for applications having continually reversing loads. Some of the common medium duty applications include auger/winch/conveyor drive with planetary gearbox, sweeper brush, slewing application for crane, small road-roller propel, etc
Cylindrical output shaft 25mm with 1/2 BSP side ports
Parallel key A8 x 7 x 32 DIN 6885 682L8035

Accessories (not included):
1. Seal Kit 11188319

Read moreShow less
Data Sheet
11186658

Data sheet

Unit weight
7.5kg
Packing size
29 x 14 x 11 cm
Maximum Continuous Output Speed
385 rpm
Maximum Intermittent Output Speed
480 rpm
Maximum Continuous Output Torque
340Nm
Maximum Intermittent Output Torque
435Nm
